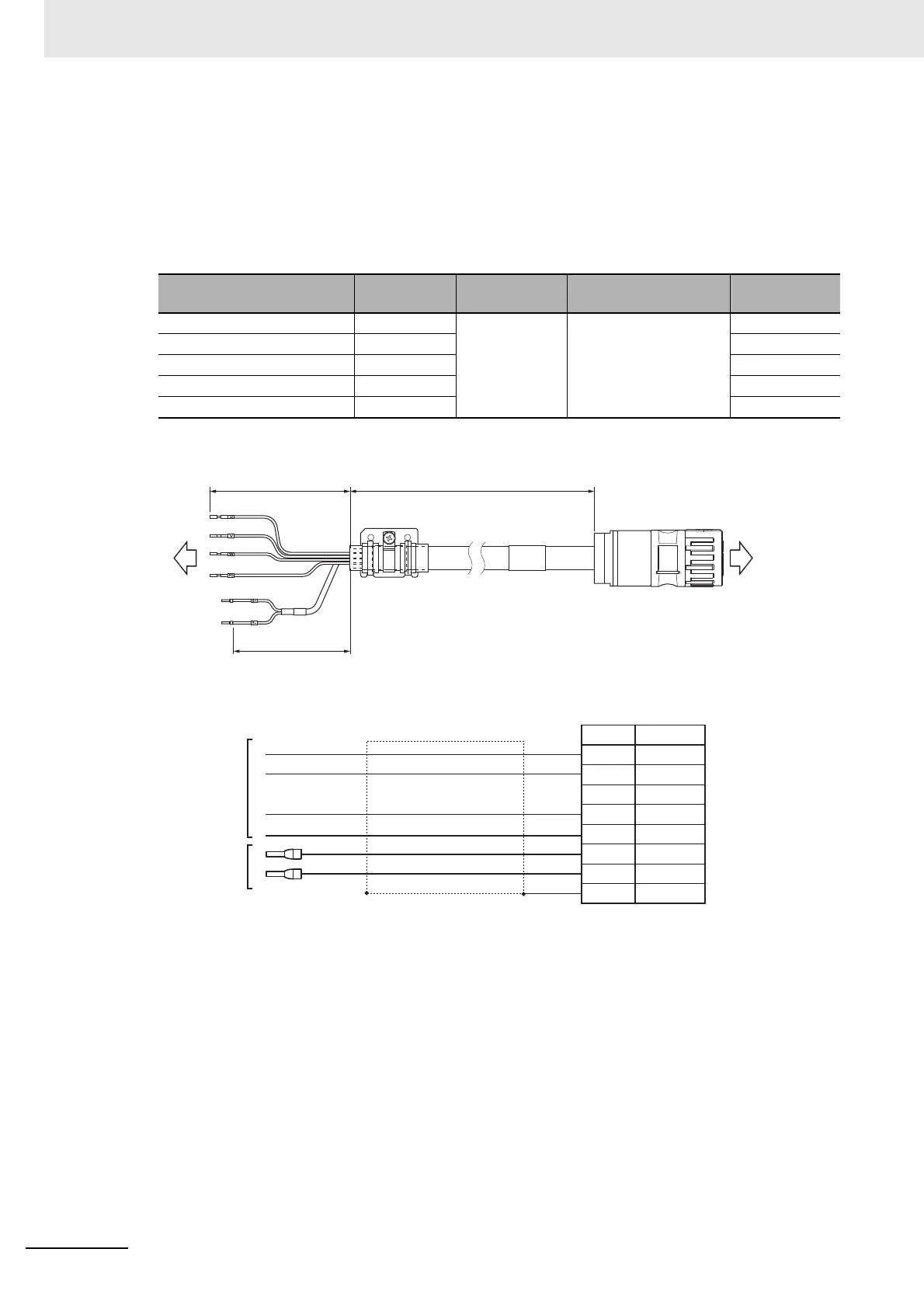

3 Specifications
3 - 110
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
R88A-CA1KBF
Applicable Servomotors
200 V:
1,500-r/min Servomotors of 7.5 kW, 11 kW, 15 kW
Cable types
Connection configuration and external dimensions [mm]
Wiring
*1. Connect the cable to the servo drive enclosure using the shield clamp.
*2. PE and shell are set in the connectors at Servomotor’s side.
Model Length [L]
Outer diameter
of sheath
Minimum bending
radius
Weight
R88A-CA1K003BF 3 m 23.2 dia. 232 mm Approx. 4.8 kg
R88A-CA1K005BF 5 m Approx. 6.7 kg
R88A-CA1K010BF 10 m Approx. 12.5 kg
R88A-CA1K015BF 15 m Approx. 18.7 kg
R88A-CA1K020BF 20 m Approx. 24.9 kg
L380
320
Ferrule 966067-2
(TE)
Servomotor
side
R88M-1
Servo Drive
side
R88D-1SN
Blue
Red
White
Green/Yellow
Servo Drive side
Semi-strip
Cable
Servomotor side
Contact
Name
Phase U
Phase V
Phase W
Brake
Brake
Shield
Connector
Servomotor side connector
Power: 1623381
Brake: 1623604
1623328
1
2
Symbol
A
B
C
D
NC
FG
M40 Series (Phoenix Contact)
*1
PE
*2
Shell
*2
Black
Black
Ferrule
966067-2
(TE)
16Sq × 4C UL758
AWG21 × 2C UL758
