Items to Check After Unpacking
32
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
The model, rating and serial number of the 1S-series Servomotor are given on the product nameplate.
This product comes with an instruction manual.
Servomotor

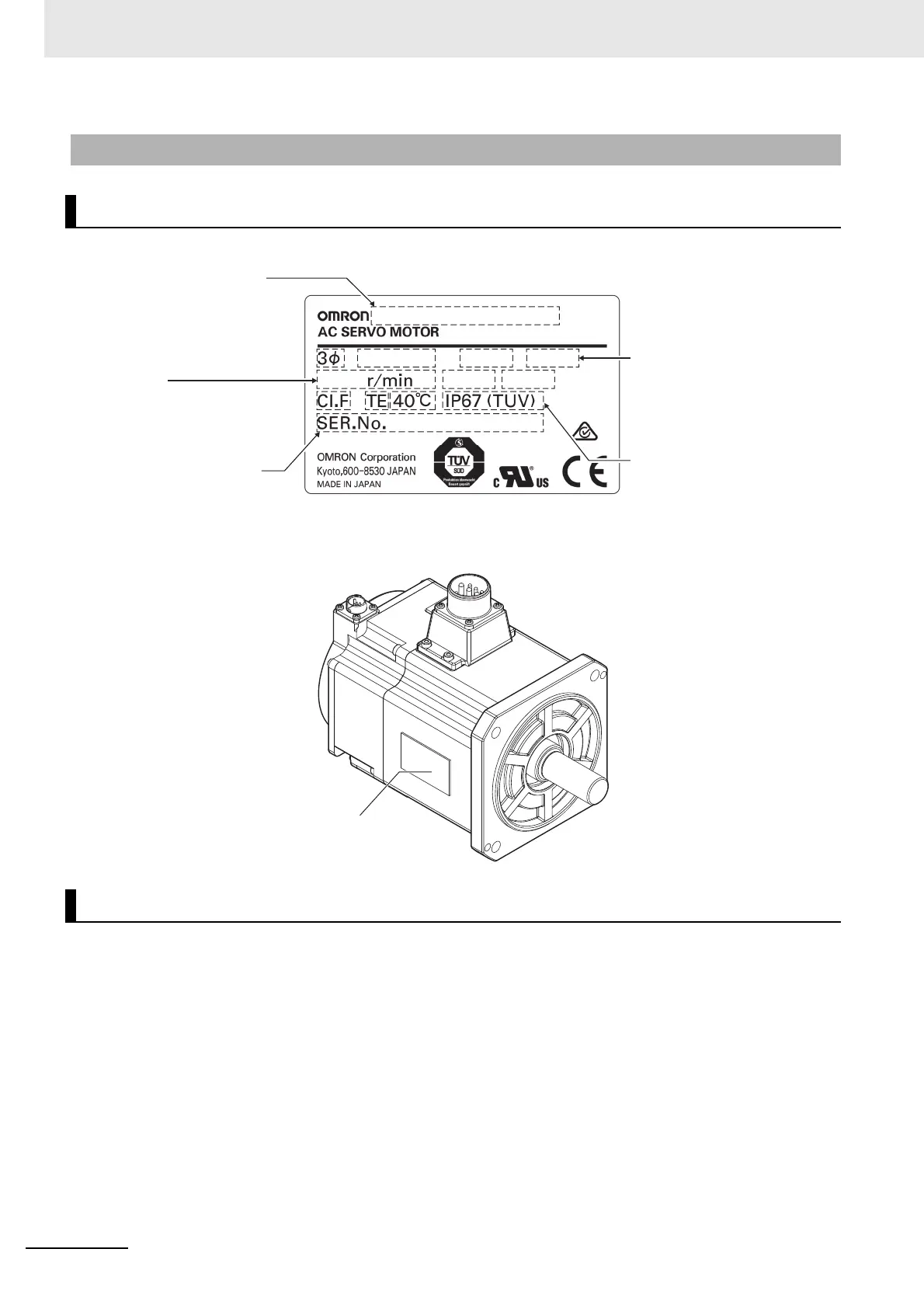

Nameplate of Servomotor
Accessories of Servomotor
R88M-1M2K020T-BOS2
10150700003
200VAC 13.3 A
250 Hz
10kg
2.0 kW
2,000
Nameplate display location
From the left,
Rated rotation speed
(Example: 2,000 r/min)
Rated frequency (Example: 250 Hz)
Motor weight (Example: 10 kg)
*1
*1. The weight is not given for the Servomotor with a flange size of
80 x 80 or less.
From the left,
Number of phases (Example: 3)
Rated voltage
(Example: 200 VAC)
Rated current
(Example: 13.3 A)
Rated output
(Example: 2.0 kW)
From the left,
Insulation class (Example: F)
Totally enclosed protection
type motor (Example: TE)
Operating ambient
temperature (Example: 40°C)
Protective structure
(Example: IP67)
Motor model
Serial number

Omron R88D-1SN ECT Series Specifications

General

Feedback	Incremental encoder, Absolute encoder
Position Control	Yes
Speed Control	Yes
Torque Control	Yes
Communication Interface	EtherCAT
Power Supply Voltage	200 to 240 VAC
Output Power	0.1 to 1.5 kW
Input Voltage Range	170 to 264 VAC
Control Method	Sine-wave PWM control
Main Circuit Power Supply	200-240 VAC
Applicable Motor Capacity	0.1 to 1.5 kW
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder Error
Ambient Operating Temperature	0 to 55°C
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
Shock Resistance	98 m/s2
Weight	Varies by model
