Measurements and Results
R&S
®
FSVA3000/ R&S
®
FSV3000
168User Manual 1178.8520.02 ─ 01

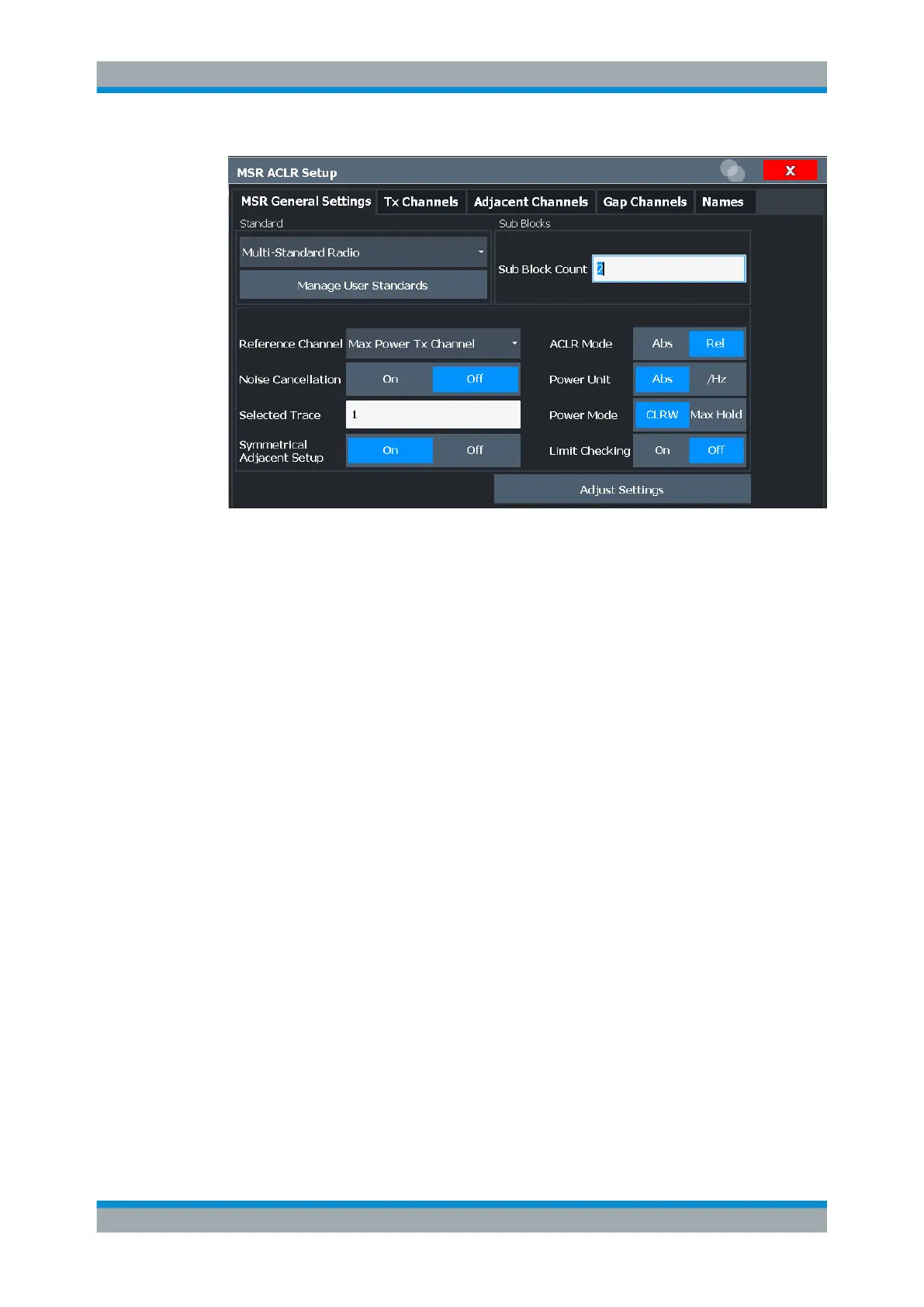

Standard .....................................................................................................................168
└ Predefined Standards .................................................................................. 168
└ User Standards ............................................................................................169
Number of Sub Blocks ............................................................................................... 169
Reference Channel .................................................................................................... 170
Noise Cancellation ..................................................................................................... 170
Selected Trace ........................................................................................................... 170
Absolute and Relative Values (ACLR Mode) ............................................................. 170
Channel power level and density ( Power Unit )......................................................... 171
Power Mode ...............................................................................................................171
Optimized Settings ( Adjust Settings ).........................................................................171
Symmetrical Adjacent Setup ......................................................................................171
Limit Checking ............................................................................................................172
Standard
The main measurement settings can be stored as a standard file. When such a stan-
dard is loaded, the required channel and general measurement settings are automati-
cally set on the R&S FSV/A. However, the settings can be changed. Predefined stand-
ards are available for standard measurements, but standard files with user-defined
configurations can also be created.
Predefined Standards ← Standard
Predefined standards contain the main measurement settings for standard measure-
ments. When such a standard is loaded, the required channel settings are automati-
cally set on the R&S FSV/A. However, the settings can be changed.
The predefined standards contain the following settings:
●
Channel bandwidths
●
Channel spacings
●
Detector
●
Trace Average setting
●
Resolution Bandwidth (RBW)
Channel Power and Adjacent-Channel Power (ACLR) Measurement
