Common Analysis and Display Functions
R&S
®
FSVA3000/ R&S
®
FSV3000
469User Manual 1178.8520.02 ─ 01

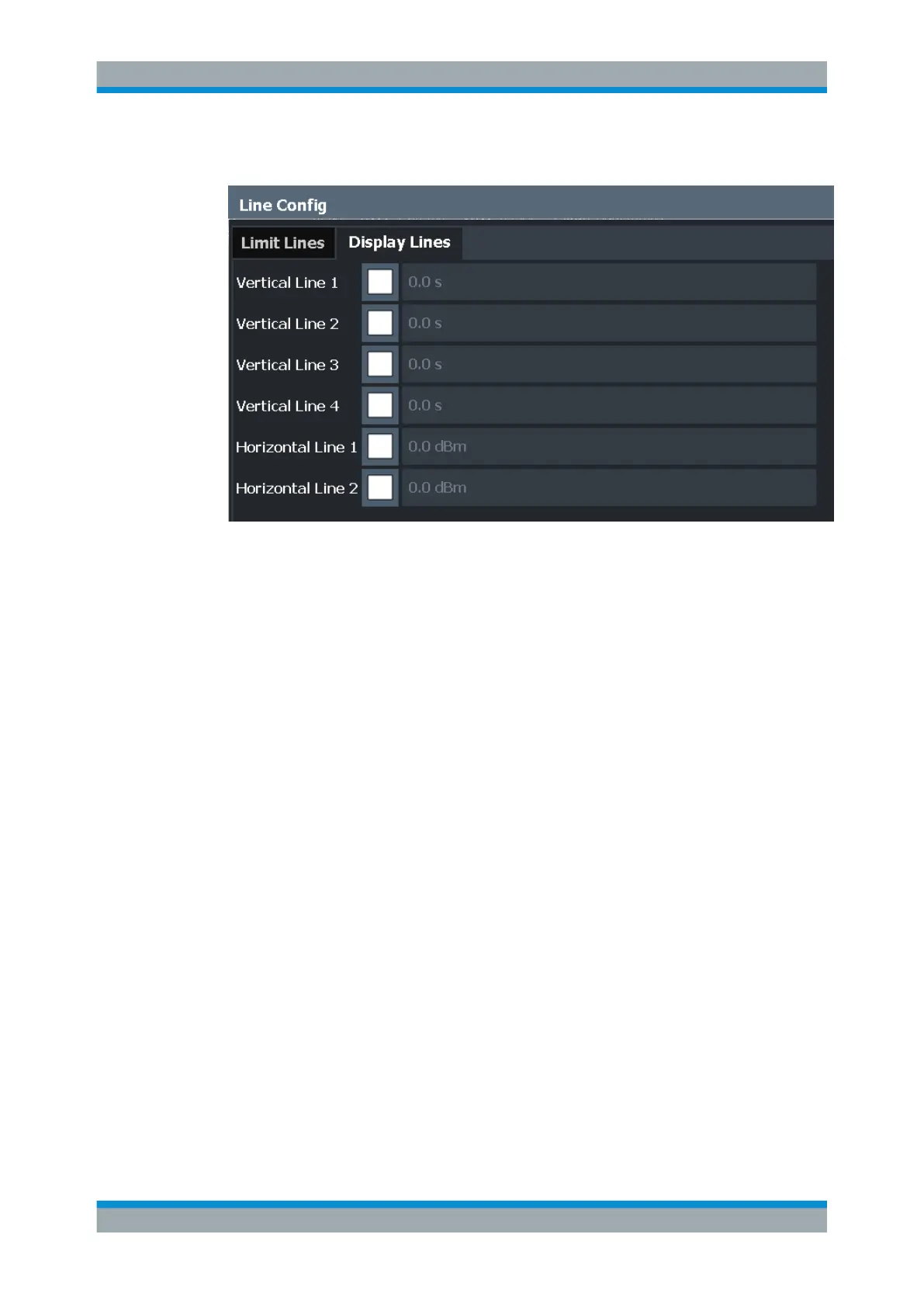

Four vertical and two horizontal lines can be defined in the display.
Vertical Line <x>..........................................................................................................469
Horizontal Line 1 / Horizontal Line 2 .......................................................................... 469
Vertical Line <x>
Activates a vertical display line in the diagram at the specified point of the x-axis,
depending on the scale of the axis.
Remote command:
CALCulate<n>:FLINe<dl> on page 1041
CALCulate<n>:FLINe<dl> on page 1041
CALCulate<n>:TLINe<dl> on page 1042
CALCulate<n>:TLINe<dl> on page 1042
Horizontal Line 1 / Horizontal Line 2
Activates a horizontal display line (H1 or H2) in the diagram at the specified point of the
y-axis.
Remote command:
CALCulate<n>:DLINe<dl> on page 1040
CALCulate<n>:DLINe<dl> on page 1040
9.4.1.3 Defining Display Lines
1. Display lines are configured in the "Lines Config" dialog box. To display this dialog
box, press the [Lines] key and then "Lines Config" .
2. Select the "Display Lines" tab.
3. To define a vertical line:
a) Select "Vertical Line 1" , 2, 3, or 4.
Display and Limit Lines
