Instrument Function

R&S

SMB100A

161Operating Manual 1407.0806.32 ─ 21

"Fill With Sen-

sor"

Calls the menu to activate the filling of the user correction list with

level values acquired by the selected power sensor (see "Filling the

Correction List with Power Sensor Measurement Data"

on page 164).

"Delete Row"

Deletes the marked row.

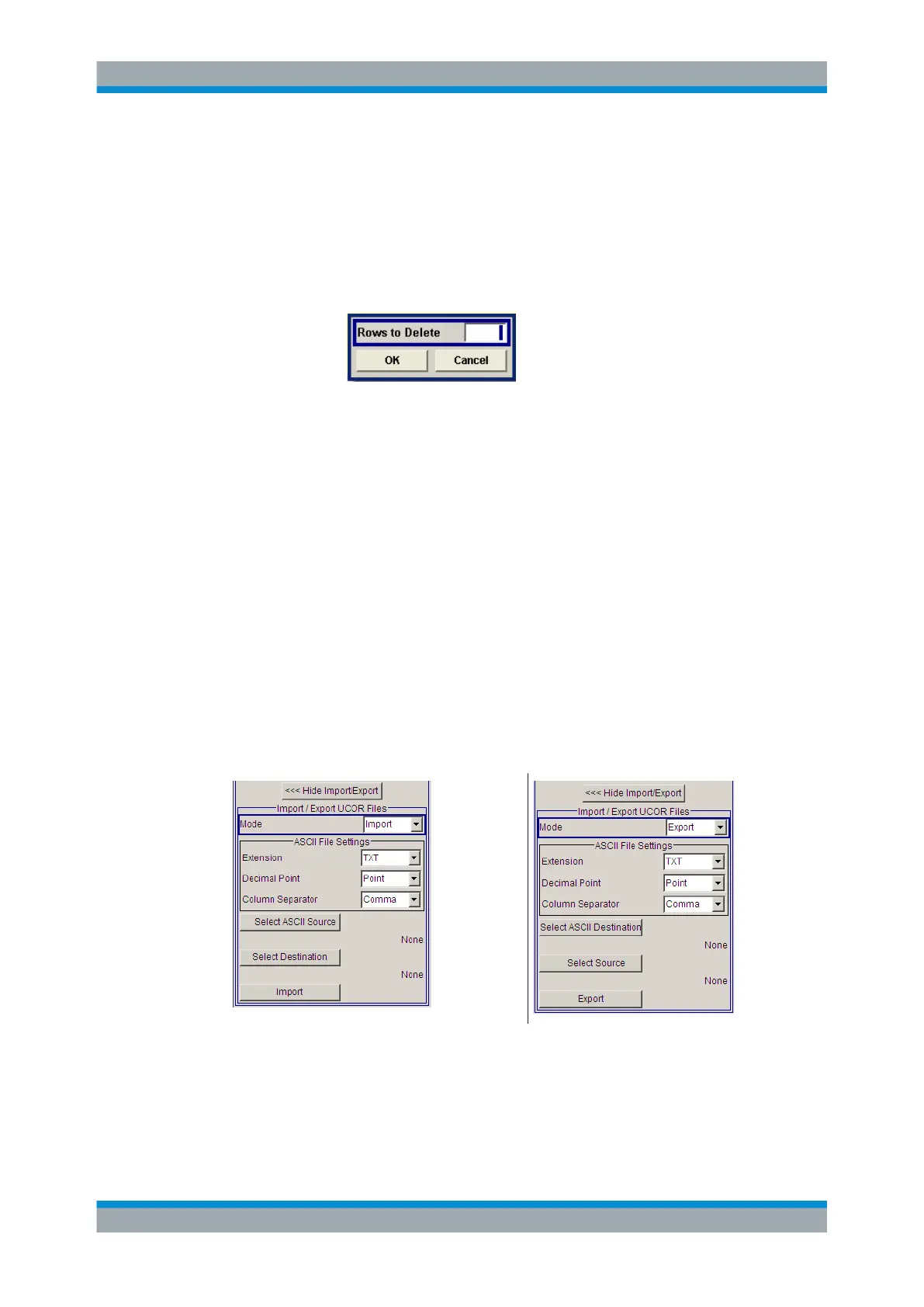

"Delete

Range..."

Allows to delete any number of rows starting with the marked row.

The number of rows to be deleted can be defined in an entry window.

"Save"

The list is saved under its current name.

Remote command:

[:SOURce<hw>]:CORRection:CSET[:SELect] on page 335

[:SOURce<hw>]:CORRection:CSET:DATA:FREQuency on page 330

[:SOURce<hw>]:CORRection:CSET:DATA:POWer on page 330

Import/Export

User correction list can be imported from externally created files or exported into text or

CSV-files. The import/export settings are available after clicking the "Import/Export"

button.

Import/Export >>>

Expands the menu with the area for import and export of user correction files.

Externally edited Excel tables with any number of frequency/level value pairs can be

imported as text or CSV-files and used for user correction.

Conversely, you can also export internally created user correction lists as text or CSV-

files.

Mode - User Correction

Selects if user correction lists should be imported or exported. The settings offered

depend on the selected mode.

Remote command:

[:SOURce<hw>]:CORRection:DEXChange:MODE on page 334

RF Block
