Instrument Function

R&S

SMB100A

232Operating Manual 1407.0806.32 ─ 21

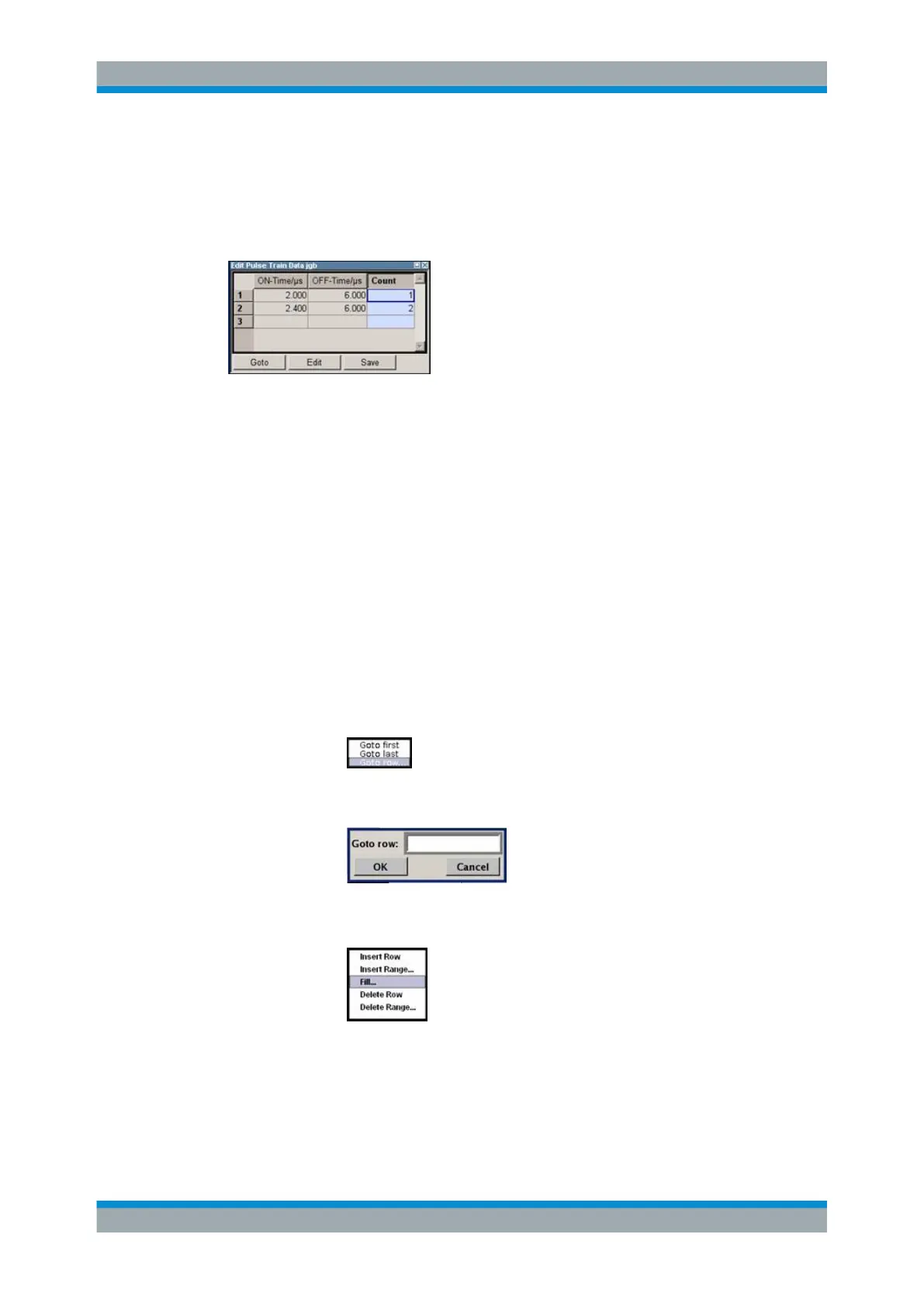

Edit Pulse Train Data

Opens an editor allowing you to enter the "On-Time / OFF-Time" value pairs in a table.

In addition, you can assign a repetition rate to each pair. Based on these values, the

instrument then generates the pulse train signal. You can enter any number of value

pairs and save your list in a file. The file name is displayed in the header of the dialog.

"ON-Time/μs"

Determines the length of the respective pulse (signal is high).

Remote command:

[:SOURce<hw>]:PULM:TRAin:ONTime on page 396

"OFF-Time/μs"

Determines the time length, the signal level of the pulse remains low.

Remote command:

[:SOURce<hw>]:PULM:TRAin:OFFTime on page 395

"Count"

Sets the number of repetitions for each pulse ("ON-Time/μs"/"OFF-

Time/μs" value pair).

Tip: If you set "Count = 0", the corresponding value pair is ignored in

the pulse sequence. With this function you can skip value pairs indi-

vidually, without deleting them from the table. This allows re-enabling

a value pair by entering a number unequal to zero.

Remote command:

[:SOURce<hw>]:PULM:TRAin:REPetition on page 397

"Goto"

Selects row for editing.

If Goto row is selected, a window opens for entering the requested

row.

(it is not possible to change individual positions of the list)

"Edit"

Opens a menu containing editing functions.

"Insert Row"

Inserts a new row before the marked row.

Modulation Generator and LF Output
