Instrument Function

R&S

SMB100A

231Operating Manual 1407.0806.32 ─ 21

7. In the "Pulse Modulation" dialog, select "Edit Pulse Train Data... > Edit" to define

the on and off time value pairs and the repetition factor for each value pair.

8. When completed, save the file.

9. Starting in the block diagram, perform the following steps to activate signal genera-

tion:

a) Select "Mod Gen > config... > Pulse Generator > Video/Sync Signal State >

On".

b) Select "Modulation > config... > Pulse Modulation > State > On".

c) Activate RF signal generation in the "RF" block.

The R&S SMB generates an RF pulse sequence signal according to the values

specified in the file.

Pulse Train Data – Pulse Generator

Opens the "File Select" dialog for selecting and creating a pulse train file, and provides

access to the "File Manager".

Remote command:

[:SOURce<hw>]:PULM:TRAin:CATalog? on page 394

[:SOURce<hw>]:PULM:TRAin:SELect on page 398

[:SOURce<hw>]:PULM:TRAin:DELete on page 394

Edit Pulse Train Data – Pulse Generator

Opens the Pulse Train Dialog.

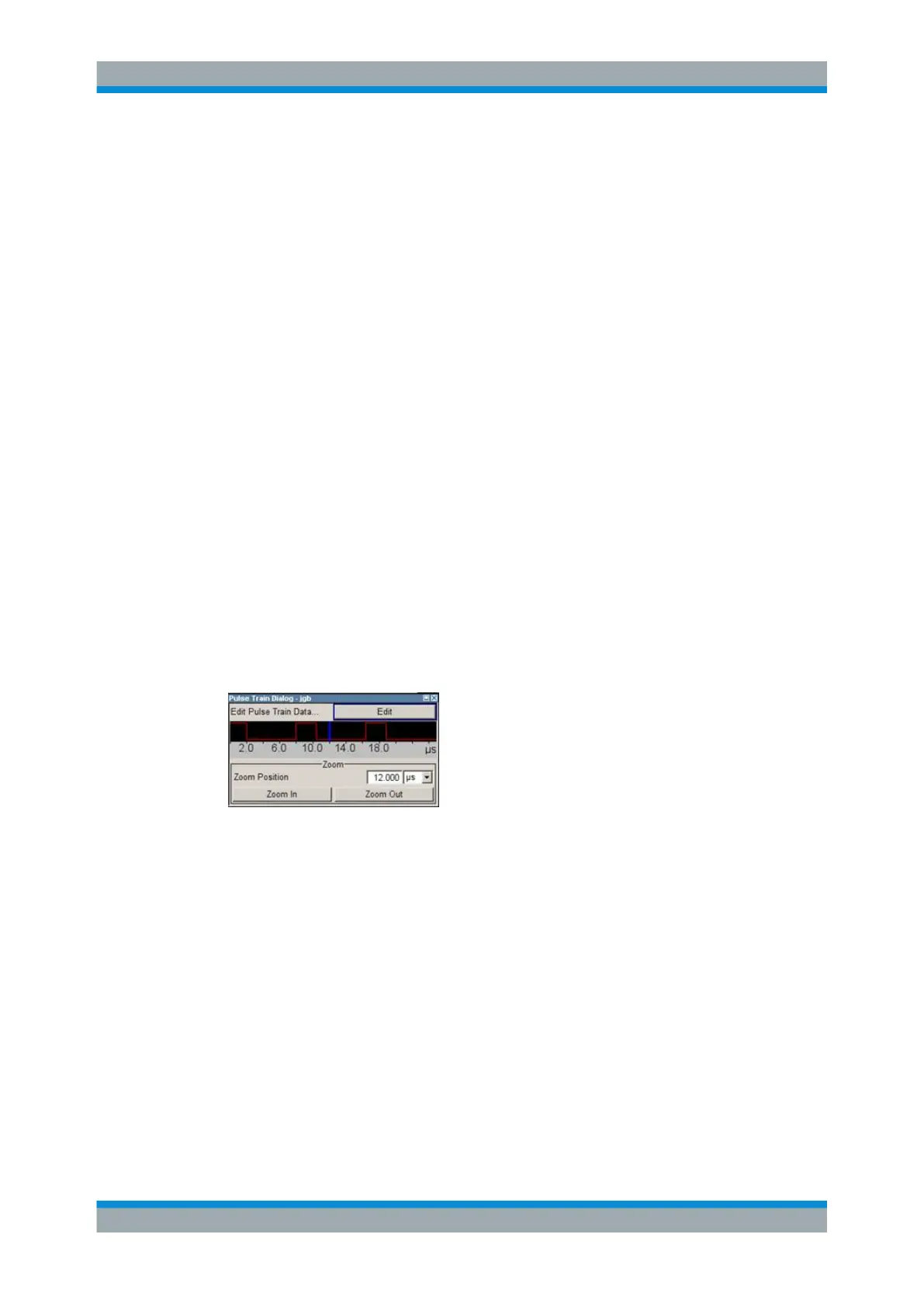

Pulse Train Dialog

Displays the pulse sequence as defined in the file.

"Edit"

Opens the pulse train dialog, see Edit Pulse Train Data. The dialog

graphically represents the pulse train signal and provides access to

the data editor.

"Zoom Position"

Sets the blue marker in the pulse train graph. The marker defines the

center of any zoom in or zoom out action.

"Zoom In / Zoom Out"

Enlarges the diagram by factor 2 per "Zoom In", or scales it down

accordingly when you select "Zoom Out".

Modulation Generator and LF Output
