Ricoh D131 - Opc Drum Removal

Drum Unit
D131/D132/D133 4-40 SM
1. Cleaning pad [A] ( x 1)
4.6.4 OPC DRUM REMOVAL
Remove
 Development unit
p.4-34
 Charge corona unit
p.4-38

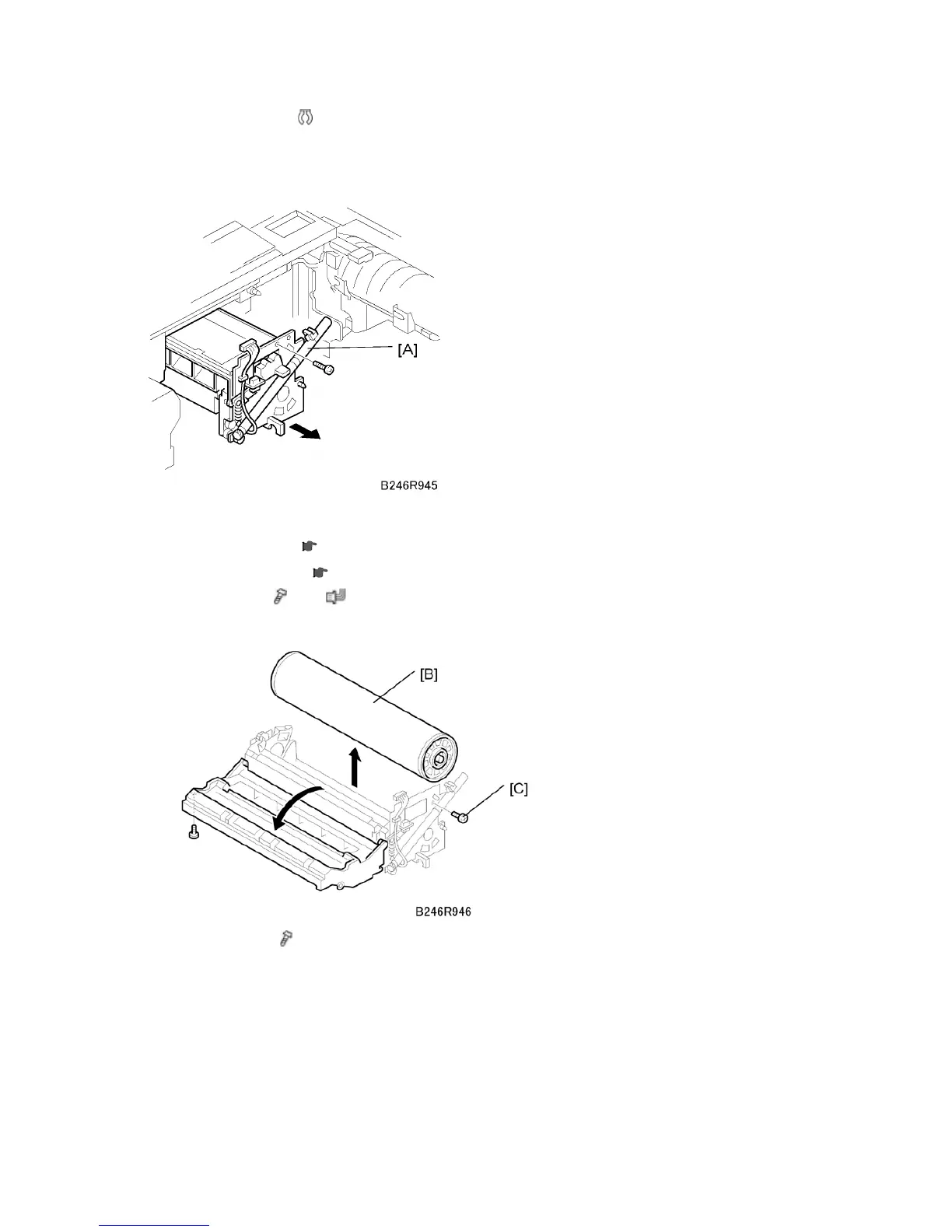

1. Drum unit [A] (
x 1, x 2)
 Grasp the drum unit by the knob to remove it from the machine.
2. OPC drum [B] ( x2).
3. Toner shield glass cover [C] (x1).
4. After replacing the drum, do the following SPs:
 Set SP2001-001 (Charge Roller Bias Adjustment – Applied Voltage for Image
Processing) to the default setting.
 SP2962 (Adjustment of Drum Conditions), only if SP3901 (Auto Process Control) is on.
