Ricoh D131 - Reinstallation

Paper Feed
SM 4-103 D131/D132/D133
Replacement
and
Adjustment
Reinstallation

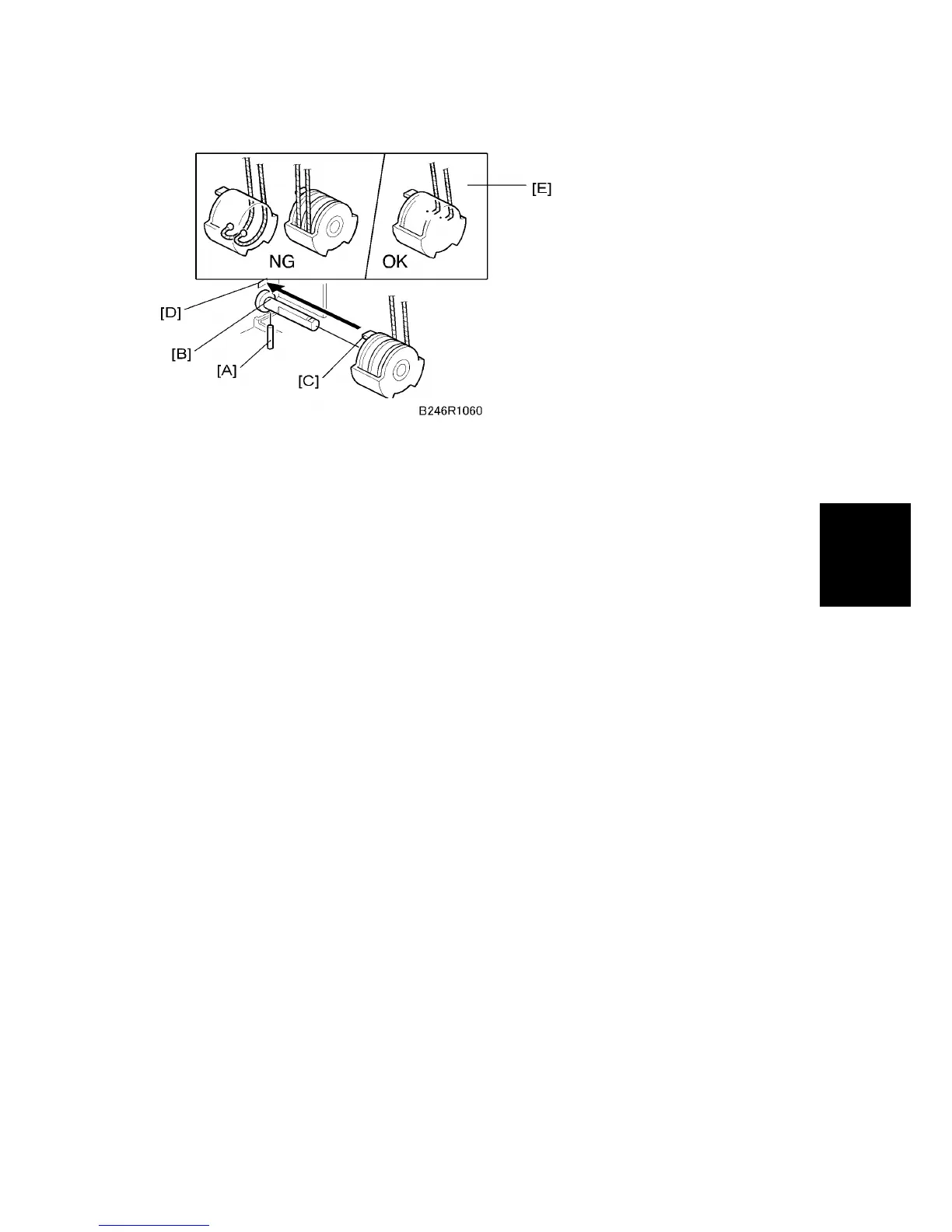

1. Set the positioning pin [A] in the hole [B], and set the projection [C] in the hole [D].
2. Position the wire as shown [E].
3. Do not cross the wires.
