Ricoh D131 - Rear Fence Return Sensor Replacement; Universal Tray

Paper Feed
SM 4-99 D131/D132/D133
Replacement
and
Adjustment
Universal Tray

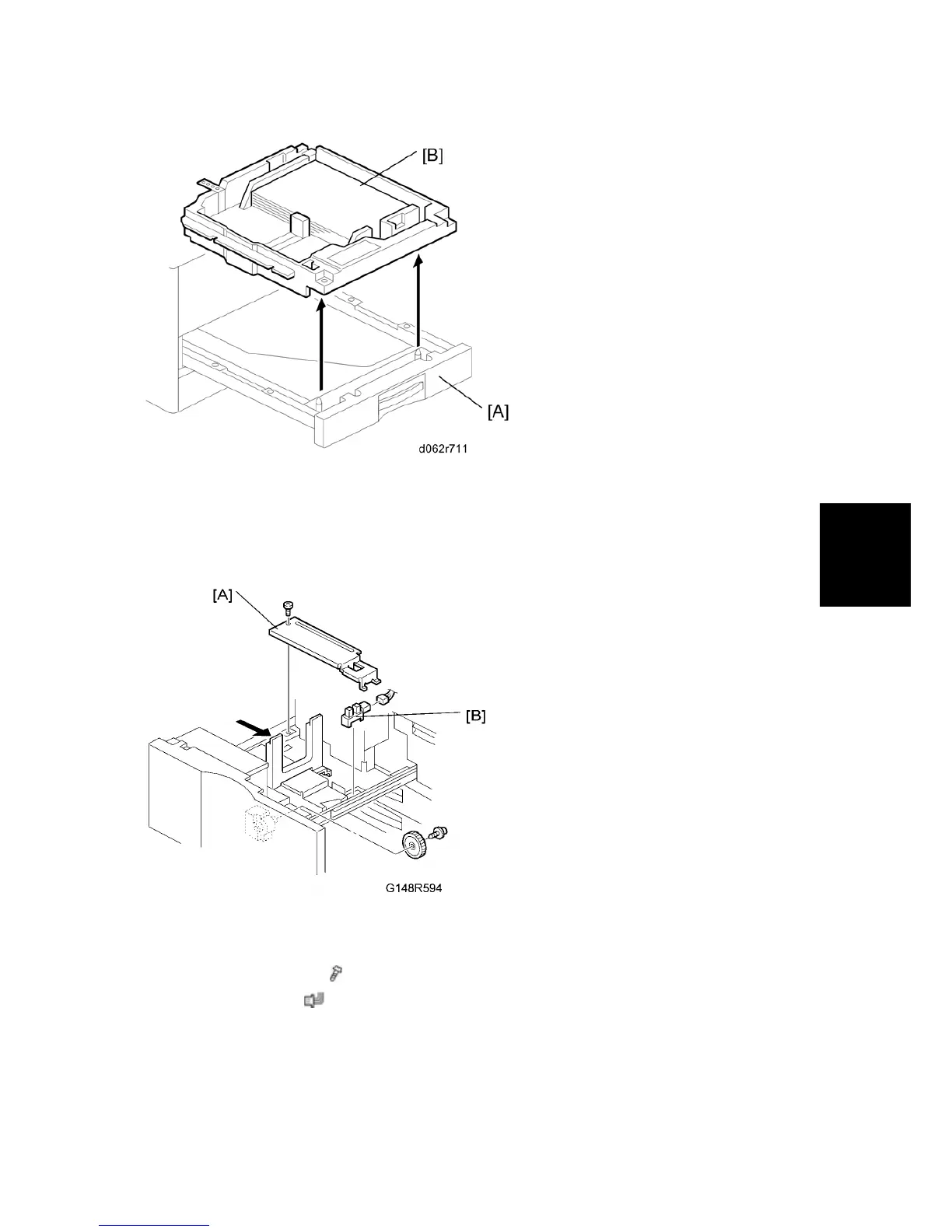

1. Pull tray 2 or tray 3 [A].
2. Lift the tray [B] out of the drawer.
4.11.2 REAR FENCE RETURN SENSOR REPLACEMENT
1. Turn off the machine.
2. Pull out the tandem feed tray.
3. Rear bottom plate [A] (
x 1)
4. Return sensor [B] (
x 1).
