Ricoh D131 - Cis Unit

ADF
SM 4-149 D131/D132/D133
Replacement
and
Adjustment

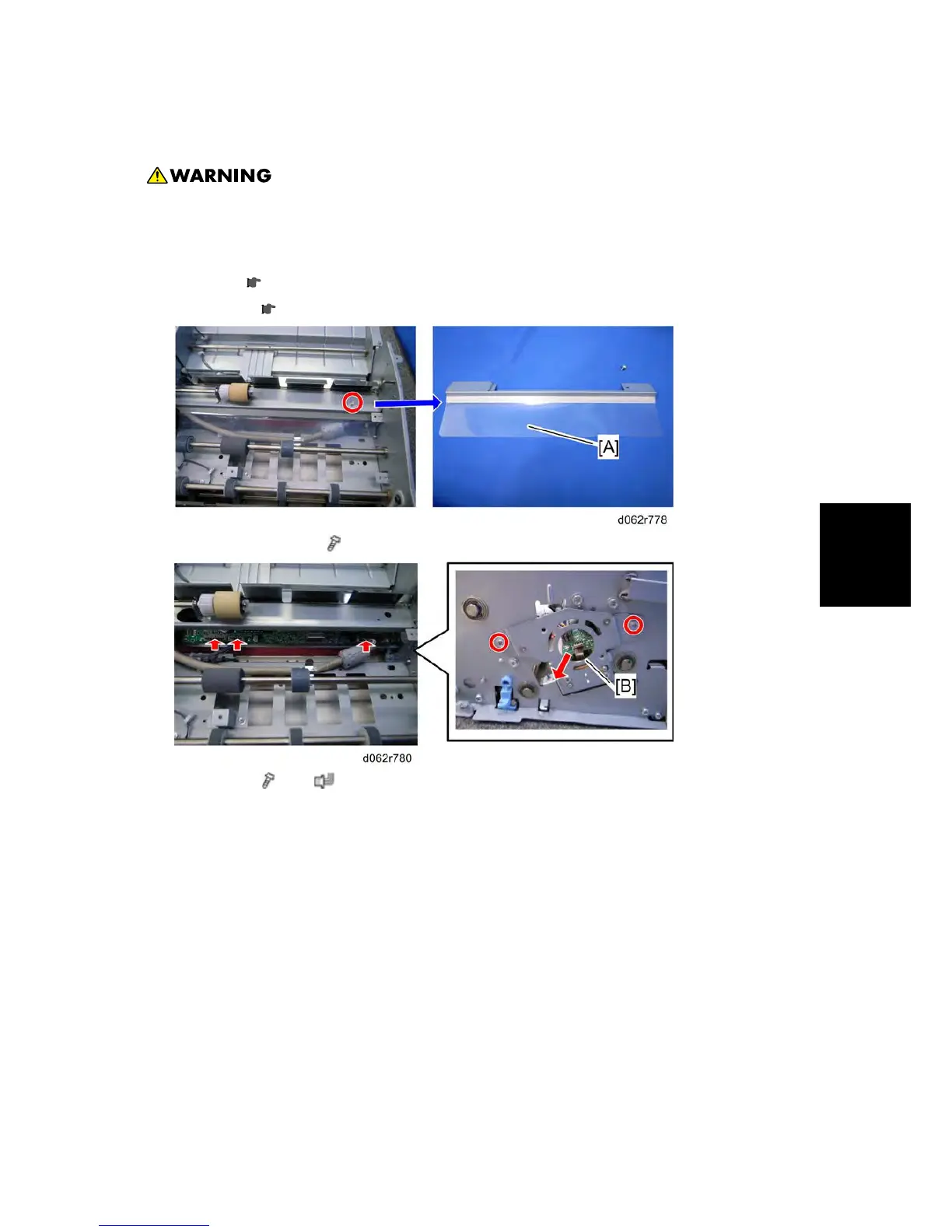

4.13.15 CIS UNIT
 Turn off the main power switch and unplug the machine before performing this
procedure.
1. Open the feed cover.
2. Feed unit
p.4-137
3. Guide plate
p.4-140
4. Guide plate mylar [A] (
x 1)
5. CIS unit [B] ( x 2, x 3)
 Pull out the CIS unit carefully to avoid scratching the glass.
