and
Adjustment

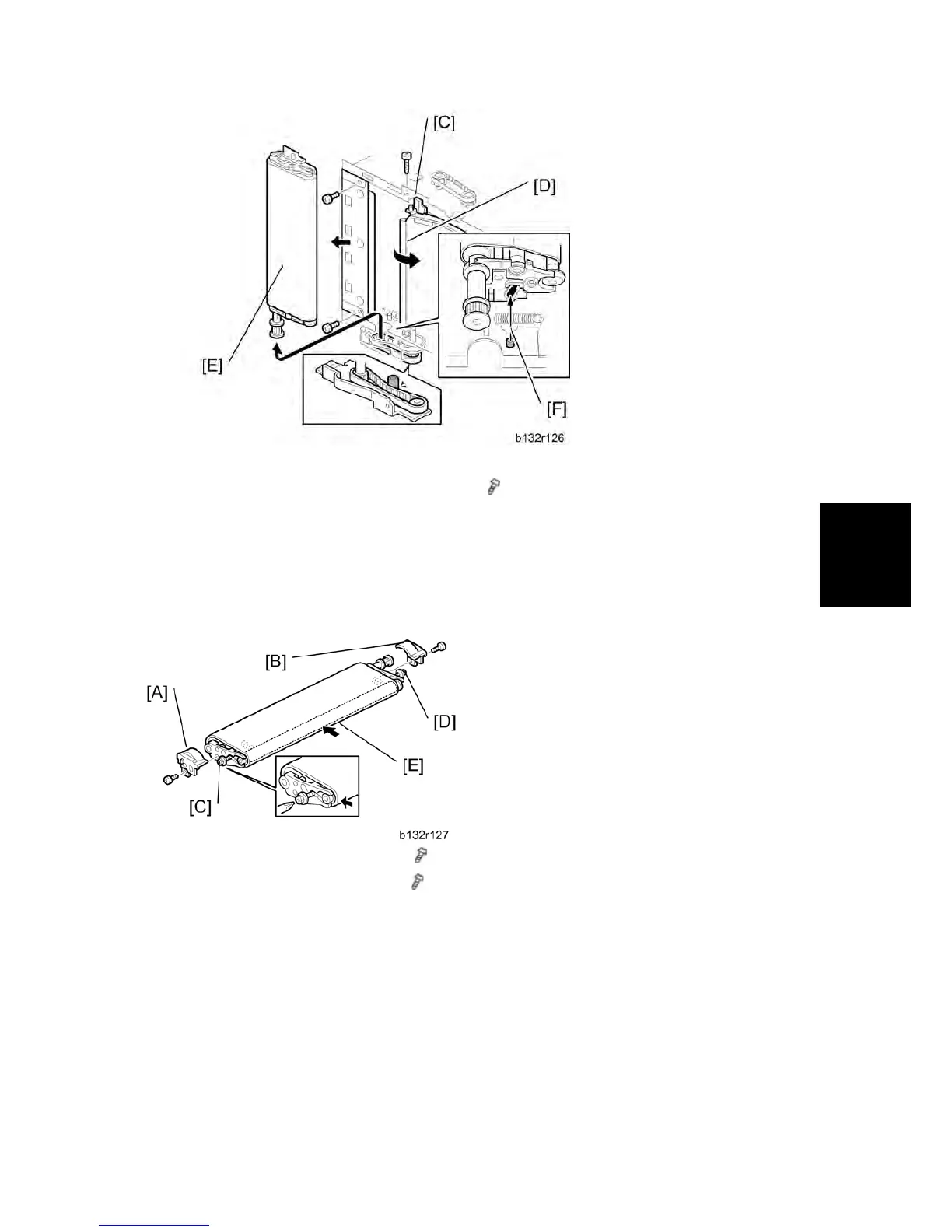

4. Release the stopper pin [C] of the transport guide [D].
5. Remove the transport belt unit [E] (Pin screw
x1, Timing belt x1)
Reinstallation
Attach the timing belt as shown, then insert the pin screw [F] as shown.
Removing the Belt
1. Remove the front plastic cover [A] (
x1)
2. Remove the rear plastic cover [B] (
x1)
3. Loosen front lock screw [C]. Do not remove.
4. Loosen rear lock screw [D]. Do not remove. This releases the spring-loaded tension on the
belt.
5. Grip the roller in the center [E], then squeeze the belt to bring the rollers together.
6. While squeezing the belt and rollers together in the center, tighten screws [C] and [D]. This
compresses the spring and releases tension on the belt.
Important: To avoid stripping the threads of the screws, do not apply excessive torque to
these screws!
