4.12.6 BCU
1. Rear upper cover and rear lower cover p.4-11

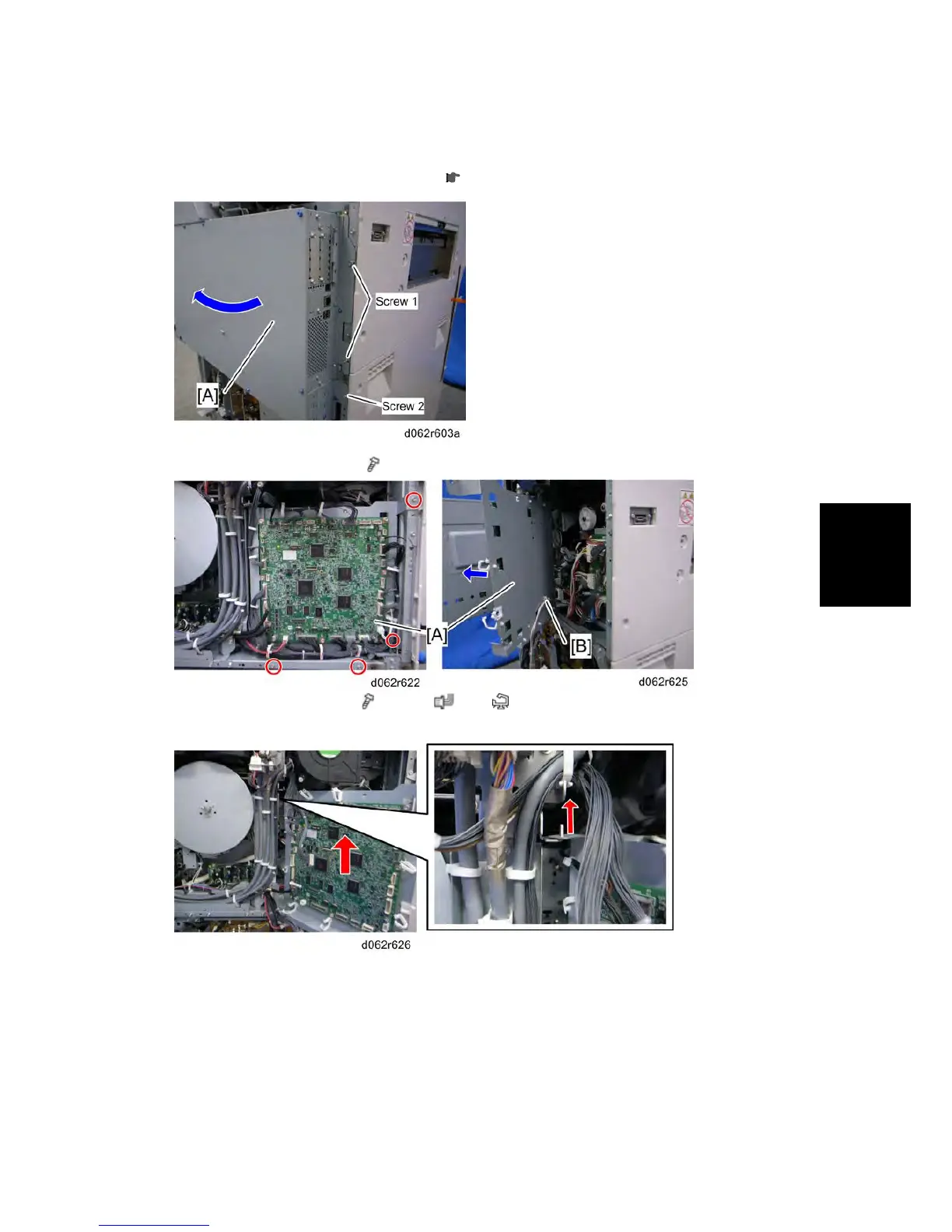

2. Open the controller box [A] (
x 3)
3. Open the BCU bracket [A] (
x 4, all s, all s)
4. Do not forget to release the clamp [B].
5. Lift up the BCU bracket and remove it.
