Timing Charts
D131/D132/D133 6-24 SM

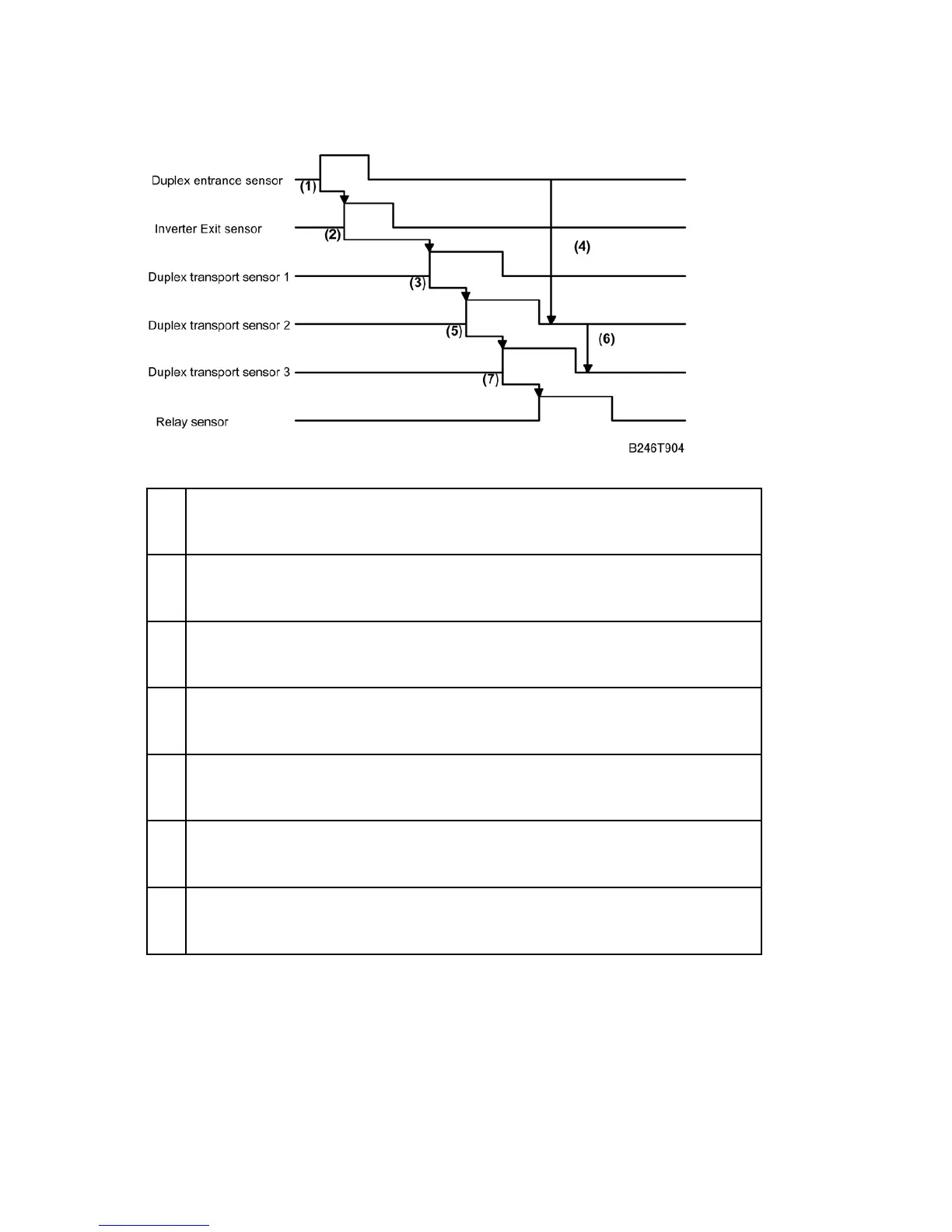

6.5.3 DUPLEX TRANSPORT
(1):
Duplex entrance sensor ON > Inverter exit sensor does not switch ON at the
correct time.
(2):
Inverter exit sensor ON > Duplex transport sensor 1 does not switch on at the
correct time.
(3):
Duplex transport sensor 1 ON> Duplex transport sensor 2 does not switch on at the
correct time.
(4):
Duplex entrance sensor ON > Duplex transport sensor 2 does not switch OFF at
the correct time.
(5):
Duplex transport sensor 2 ON > Duplex transport sensor 3 does not switch ON at
the correct time.
(6):
Duplex transport sensor 2 OFF > Duplex transport sensor 3 does not switch OFF at
the correct time.
(7):
Duplex transport sensor 3 ON > Relay sensor does not switch on at the correct
time.
