D619 24 SM

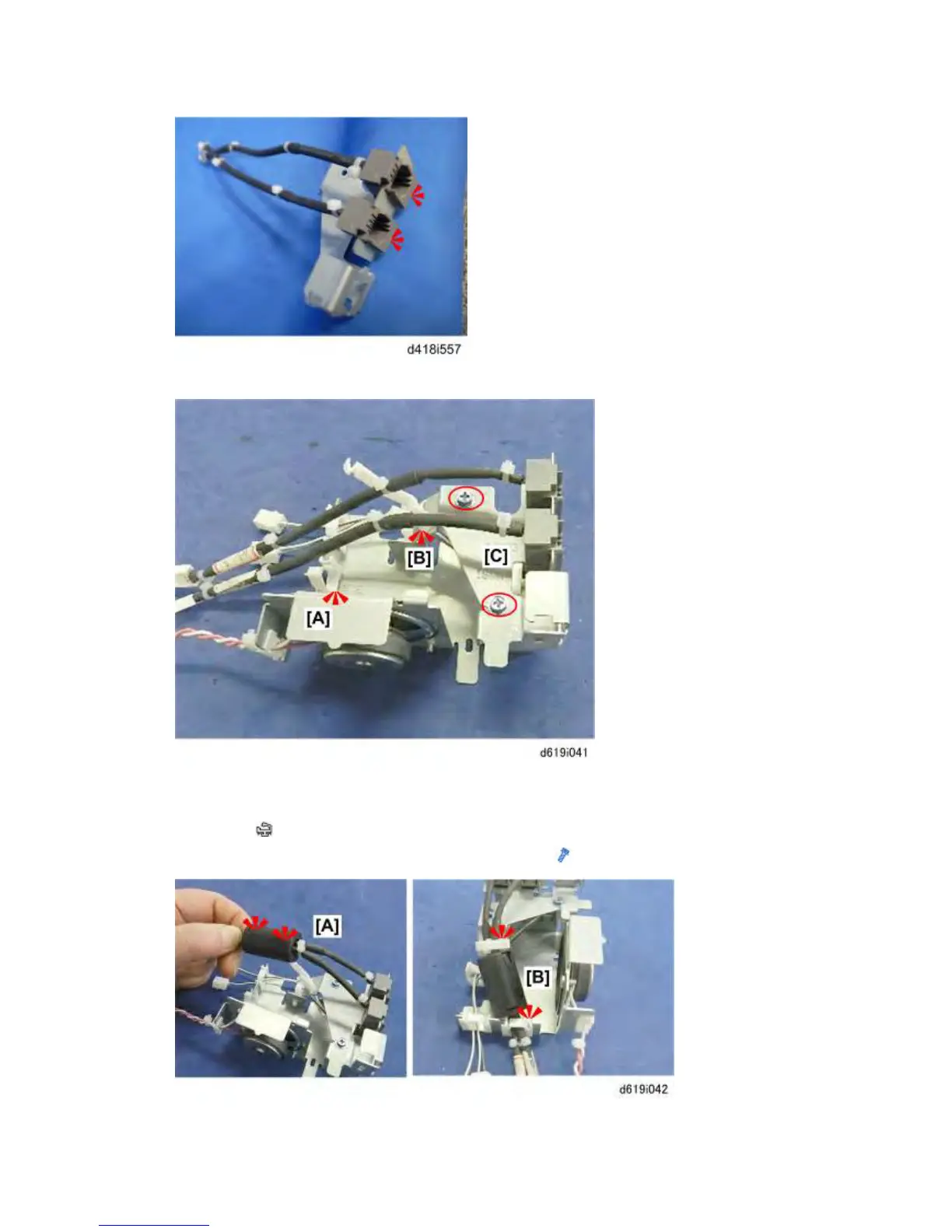

16. Attach the two modular jacks to the G3 connector bracket.
17. Attach the saddle clamp [A] to the G3 bracket.
18. Attach the post of the other clamp [B] to the slanted arm of the bracket, and then clamp both
harnesses (
x2).
19. Attach the modular jack bracket [C] to the speaker unit (
x2).
