Kinetix 6000 Multi-axis Servo Drives
Kinetix 6000 System (without LIM module)
C
A
T
.
N
O
.
L
D
C
-
M
0
75500
S
E
R
I
A
L
N
O
.
X
X
X
X
X
X
X
X
X
S
E
R
I
E
S
A
w
ww
.
a
b
.
c
o
m
M
A
D
E
I
N
U
S
A

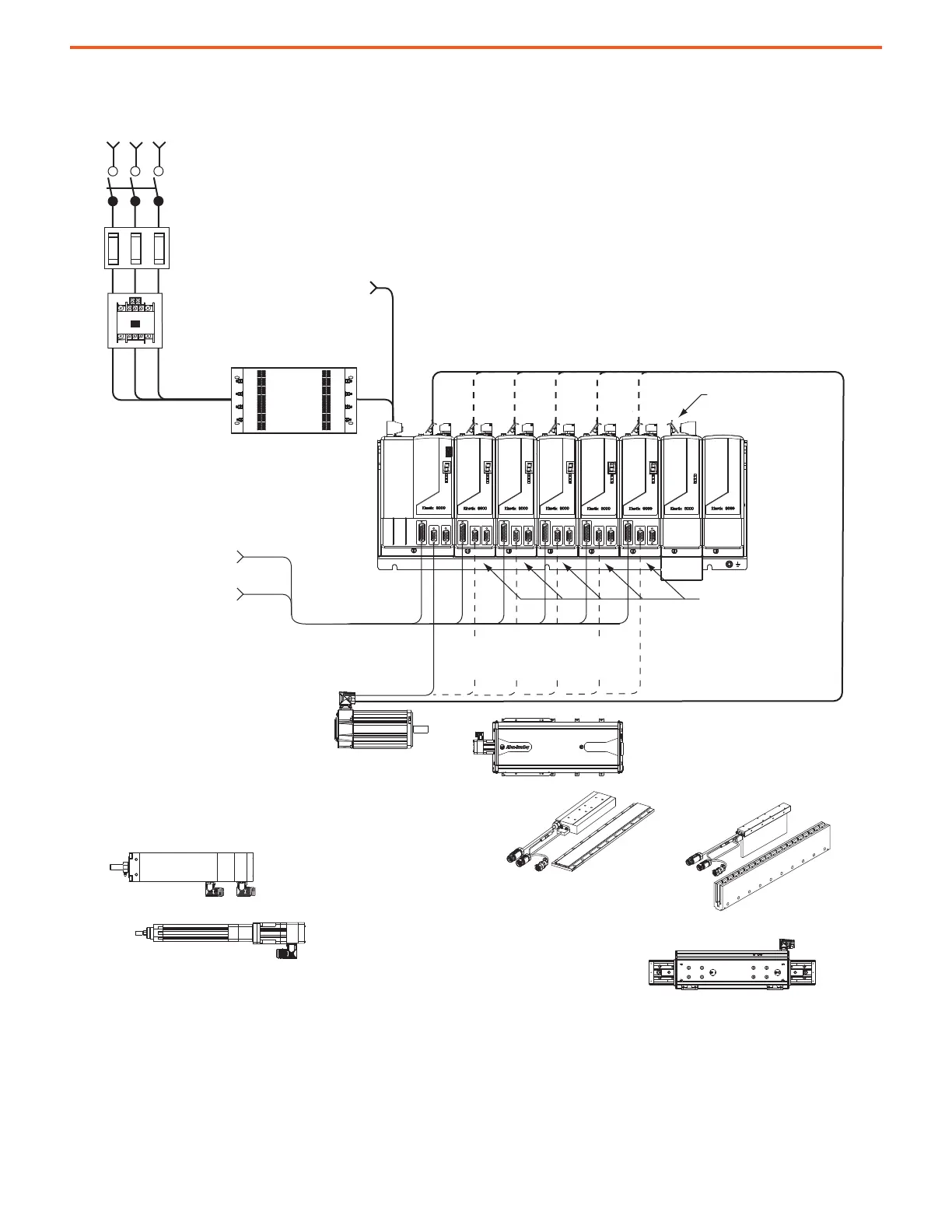

Kinetix 6000 Multi-axis Servo Drive System
Line
Disconnect
Device
Magnetic
Contactor
Input
Fusing
Three-phase
Input Power
Single-phase
Control Power
2094-xCxx-Mxx-S
IAM Module
2094-PRSx
Power Rail
I/O Connections
To Input Sensors
and Control String
2094-xMxx-S
Axis Modules (5)
2094-BSP2
Shunt Module
(optional component)
2094-PRF
Slot-filler Module
(required to fill
any unused slots)
2090-K6CK-Dxxx
Low Profile Connector Kits for
I/O, Motor Feedback, and Aux Feedback
2090-XXLF-xxxx
AC Line Filter
(required for CE)
Kinetix MP and TLY Rotary Motors
(MPL-xxxx motors shown)
Kinetix MPAS Integrated Linear Stages
(MPAS-B9xxx ballscrew shown)
Bulletin 2090
Motor Feedback Cables
Bulletin 2090
Motor Power Cables
Kinetix MPAR Electric Cylinders
(MPAR-Bxxxx electric cylinder shown)
Kinetix MPAI Heavy-duty Electric Cylinders
(MPAI-Bxxxx electric cylinders shown)
LDC-Series Linear Motors
(LDC-Cxxxxxxx linear motor shown)
LDL-Series Linear Motors
(LDL-xxxxxxxx linear motor shown)
LDAT-Series Linear Thrusters
(LDAT-Sxxxxxx-xBx linear thrusters only)
