For proper operation, the payload on the puck and the velocity of the puck must fit within the
curve that is shown in Figure 3-28.

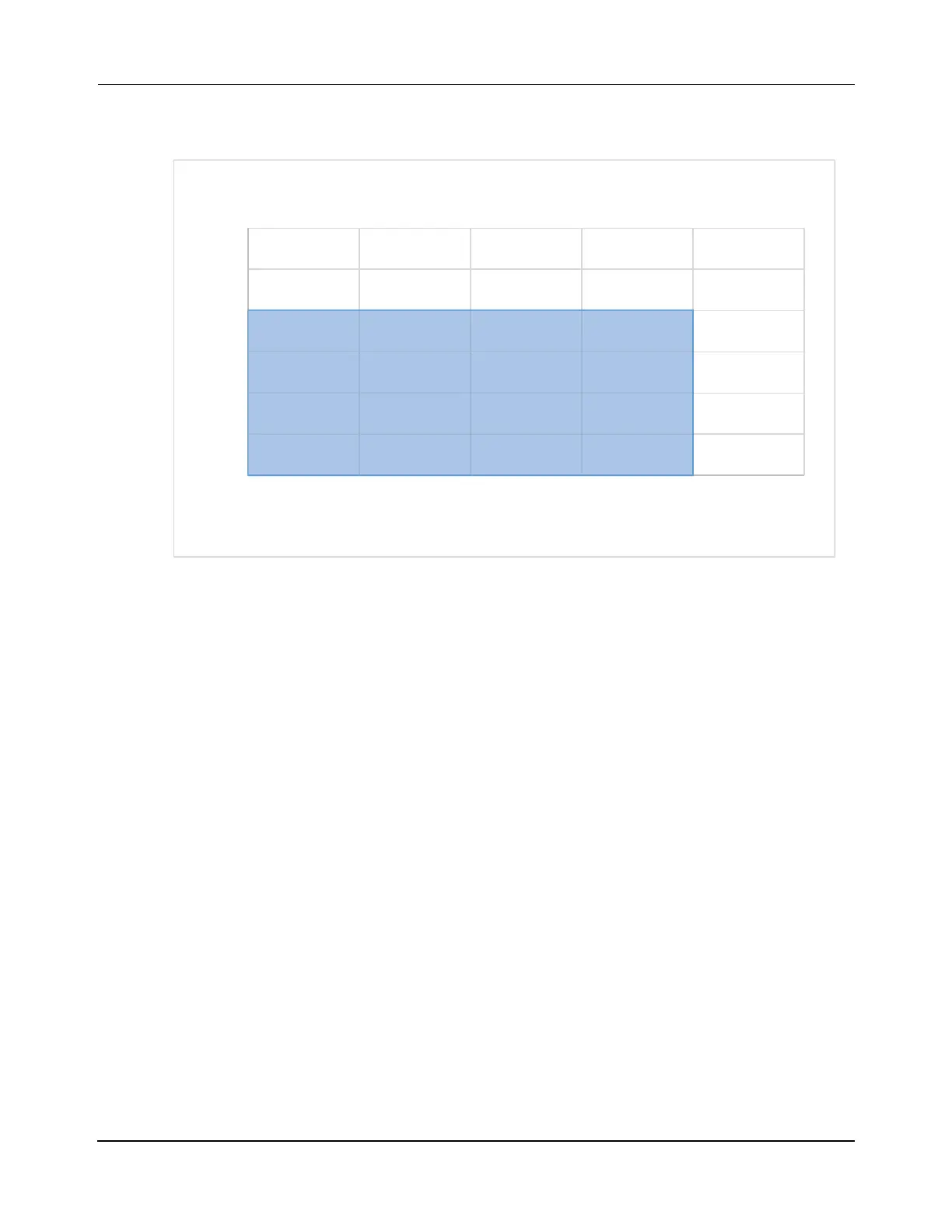

Figure 3-28: Single Array Glide Puck Payload vs. Velocity
0
0.5
1.0
1.5
0 0.5 1 1.5 2 2.5
Payload (kg)
Velocity (m/s)
Single Array Glide Puck Max Velocity
