Rockwell Automation MagneMotion MagneMover LITE User Manual

Maintenance
Repair
MagneMover LITE User Manual 425
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Replace MM LITE Power Supply Fuses
Fuses on the MM LITE power supply must be replaced if they become damaged.
Required Tools and Equipment
• Small flat-blade screwdriver.
• 5 x 20 mm, 250V, 10 A time-lag fuses (Littelfuse 218 or equivalent).
• 6.3 x 32 mm, 250V AC (125V DC), 10 A ceramic slow blow fuses (Littelfuse 326 or
equivalent).
Procedure

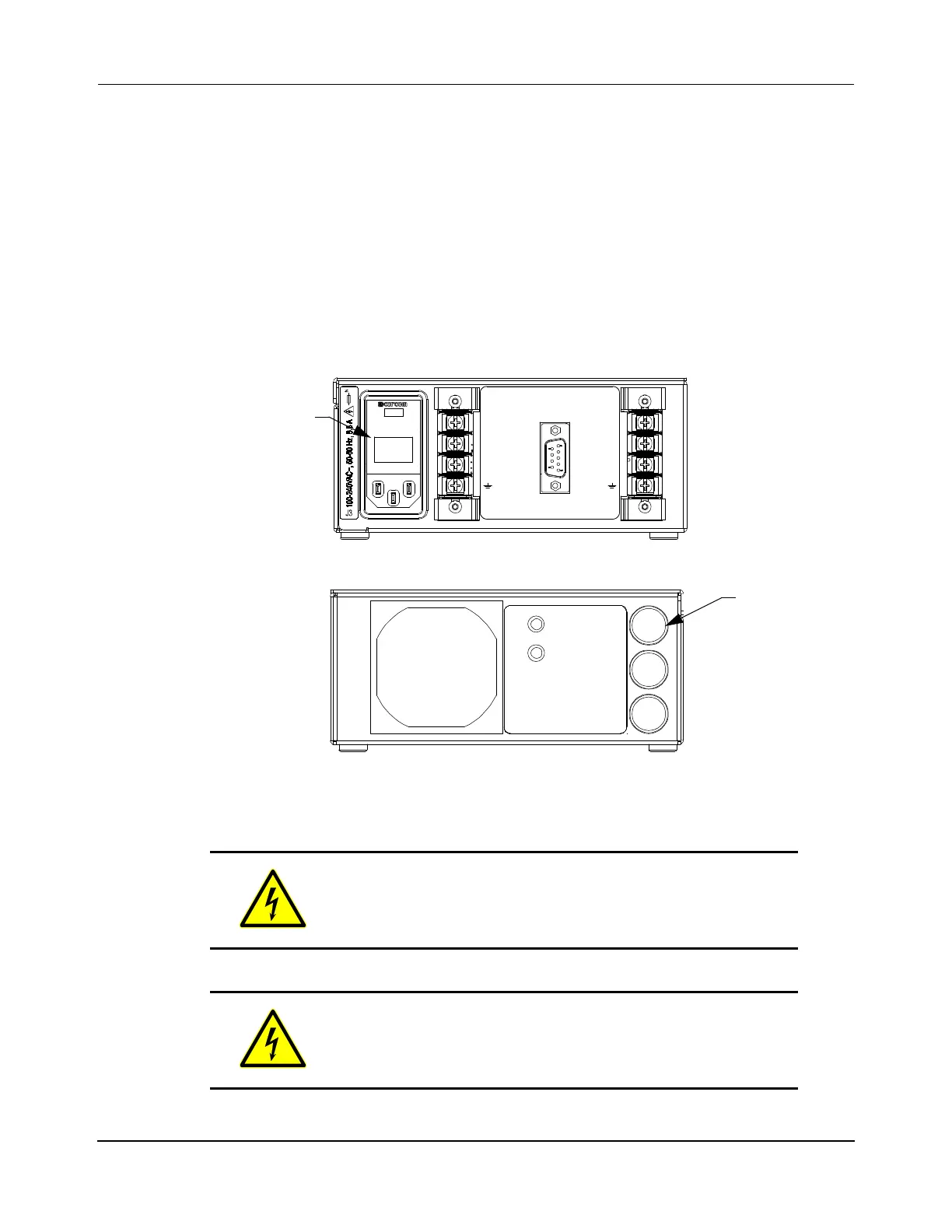

Figure 7-32: MM LITE Power Supply Fuse Locations
SHOCK HAZARD
115V AC, 6.8 A or 230V AC, 3.4 A
AC power must be disconnected before servicing.
SHOCK HAZARD
The power supply is double pole/neutral fused.
AC power must be disconnected before servicing.
F3
LOGIC
T, 25 0 V, 1 0 A
F1
PROPULSION 1
T, 25 0 V, 1 0 A
LOGIC
PROPULSION
F2
PROPULSION 2
T, 25 0 V, 1 0 A
SEE MANUAL FOR FILTER MAINTENANCE
GND
J4 DC ENABLE
(SEE MANUAL FOR PINOUT)
36 VDC
300W / 8A MAX
36 VDC
300W / 8A MAX
J1 J2
GND
V+
PROPULSION
V+
LOGIC
V-
RETURN
V+
LOGIC
V-
RETURN
V+
PROPULSION
Power Entry Module
DC Fuse
Rear View
Front View
Holders
