Specifications and Site Requirements
Electrical Specifications
214 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

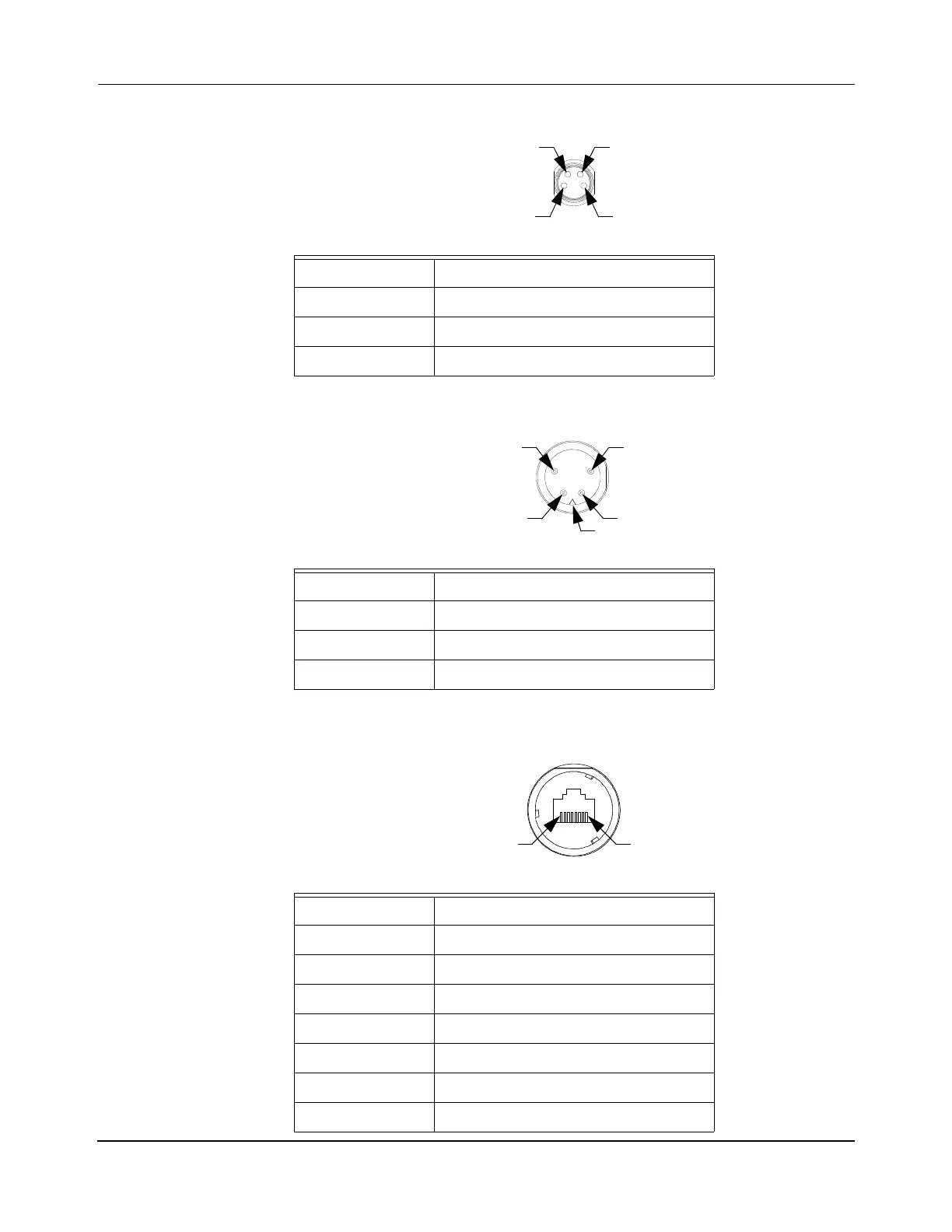

Table 4-19: MagneMover LITE Switch RS-422 Pinouts
M8 Nano-Mizer, 4-Pin, Plug
RxD+ 1
RxD- 2
TxD+ 3
TxD- 4
Table 4-20: MagneMover LITE Switch Power Pinouts
Mini-Conn-X, 4-Pin, Plug
V+ Propulsion 1
V+ Logic 2
V- Return 3
RTN 4
Table 4-21: MagneMover LITE Switch Ethernet Pinout
LAN – RJ45, Socket
TD+ 1
TD- 2
RD+ 3
— 4
— 5
RD- 6
— 7
— 8
3
4
1
2
1
2
4
3
Keyway
8
1
