Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Electrical Specifications
MagneMover LITE User Manual 209
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

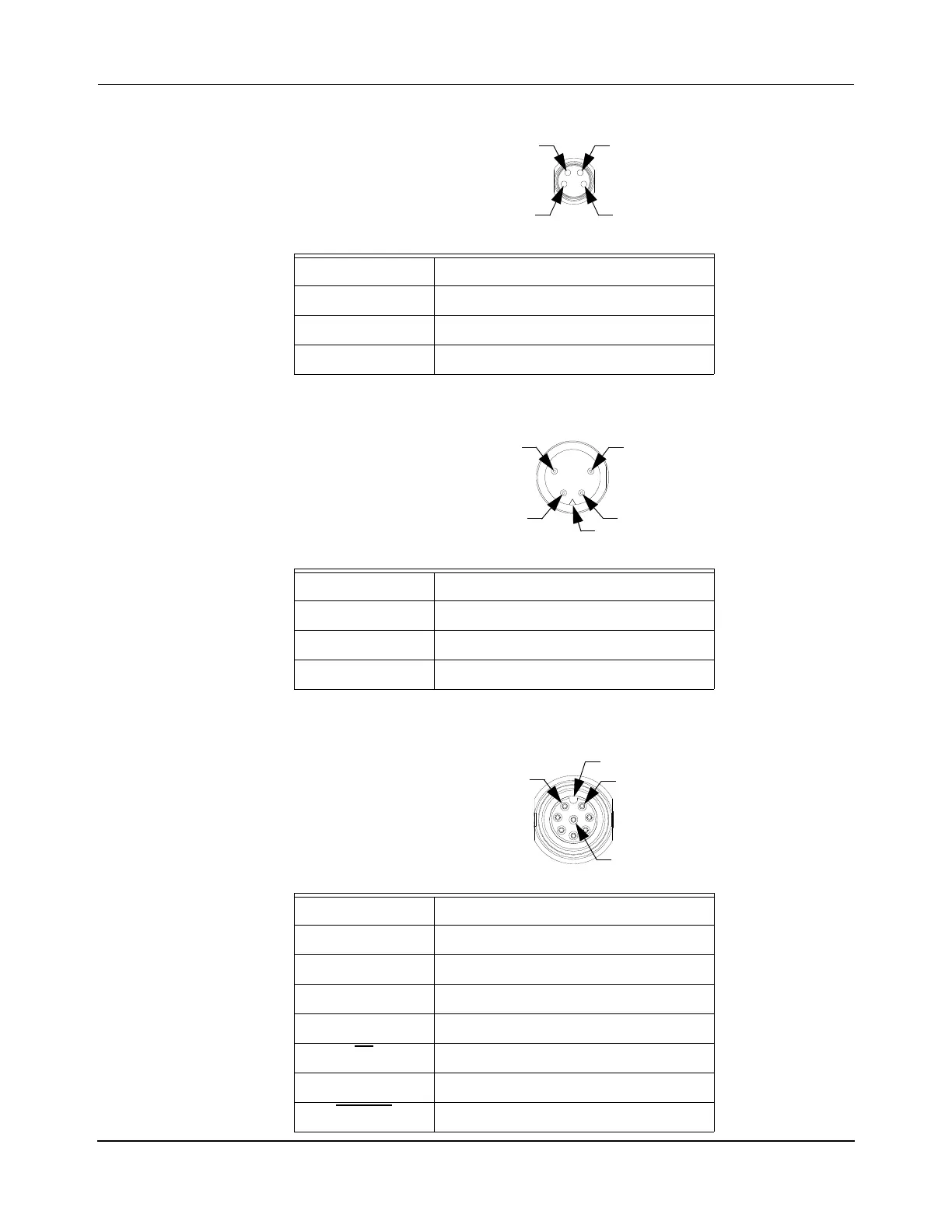

Table 4-11: MagneMover LITE Motor RS-422 Pinouts
M8 Nano-Mizer, 4-Pin, Plug
RxD+ 1
RxD- 2
TxD+ 3
TxD- 4
Table 4-12: MagneMover LITE Motor Power Pinouts
Mini-Conn-X, 4-Pin, Plug
V+ Propulsion 1
V+ Logic 2
V- Return 3
RTN 4
Table 4-13: MagneMover LITE Sync Pinouts
Micro-Mizer, 8-Pin, Plug
RTN 1
V+ 2
SIMO 3
SCLK 4
SOMI 5
SS
6
— 7
RESET
8
3
4
1
2
1
2
4
3
Keyway
8
1
2
Keyway
