Specifications and Site Requirements
Mechanical Specifications
204 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Pallet

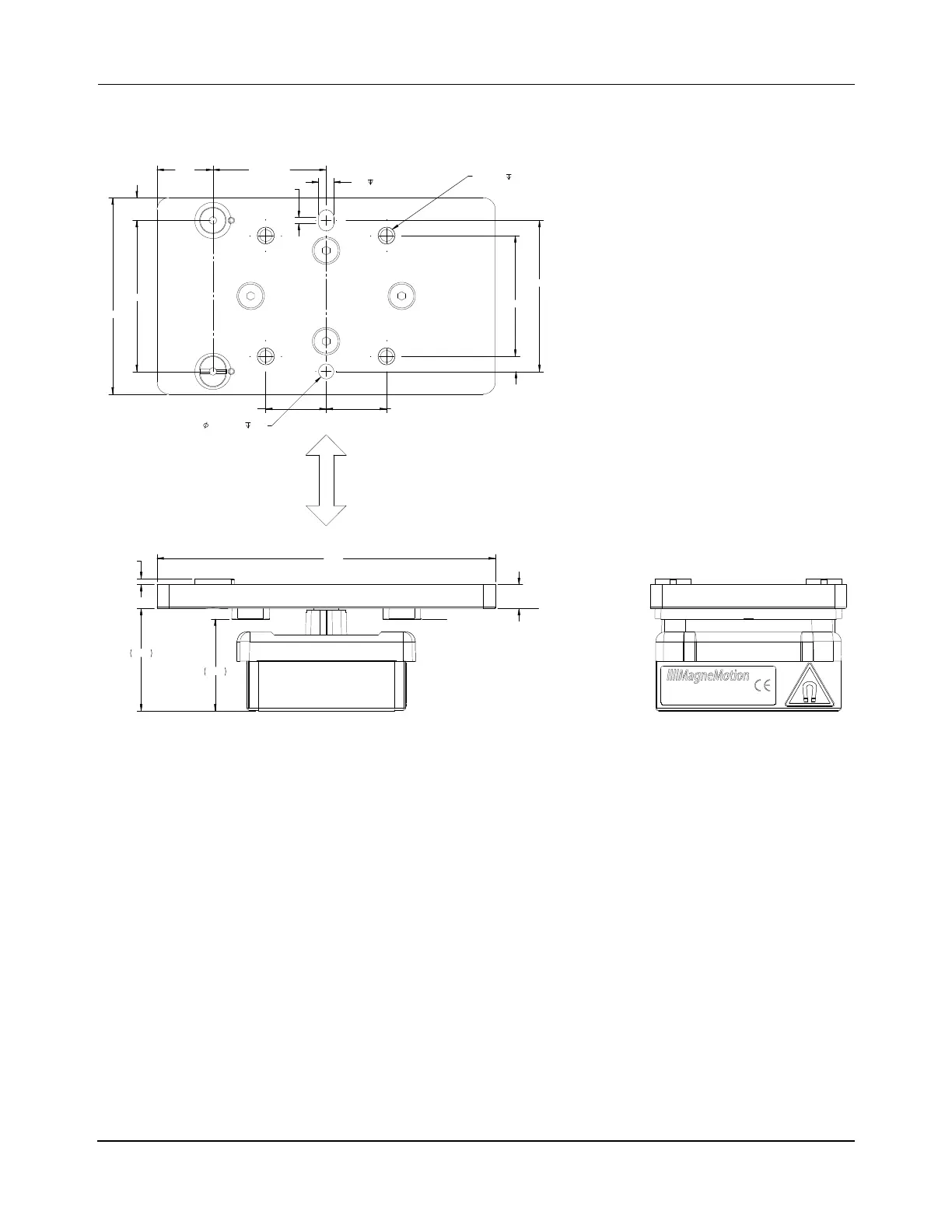

Figure 4-54: Precision Locator Glide Puck with Basic Pallet Mechanical Drawing
Exposed Materials
• 6061-T6 Aluminum, Hardcoat Anodized per MIL-A8625-F, Type III, Class 2, Black.
• 18-8 (A2) Hardened Stainless Steel with Thin Dense Chrome plating.
• Stainless Steel.
• 316/316L/316L #2 Stainless Steel.
• PEEK/PTFE.
• UHMW Polyethylene.
All Dimensions in Millimeters
RUNNING SURFACE AT
PRECISION LOCATOR STATION
RUNNING SURFACE
ON MOTORS
33.88
30.38
[0.313±0.002]
7.94±0.05
2X 2.0
112.0
50.00
C
L
(TORQUESCREWSTO11IN-LBSMAX,NOLOCTITE)
4X M4x0.7
4MM LOCKING 304SS DRY FILM LUBE HELICOIL
(5 H7)
2X 5.00
7.0
7.50
2X 37.5±0.05
2X 20.00
18.50
7.000
5.000
2X 50±0.03
5.012
2X 20.00
2X 40.00
5.08
5.00
2.0
65.0
DIRECTION OF MOTION
