MagneMover Transport System Options
Precision Rails
The precision rail option provides customized stainless steel or high carbon steel (typical) pre-
cision ground rails in place of the integral rails on the standard MagneMover LITE motors.
When using the precision rail option, MM LITE railless motors are used with a precision rail
that is aligned above the motors and supports the vehicles using precision sealed bearings.
Precision rail option specifications:
• Maximum acceleration: Up to 4 m/s
2
in straights; payload dependent.
• Maximum velocity: 2 m/s.
• Maximum payload: Up to 2.5 kg (5 kg with dual array vehicle).
• Location repeatability: ±0.5 mm.
• Station repeatability: ±0.1 mm with calibration.
The precision rail option does not support the use of the MM LITE switches.

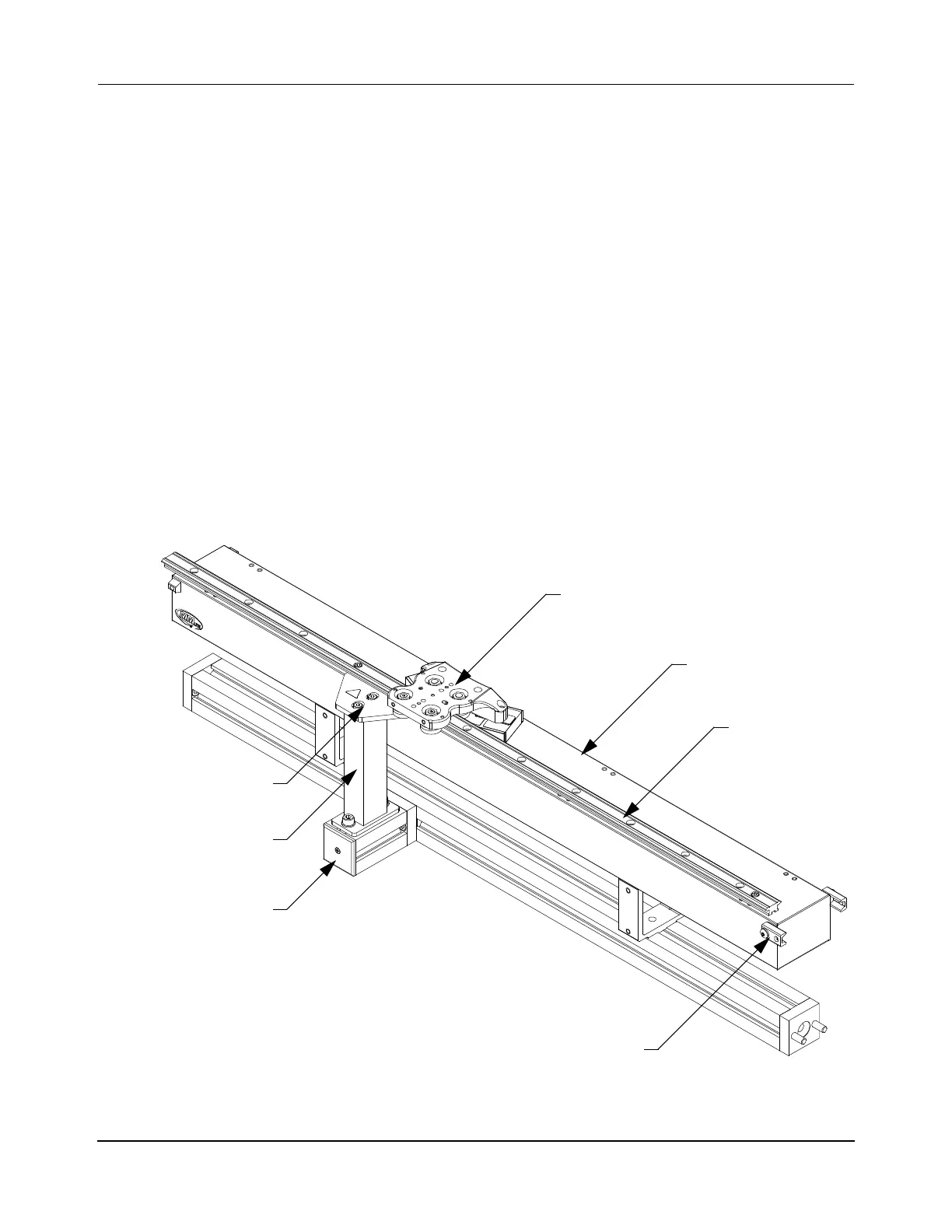

Figure 1-4: Detailed View of MagneMover LITE Precision Rail Option Components
• V-brace – Used for align and secure adjacent railless motors to each other.
Vehicle
Support Post
Railless Motor V-brace
Railless Motor
Post Mount
Spine Plate
(Dual Array Shown)
Precision Rail
(1000 mm shown)
