Design Guidelines
Transport System Options
138 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

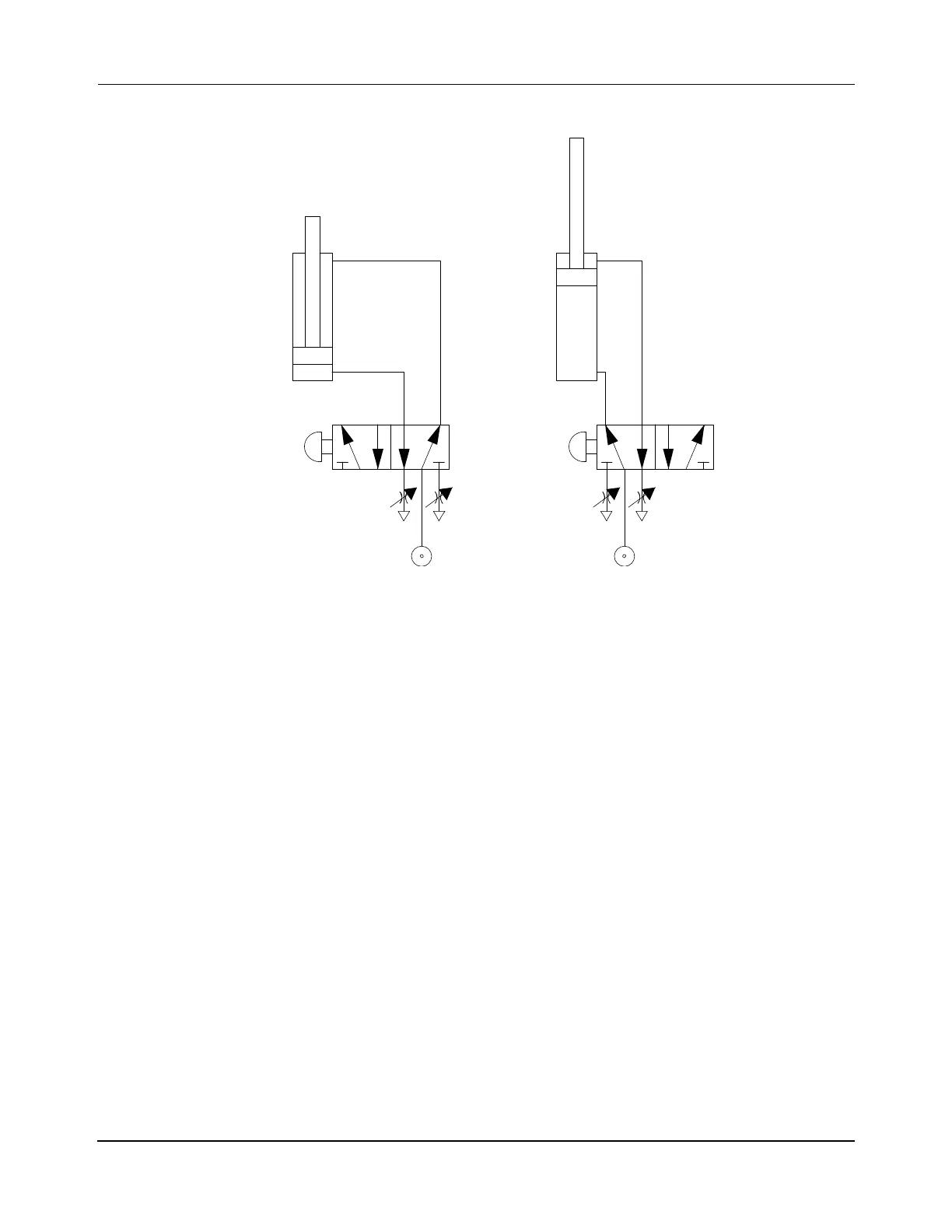

Figure 3-63: Precision Locator Pneumatic Block Diagram
Pallet Released – Air flows from Port 1 (inlet) to Port 2 and is supplied to the Precision Loca-
tor cylinder to move it to the retracted position. As the cylinder moves, air returns from the
cylinder to Port 4 and exhausts at Port 5.
Pallet Engaged – Air flows from Port 1 (inlet) to Port 4 and is supplied to the Precision Loca-
tor cylinder to move it to the extended position. As the cylinder moves, air returns from the
cylinder to Port 2 and exhausts at Port 3.
1
2
3
4
51
2
3
4
51
2
3
4
51
2
3
4
5
Pallet Released Pallet Engaged
ExtendedRetracted
