Specifications and Site Requirements
Mechanical Specifications
180 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Stand System
The stand system consists of extruded aluminum legs and beams for mounting the motors.
The legs are available in different lengths to provide different system heights. The legs are
also available in different configurations, which support different numbers of parallel motors.

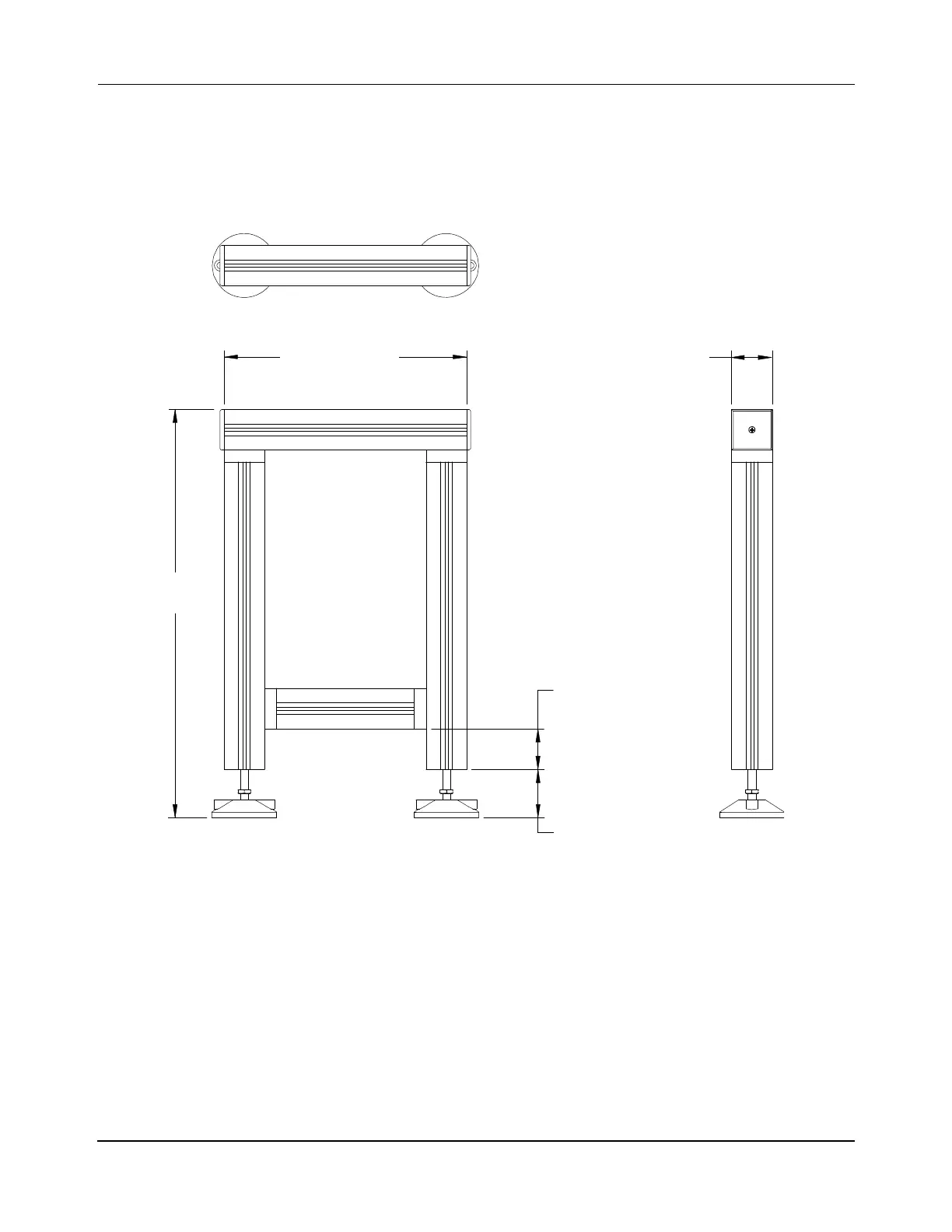

Figure 4-33: Stand System Mechanical Drawing
Exposed Materials
Galvanized Steel.
Zinc, Electrophoretically coated.
6060 T66 Aluminum, Anodized.
PA6 Nylon.
Rubber.
50
60 ±12
50
All Dimensions in Millimeters
See Table 4-4
See Table 4- 5
200-1991-XX
