Specifications and Site Requirements
Electrical Specifications
MagneMover LITE User Manual 211
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

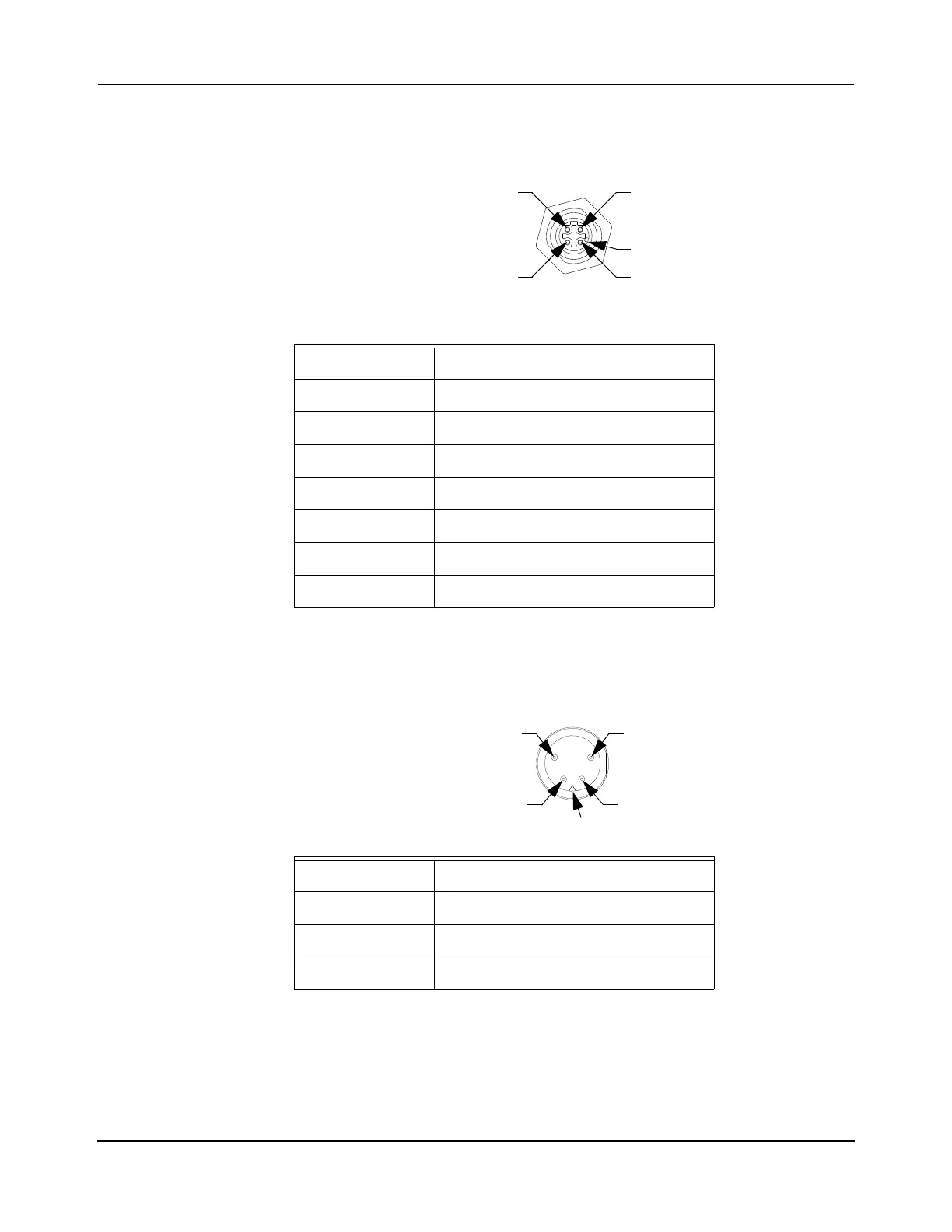

Table 4-15: MagneMover LITE Motor Ethernet Pinout
700-1573-00
M12 Eurofast, FKFDD, Socket
TD+ 1
TD- 3
RD+ 2
—
—
RD- 4
—
—
Table 4-16: MagneMover LITE Motor Power Pinouts
Mini-Conn-X, 4-Pin, Plug
V+ Propulsion 1
V+ Logic 2
V- Return 3
RTN 4
4
1 2
3
Key
1
2
4
3
Keyway
