Rockwell Automation MagneMotion MagneMover LITE User Manual

Installation
Option Installation
MagneMover LITE User Manual 281
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Option Installation
Precision Rail Installation
When installing the optional precision rails, make sure that all previous installation steps have
been completed using railless motors. A typical 2 meter loop with railless motors is shown in
Figure 5-28.
NOTE: Precision rails cannot be used with the precision locator option.

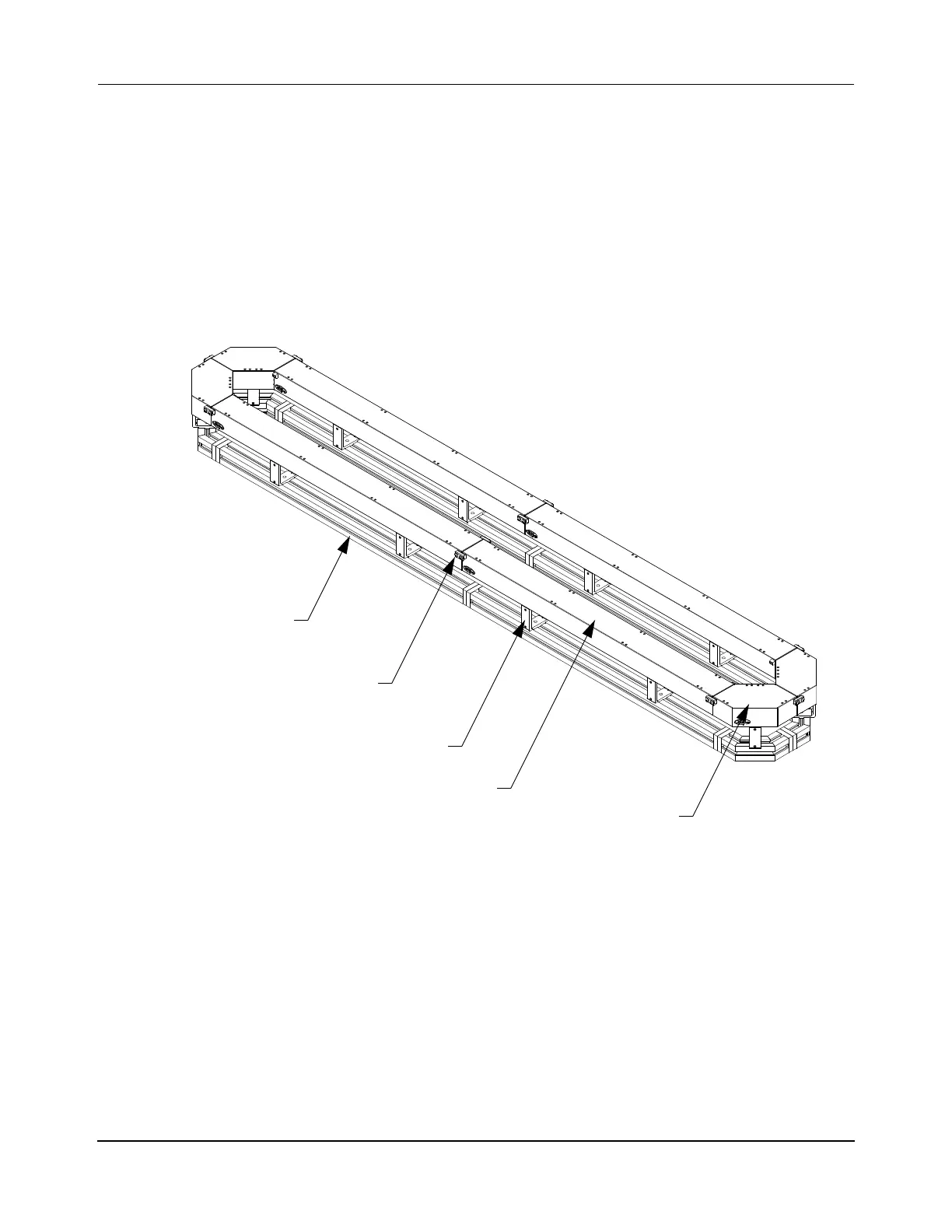

Figure 5-28: MagneMover LITE Railless Motor System
NOTE: Loosely fasten (finger-tighten then back off one-half turn) all parts when installing
the precision rail structural components. This loose assembly provides the parts a
small amount of movement relative to each other to allow for final adjustments once
the entire precision rail system is in place.
Beam
Motor Mounts
V-brace
Railless Motor
(Curve)
Railless Motor
(Straight)
