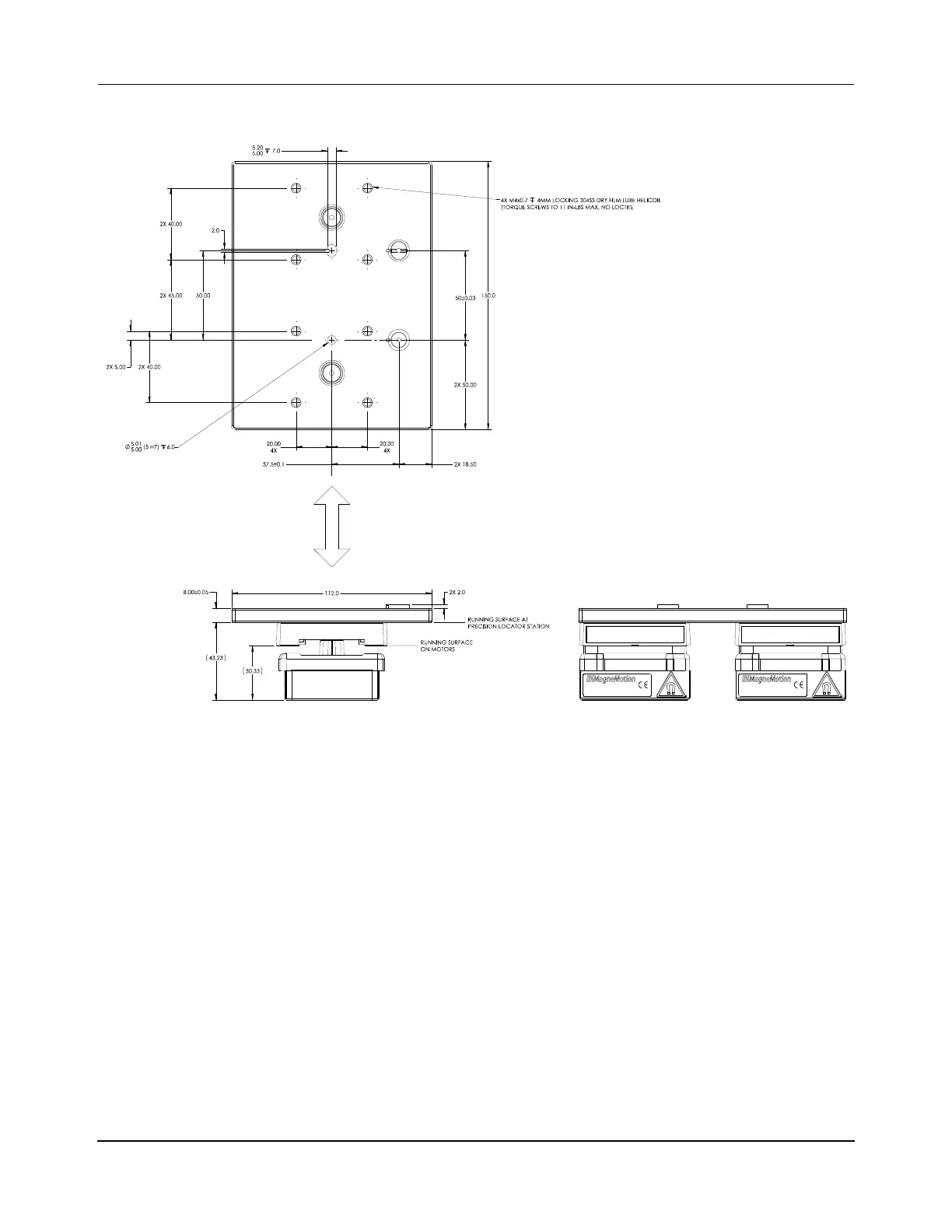

Figure 4-55: Precision Locator Tandem Glide Puck with Basic Pallet Mechanical Drawing
Exposed Materials
• 6061-T6 Aluminum, Hardcoat Anodized per MIL-A8625-F, Type III, Class 2, Black.
• 18-8 (A2) Hardened Stainless Steel with Thin Dense Chrome plating.
• Stainless Steel.
• 316/316L/316L #2 Stainless Steel.
• PEEK/PTFE.
• UHMW Polyethylene.
DIRECTION OF MOTION
C
L
C
L
All Dimensions in Millimeters
700-1664-00
