Specifications and Site Requirements

Electrical Specifications

226 MagneMotion

Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

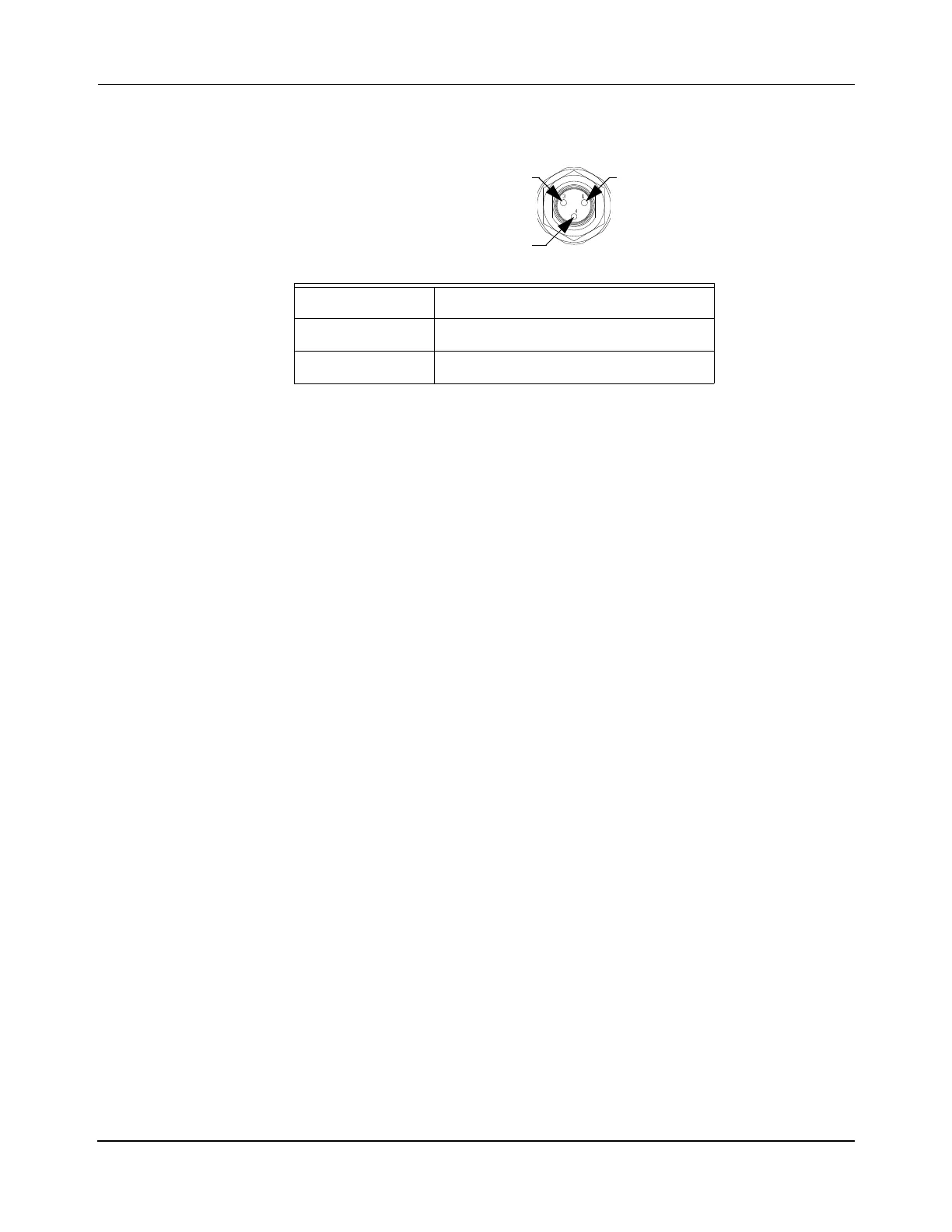

Table 4-37: Precision Locator Sensor Pinout

M8, 3-Pin, Plug

DC (+)

* +24V DC max @ 40 mA maximum.

DC (-) 3

Output 4

Pin 4

Pin 3

Pin 1
