Operation
Controls and Indicators
330 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Controls and Indicators
The control application on the host controller must provide any needed controls or indicators
that are related to transport system operation. Additional controls and indicators can be con-
figured as described in this section. The controls and indicators of the MagneMover LITE
components are identified in the Electrical Specifications on page 206.
Track Display
The NCHost TCP Interface Utility can be used to display the Graphics Window, which is
shown in Figure 6-8. The Graphics Window shows the transport system layout and all vehi-
cles in the transport system for real-time monitoring of transport system operation. This dis-
play can only be used if there is a Track file for the specific configuration. See the
MagneMover LITE Configurator User Manual, MMI-UM008, to create the Track file. See the
NCHost TCP Interface Utility User Manual, MMI-UM010, to use the Graphics Window.

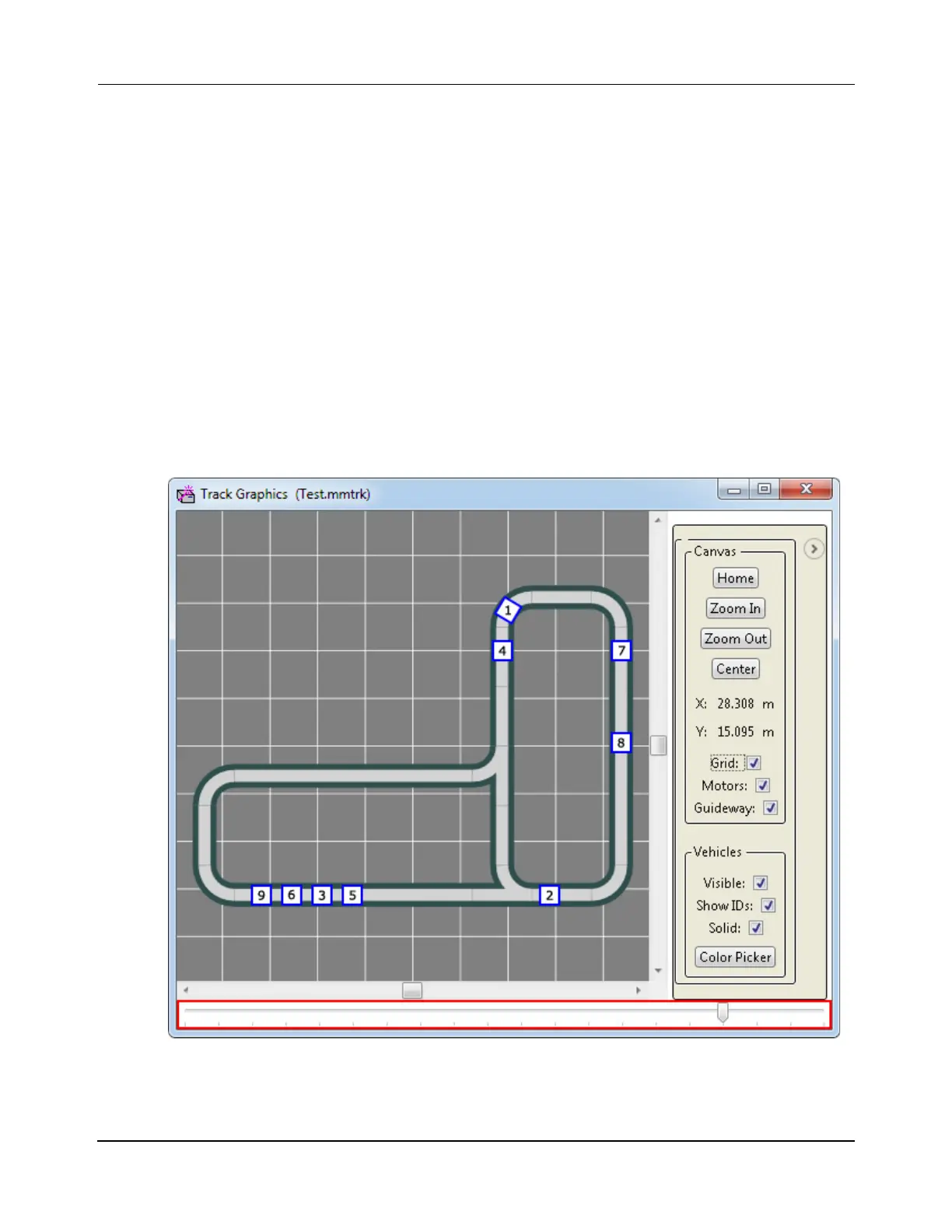

Figure 6-8: The Graphics Window
