Maintenance
Repair
MagneMover LITE User Manual 407
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Required Tools and Equipment
• 700-1585-00 – Kit, ML Puck Wear Surfaces Replacement. Contains:
• 700-1587-00 – Kit, ML Puck Wear Surfaces Replacement, Complete (2X).
• Screw, Shoulder, Skt, Ø5 mm X 6 mm Long, M4 Thread (2X).
• Washer, Spring, Belleville, for 0.190" /M5, Acetal (2X).
• Replace Glide Puck Wear Surfaces procedure on page 402.
• Linkage Plate Assembly, Plastic, ML High Payload Puck, Tandem.
• Fixture, Tandem Linkage Plate Installation.
• Torque wrench.
• Loctite 243, Thread locker Anaerobic Adhesive, Blue.
• Isopropyl Alcohol.
Disassemble Tandem Puck Assembly
1. Remove the tandem glide puck from the MagneMover LITE transport system (see
Replace Pucks on page 399).
2. Place the tandem puck linkage plate installation fixture (shown in Figure 7-20) on a
flat surface.
3. Place the tandem puck in the fixture as shown in Figure 7-20.

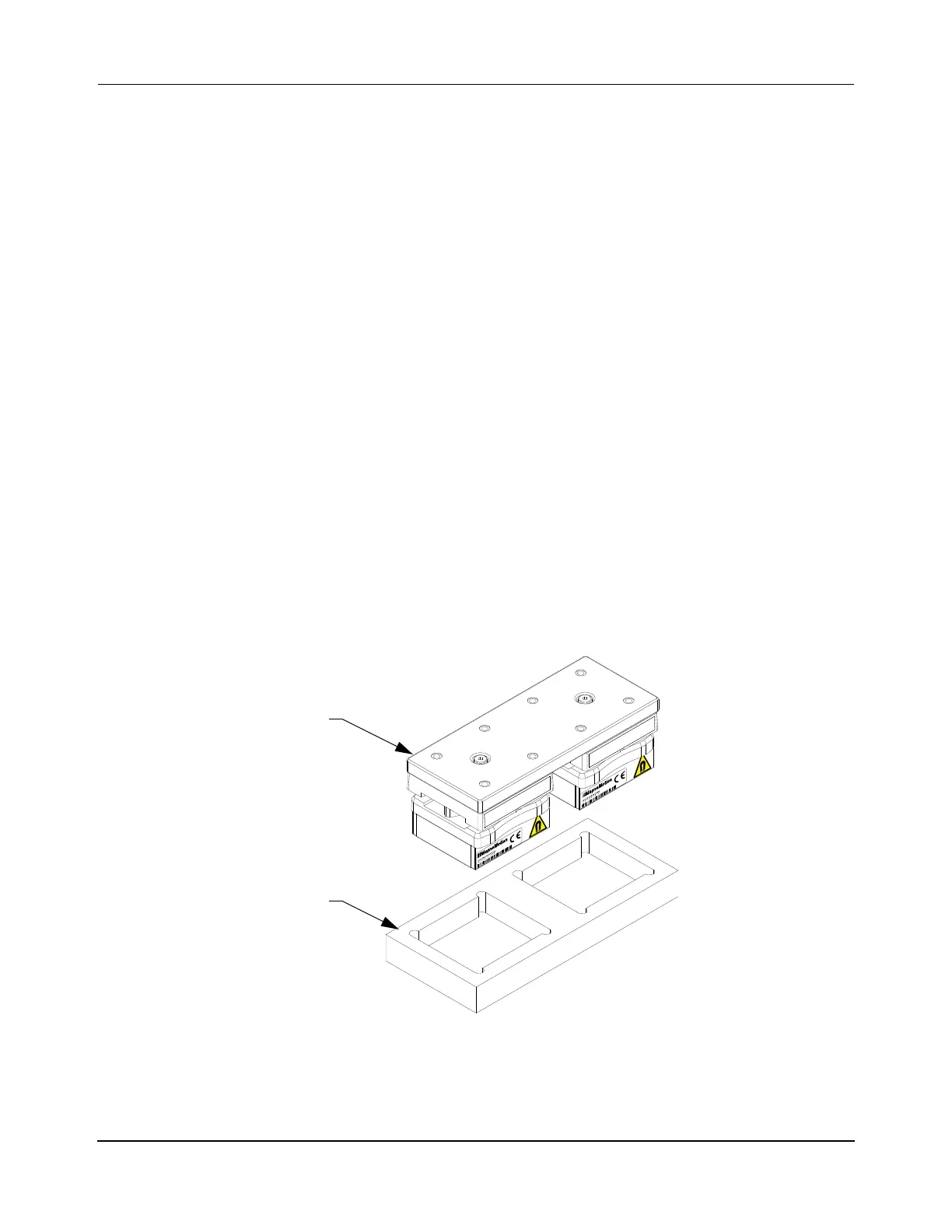

Figure 7-20: Place Tandem Glide Puck in Fixture
4. Remove the two screws and washers that secure the linkage plate to the two pucks as
shown in Figure 7-21 and dispose of properly.
Tandem Puck
Installation
Fixture
