Rockwell Automation MagneMotion MagneMover LITE User Manual

Design Guidelines
Transport System Design
MagneMover LITE User Manual 109
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Single Array 4 Wheel Puck
Single wheeled pucks with four suspension wheels consist of an integrated vehicle with one
magnet array, as shown in Figure 3-32. These wheeled pucks are typically used in MagneMo-
ver LITE transport systems where the material being moved weighs up to 2.5 kg [5.5 lb]. See
Figure 4-35, 4 Wheel Puck Mechanical Drawing, on page 183 for details.

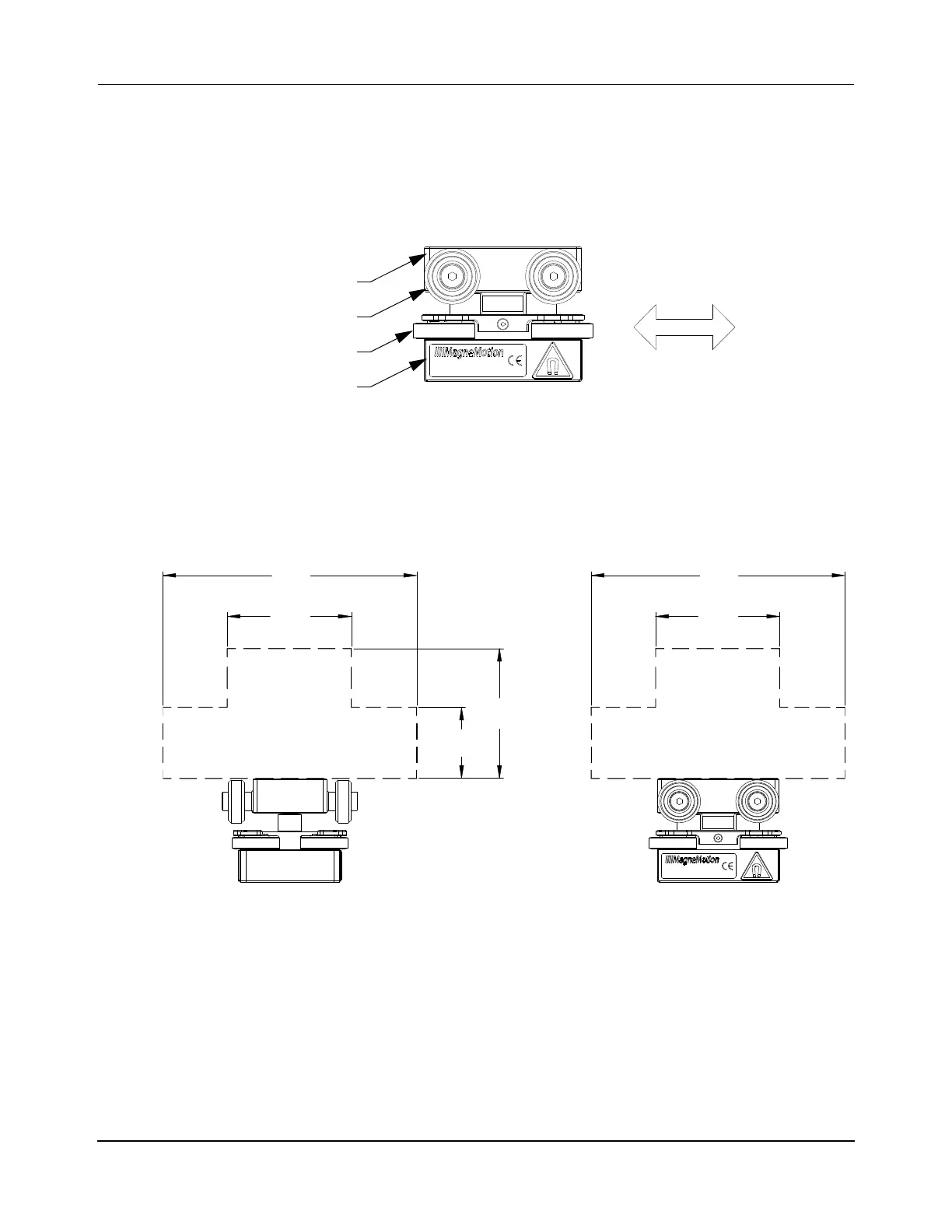

Figure 3-32: Single Array 4 Wheel Puck
For proper operation, the payload on the puck must fit within the payload envelope that is
shown in Figure 3-33. If the payload is within the weight specification but outside the enve-
lope specification that is shown, refer to Puck Limits on page 124 or contact your Motion
Solution Consultant or TechConnect
℠
(rockwellautomation.custhelp.com).
Figure 3-33: Single Array 4 Wheel Puck Payload Envelope
For proper operation, the payload on the puck and the velocity of the puck must fit within the
curve that is shown in Figure 3-34.
DIRECTION OF TRAVEL
Puck Body
Suspension Wheels
Magnet Array
Lateral Guide Wheels
[5.12]
130
[2.62]
66.6
[1.44]
36.5
[2.50]
63.5
[5.12]
130
[2.50]
63.5
