4. Position the support post base 38 mm [1.50 in] from the end of the connector plate on
the post mount as shown in Figure 5-30. Tighten the M8 screws to 26 N•m [230 in•lb]
with a 6 mm Hex wrench.

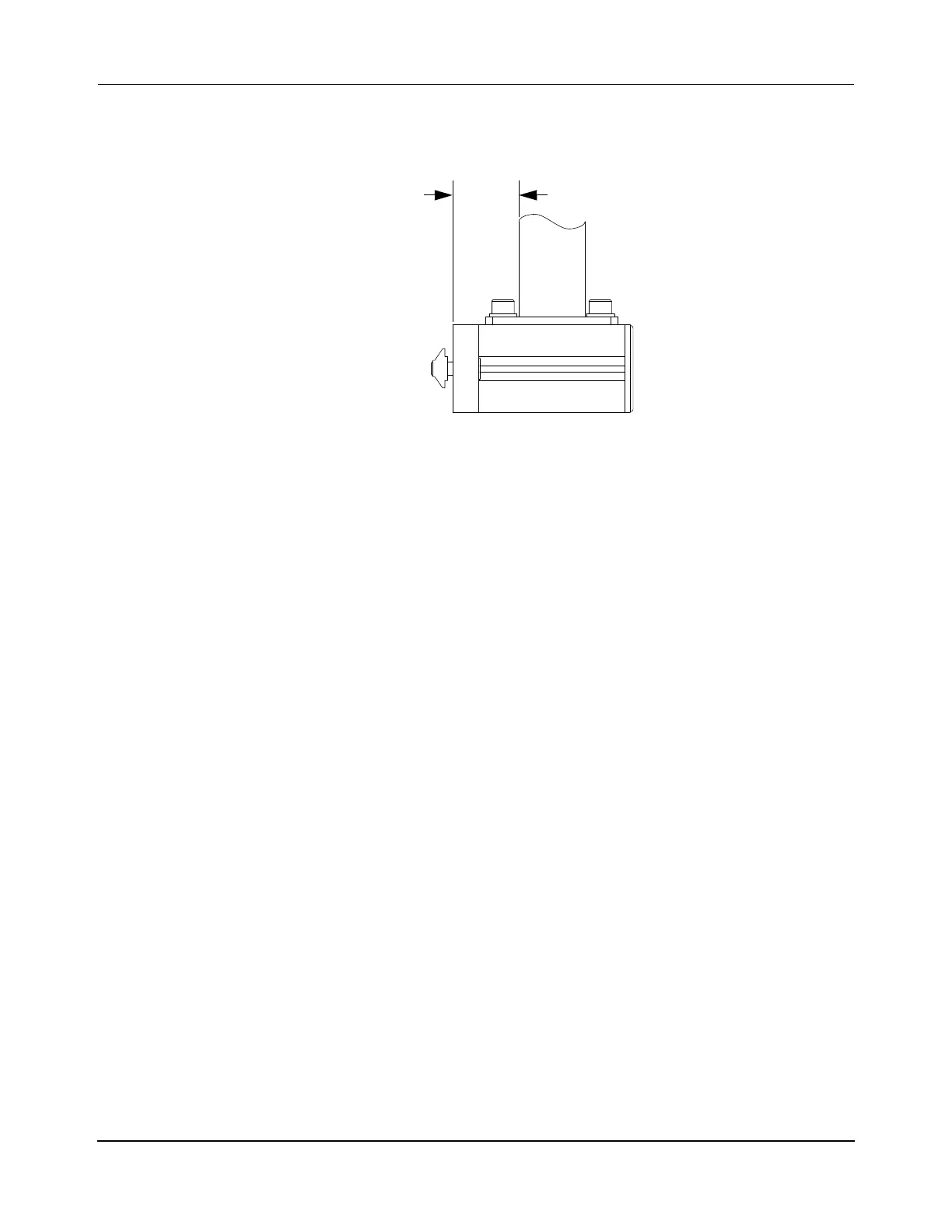

Figure 5-30: Precision Rail Support Post to Post Mount Spacing
38.0
[1.5]
