Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Electrical Specifications
MagneMover LITE User Manual 223
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Precision Rail Lubrication Pump
+9…30V DC, 0.5 A maximum.
See Precision Rail Lubrication System on page 198 for the mechanical drawings.
The optional lubrication pump for use with the Precision Rail option requires a DC power
source, typically +24V DC. This power must be supplied to the pump as shown in
Figure 4-64. See the documentation that is supplied with the pump for configuration and oper-
ating information.

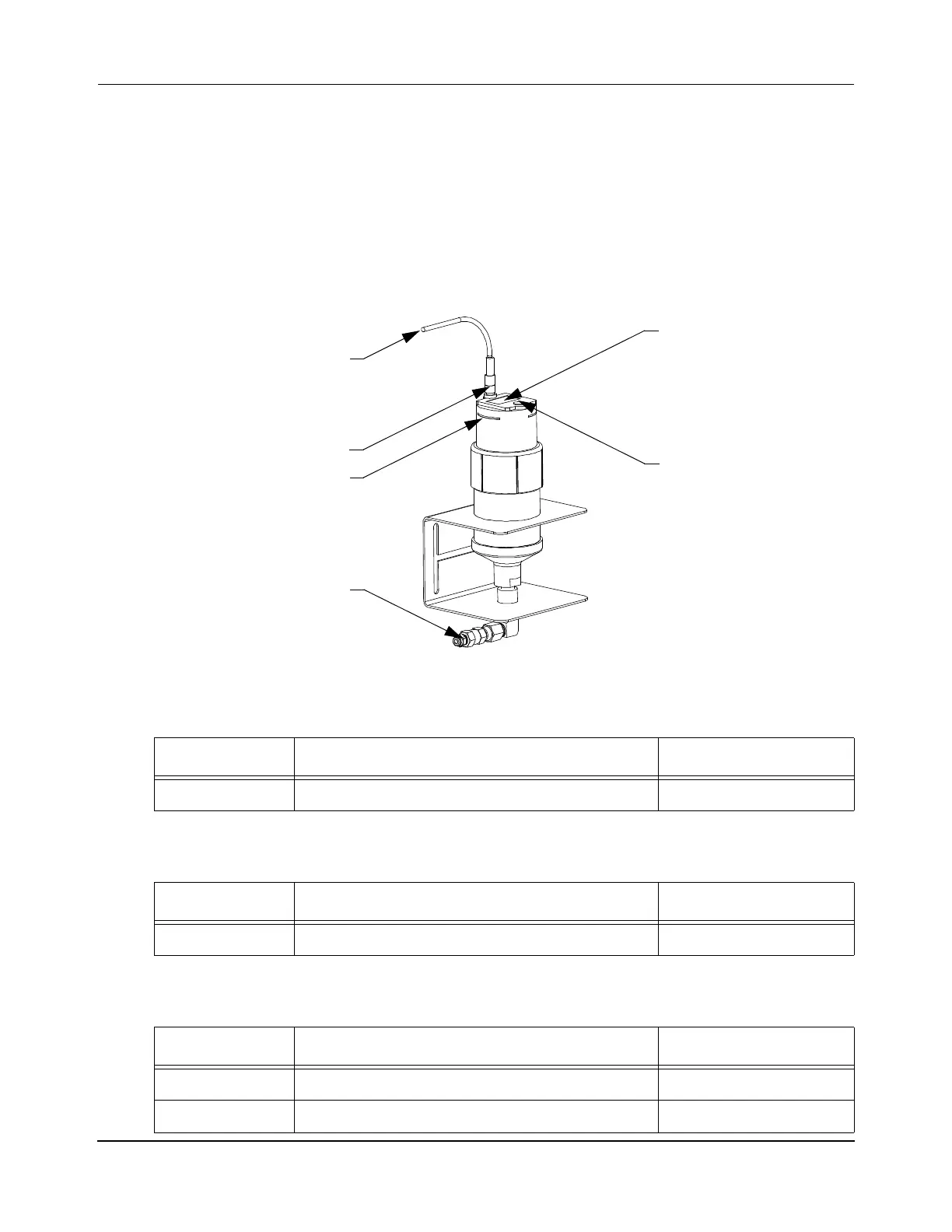

Figure 4-64: Precision Rail Optional Lubricator Pump Connections
Table 4-31: Precision Rail Optional Lubricator Pump Electrical Connections
Label Description Connector Type
— Control M8 Plug
Table 4-32: Precision Rail Optional Lubricator Pump Controls
Label Description Control Type
— Set Button Push button
Table 4-33: Precision Rail Optional Lubricator Pump Indicators
Label Description Indicator Type
—Display LCD
— Status LED
Control Cable
M8 Connector
LCD Display
Set Button
Status Indicator
One-touch Oil Fitting
