Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Mechanical Specifications
186 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Tandem Wheeled Pucks
The tandem wheeled pucks are used on standard MagneMover LITE transport systems with
either aluminum or stainless steel integral rails. Each tandem wheeled puck can carry up to a
10 kg [22.0 lb] load.

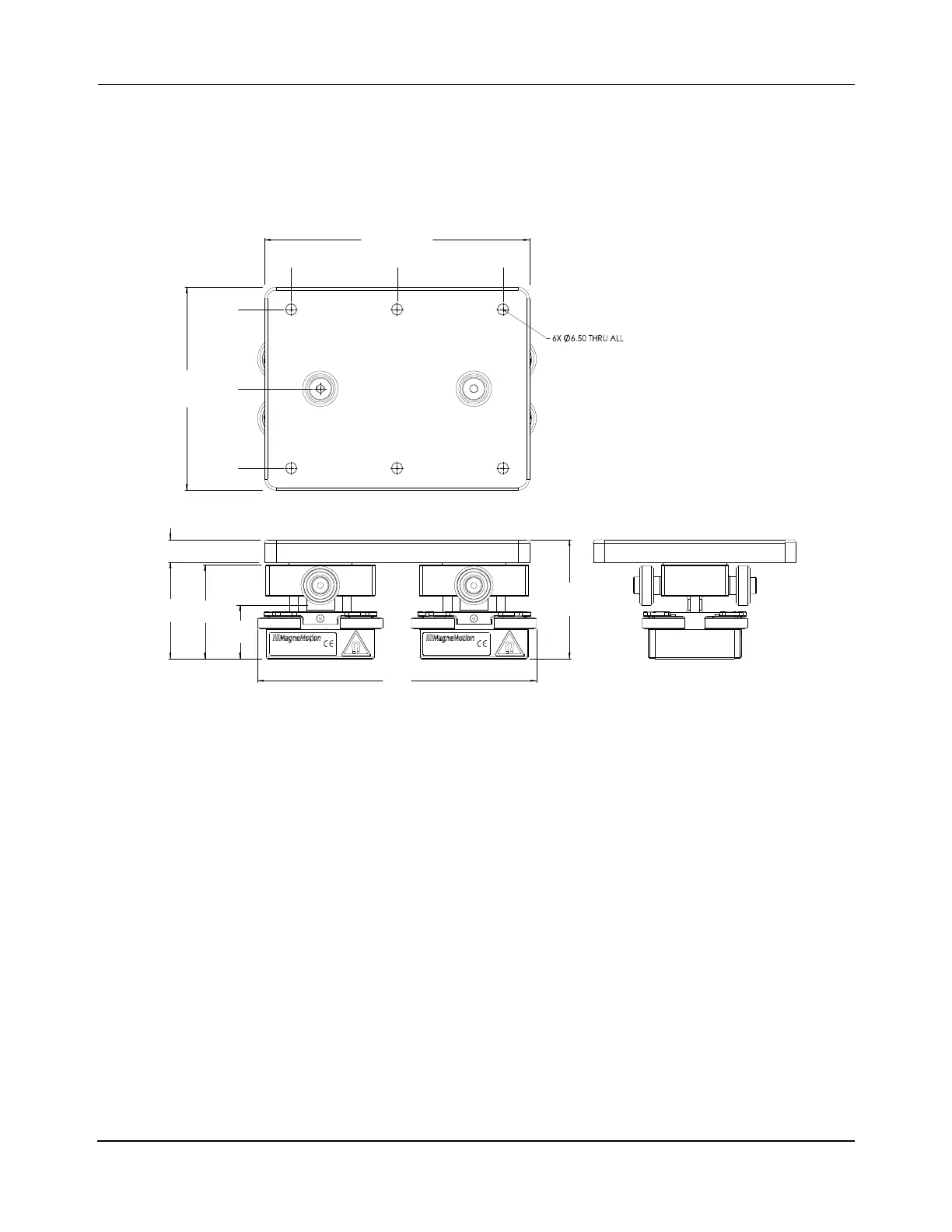

Figure 4-38: Tandem Wheeled Puck Mechanical Drawing
NOTE: Only compatible with the high payload switches (700-1708-62, 700-1708-82).
Exposed Materials
• 7075-T651 Aluminum, Anodized per MIL-A8625, Type III, Class 2, Black.
• 6061-T6 Aluminum, Anodized per MIL-A8625, Type III, Class 2, Black.
• 304 Stainless Steel.
• 174-PH/18-8/304/316/440C Stainless Steel.
• PEEK.
• Polyurethane.
• Igus® L280.
• 316L/316L #2 Stainless Steel.
• UHMW Polyethylene.
0
0
[2.36]
60
[1.77]
45
[1.77]
45
[2.36]
60
158.0
[6.22]
12.7
[0.50]
54.7
[2.15]
53.2
[2.09]
30.49
[1.20]
67.4
OVERALL HEIGHT
[2.65]
[5.91]
150.0
OVERALL LENGTH
[4.53]
OVERALL WIDTH
115.0
C
L
C
L
All Dimensions in Millimeters [Inches]Weight: 1.62 kg [3.6 lb]
700-1740-03
