Precision Rail Option
Precision Rails

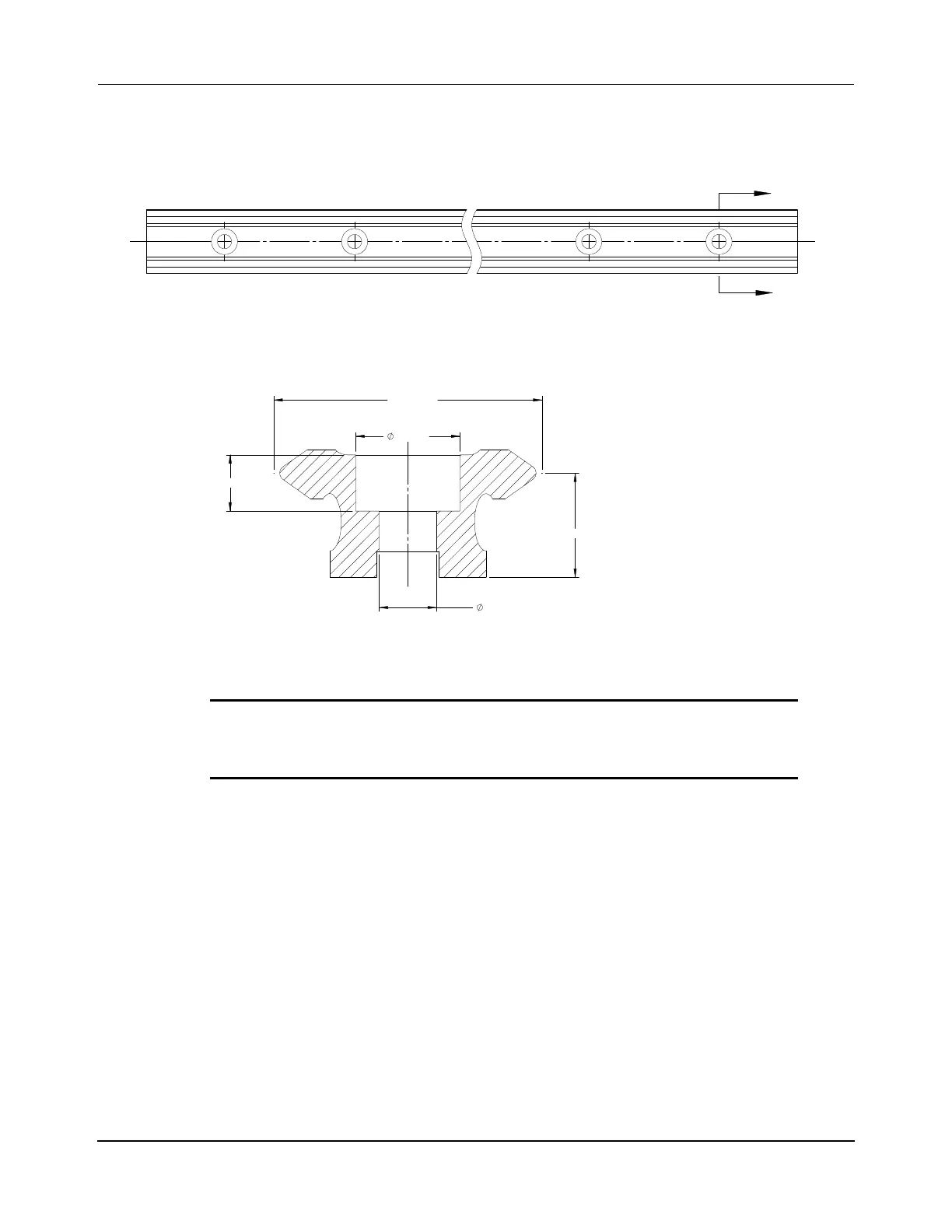

Figure 4-41: Precision Rail Mechanical Drawing
Exposed Materials
• 420 Series Stainless Steel or High Carbon Steel.
NOTICE The precision rails must always be lubricated with a thin
coating of oil to provide proper operation and environmental
protection.
25.74±0.025
10.0±0.025
THEORETICAL
APEX
C
L
A
A
THEORETICAL
APEX
5.4±0.1
10.0±0.1
5.5±0.1
All Dimensions in Millimeters
