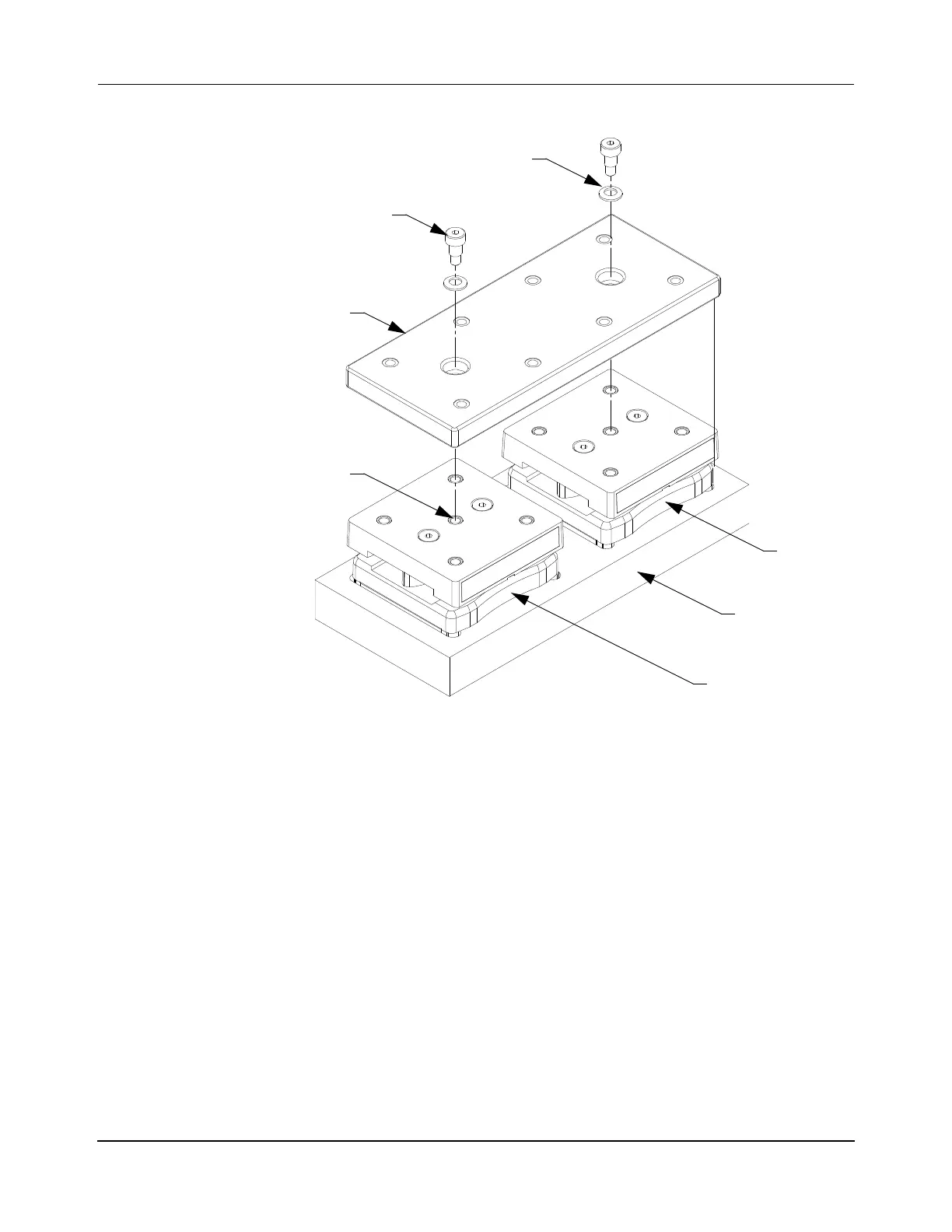

Figure 7-24: Attach Tandem Glide Puck Linkage Plate Assembly
7. Remove the Tandem Glide Puck Assembly from the fixture and reinstall on the MM
LITE transport system (see Replace Pucks on page 399).
If the tandem puck is not being reinstalled on the transport system, store it in its origi-
nal packaging or wrapped in bubble-wrap to help protect the puck and to minimize any
safety risks.
Linkage Plate
Installation
Fixture
Puck
Puck
M4 Shoulder Screw
(2X)
Belleville Spring Washer
(2X)
2-3 Drops Loctite
(typical)
