Installation
Transport System Installation
250 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

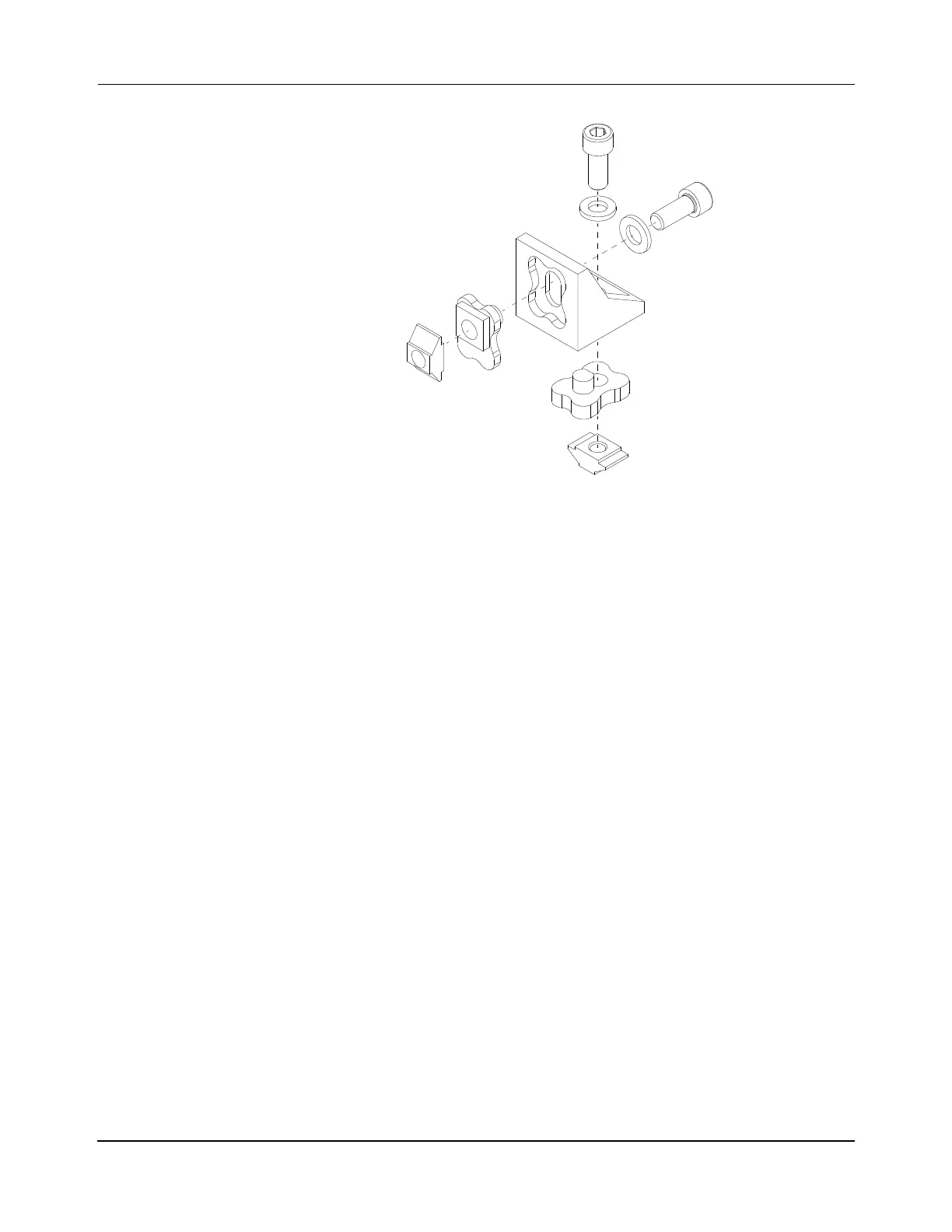

Figure 5-4: Angle Bracket Assembly
E. Make sure that the leg is properly positioned and tighten the M8 screws to
26 N•m [230 in•lb] with a 6 mm Hex bit.
The Loctite must cure for 2 hours at 22° C [72° F] before using the transport
system.
4. Verify that all legs are perpendicular to the beams using a machinist square.
5. Once the stand assembly is complete, make sure that the transport system is properly
located.
