Installation
Transport System Installation
280 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Switches

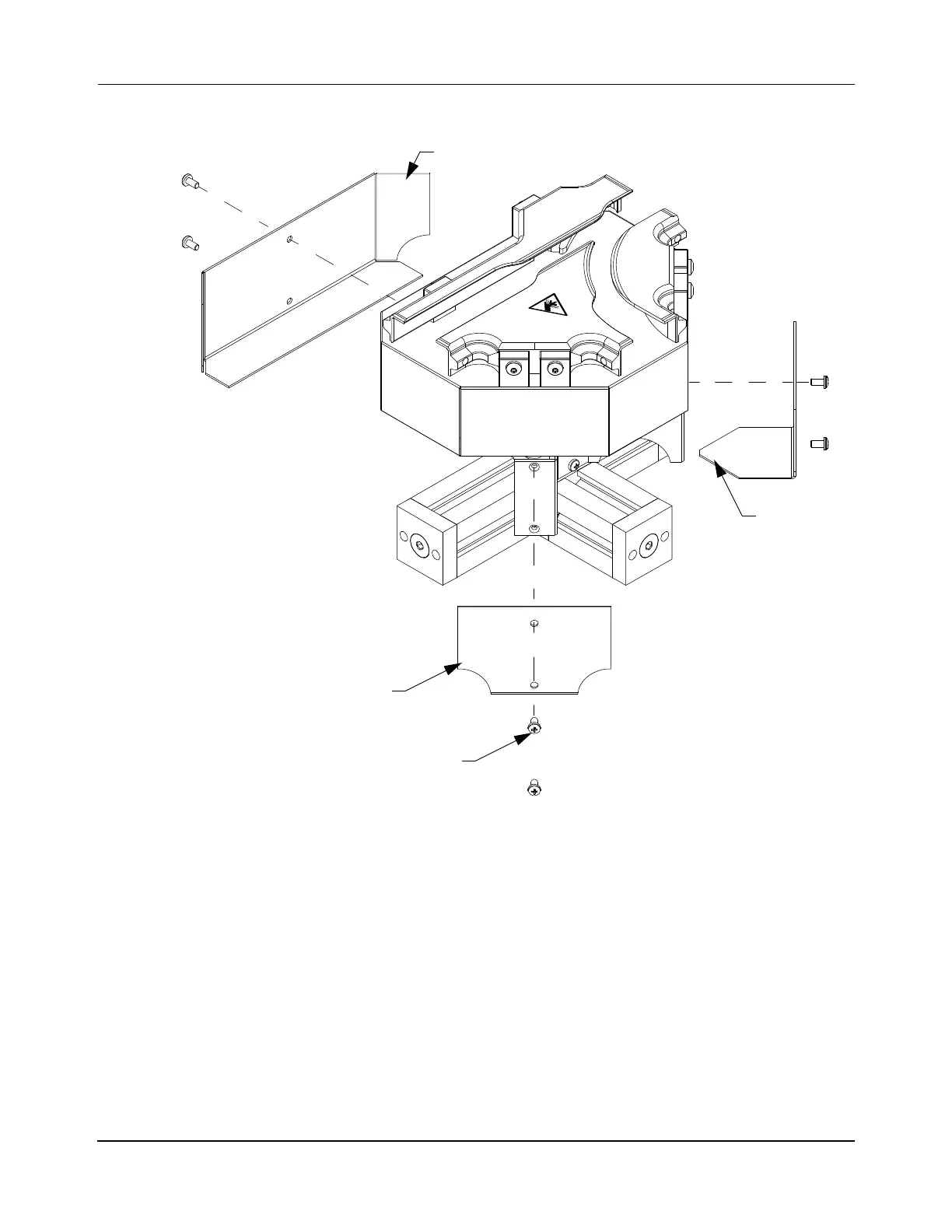

Figure 5-27: Installing Switch Cable Chase Covers
1. Locate an outer switch cover against the bracket on the outside of the switch.
2. Install two M5 x 8 mm screws to secure the cover.
3. Locate two inner covers against the bracket on the inside of the switch.
4. Install two M5 x 8 mm screws each to secure each cover.
5. Tighten the six M5 screws to 1.6 N•m [14 in•lb] with a Phillips bit.
Outer Cover
Inner Cover
M5 Screw
Inner Cover
(6X)
