12.3.17)Check of V-belt tension
See Pic. 53 and 54.
At configuration with additional external alternator, check attachment and V-
belt tension.
For adjustment of the V-belt tension, loosen the hex. screw Q M10 and the
two Allen screws W and E. Push alternator upward and tighten Allen screw
E. Then tighten the screws Q and W.
Thighten screws M8 to 22 Nm (195
in.lb), and screw M10 to 35 Nm
(310 in.lb).

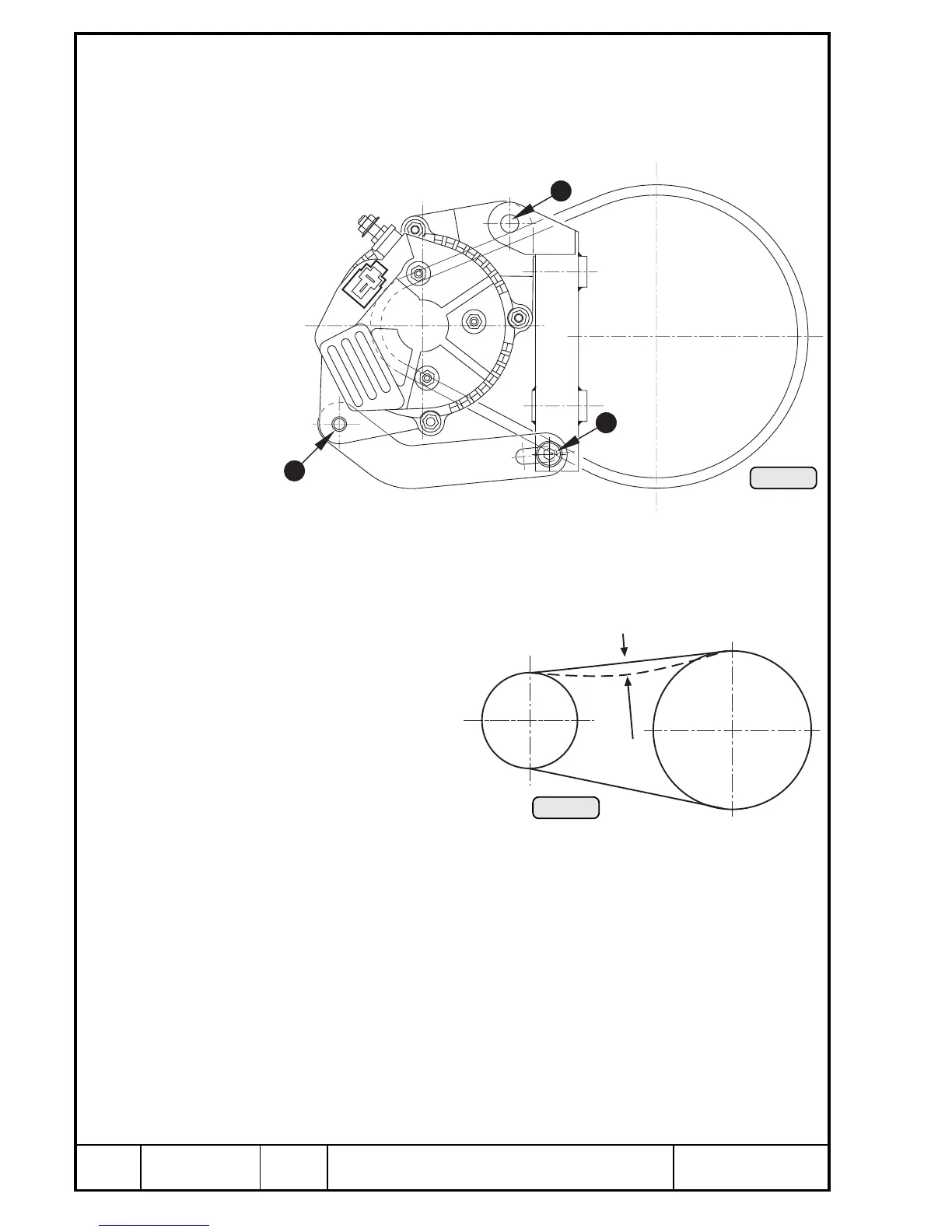

Check V-belt tension as per
drawing beside.
F = 50 N
6 mm
Pic. 53
3
1
2
Pic. 54
00185
00186
