ReferenceModification no.
- 0 -
Page
177
Date
1997 02 01
Main
914 F
01478
13.4.12)Dismantling of ignition electric set
See Pic. 141,142.
â—† NOTE: Before removal, mark all 8 ignition cables resp. check the
correct application of the marking sleeves Q-W-E-R of
cylinders no. 1 through 4, to avoid mix-up at reassembly.
Cut the cable straps A of the lower spark plug connectors and pull ignition
cables through the cylinder heads. If necessary, push off the 2 protection
hoses T for the lower ignition cables.
Remove Allen screw M5x25 Y for the electronic modules U and tilt modules
sideways from the engine. Remove hex. screw M6x16 I and lock washer
from intake manifold and the ground cables O from both electronic modules
and P from the 4 ignition coils as well as the ground
cable of the trigger coil cable assembly S. Pay atten-
tion to the correct connection between electronic
modules and ignition coils.

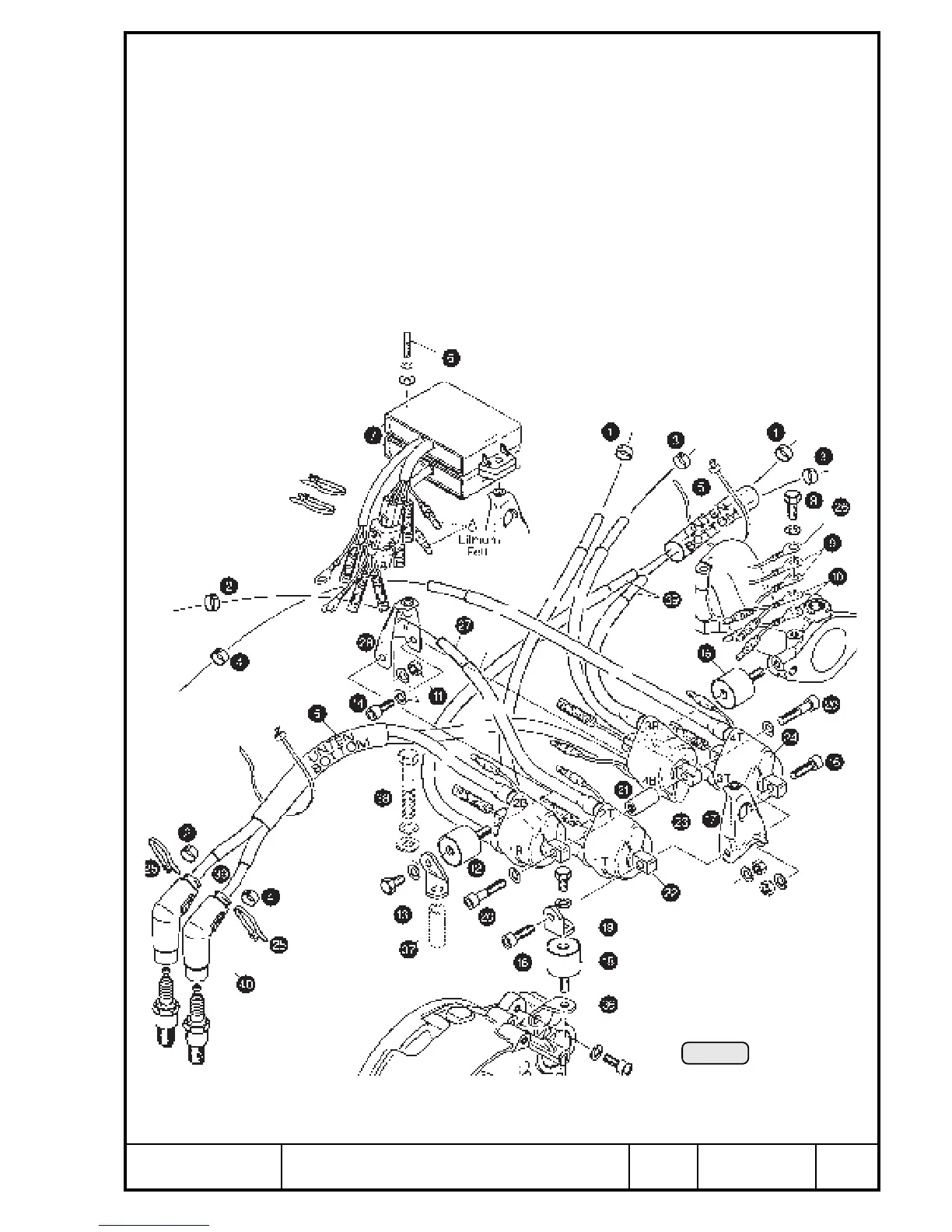

Pic. 141
00406
