Reference Modification no.
- 0 -
Page
160
Date
1997 02 01
Main
914 F
01478
13.3.9) Fitting of ignition housing

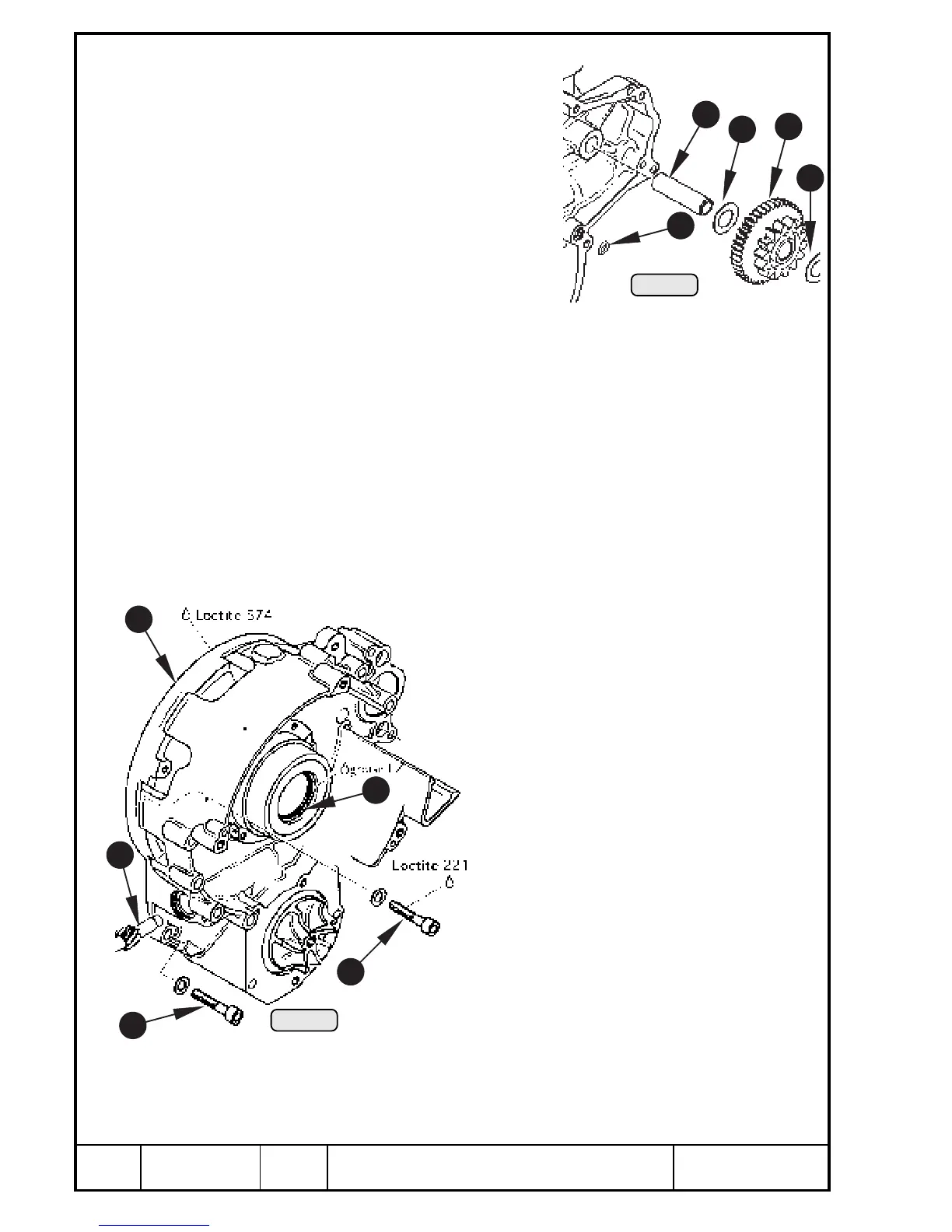

See Pic. 122 and 123.
If the idle gear W for electric starter has
previously been removed, place thrust
washer Q 12,5/21,5/1 onto the crank-
case. Place idle gear into position and
lubricate idle gear shaft E with motor
oil (see Chapter 13.2.10) and insert it.
Place thrust washer R 12,5/21,5/1 on
top.
Place O-ring 5x2 T into crankcase
and fit guide sleeve, part no. 877 360,
for oil seal onto the crankshaft.
â– ATTENTION: Without using the guide sleeve, part no. 877 360, the oil seal
will be damaged by the keyway in crankshaft.
Apply LOCTITE 574 sealing compound on the sealing face Y of pre-
assembled ignition cover, apply multi-purpose grease LZ or equivalent
grease onto oil seal U (see Chapter 11.7.3), fit it and turn water pump to
engage in the teeth. Tighten ignition cover with 7 Allen screws M6x30 I and
lock washers evenly to 10 Nm (90 in.lb.).
â—† NOTE: The Allen screw O M6x30 reaches into the oil compartment
and must be sealed with LOCTITE 221.
P = drive shaft for mechanical rev. counter.
5
3
1
2
4
Pic. 122
Pic. 123
6
7
10
8
9
00390
00391
