Rotax 914 F - 1) Disassembly; 2) Checking of the Components; 4) Servo Cable, Rope Sheave and Spring for Waste Gate Control

Reference
TM 914-08
Modification no.
- 1 -
Page
194
Date
1998 07 01
Main
914 F
01479
13.5.4) Servo cable, rope sheave and spring for waste gate control

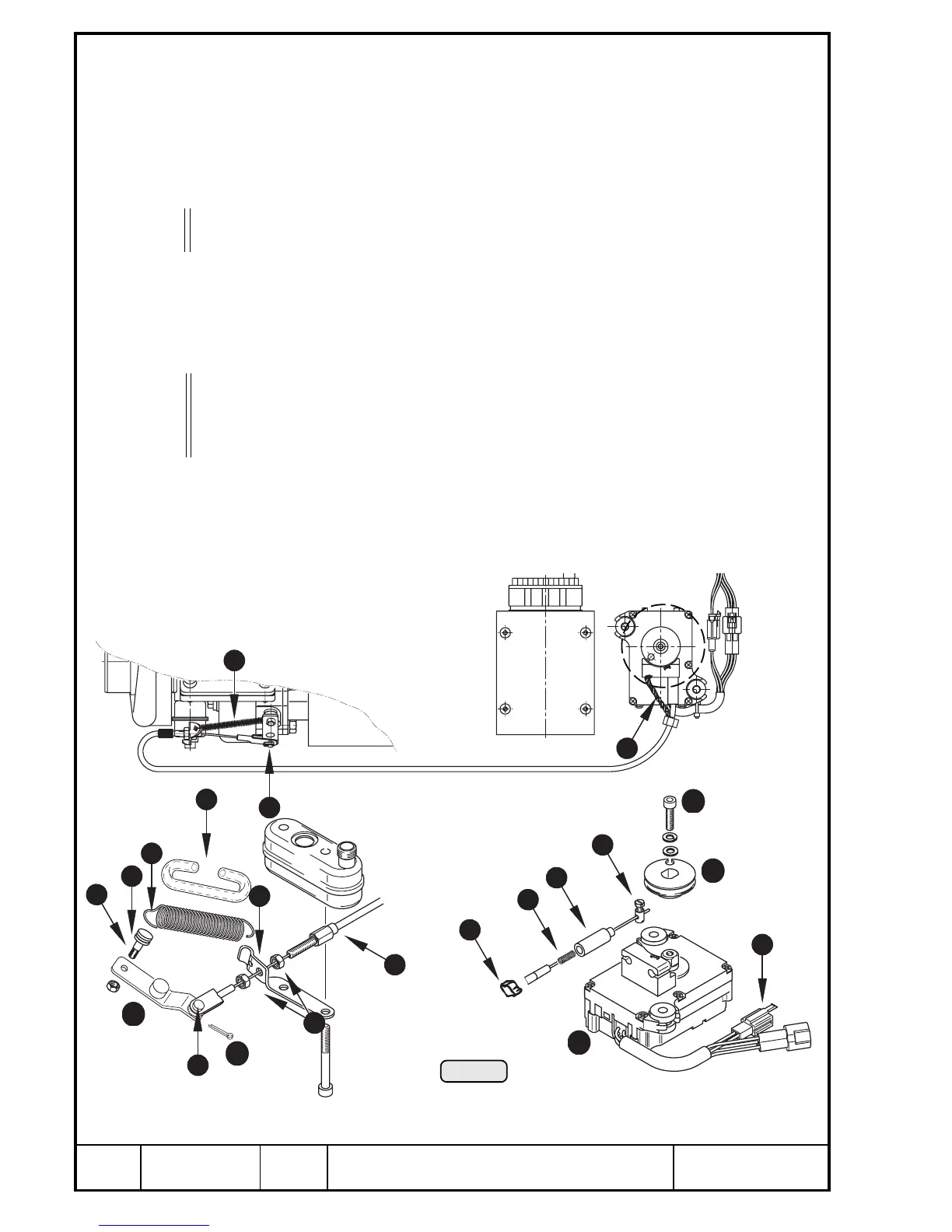

See fig. 154
13.5.4.1) Disassembly
Remove tension spring Q by using a suitable tool and sever securing wire W.
Loosen set screw of nipple E and pull out servo cable from the cable retainer R.
Take note of the loose compression spring T 5,5/1,2/16,9. Remove this
spring and store it in a safe place.
Remove cotter pin Y and pin U from waste gate lever I.
Now the wire rope can be pulled out from the conduit.
If required take off rope sheave O after removal of the Allen screw P M5 x 20
along with spring washer and washer.
13.5.4.2) Checking of the components
Visual inspection of all components. Check servo cable for easy movement.
■ ATTENTION: Renew servo cable if damaged. Refer to section 12.3.6).
Check spring engagement holes { for wear.
02618
fig. 154
7
10
8
9
12
A
14
5
15
7
11
1
11
6
1
2
3
4
17
13
16
18
6
