Reference
Modification no.
- 0 -
Page
228
Date
1997 02 01
Main
914 F
01480
14)Maintenance of components
14.1) Electric starter

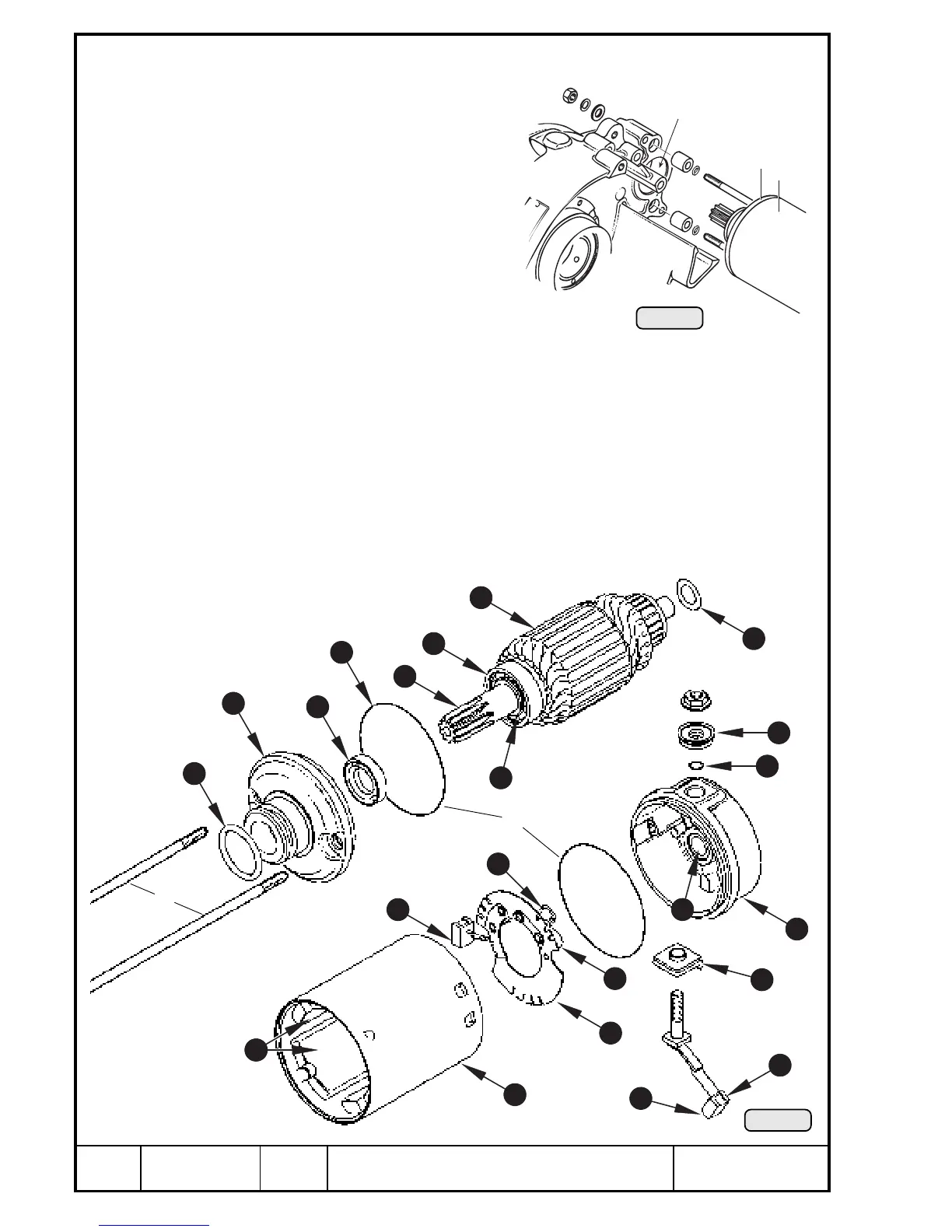

See Pic. 197.
Remove 2 hex. nuts M5 Q and lock washers
W from crankcase side of ignition housing.
By loosening the strap clamp the electric
starter E can be removed. The electric starter
is kept in position by 2 distance sleeves R
and O-rings T.
â—† NOTE: When withdrawing the
electric starter from the ig-
nition housing, hold sup-
porting flange together with the starter housing and commutator
bearing, to prevent the carbon brushes from jumping off the commu-
tator.
14.1.1) Electric starter — disassembly
See Pic. 198.
Remove supporting flange Q from starter housing W. Withdraw commutator
bearing E from starter housing and remove carbon brush holder R together
with springs from armature T. Withdraw armature and thrust washer Y from
starter housing. Clean parts carefully (see Chapter 11.7).
1
2
3
6
5
7
4
8
9
10
Pic.197
Pic. 198
1
10
5
20
6
17
19
1
19
3
2
p
12
11
17
18
4
14
14
15
16
21
13
y
00230
00231
