Rotax 914 F User Manual

Reference Modification no.
- 3 -
Page
208
Date
1999 01 01
Main
914 F
01479
13.6.1.6) Checking of the throttle position

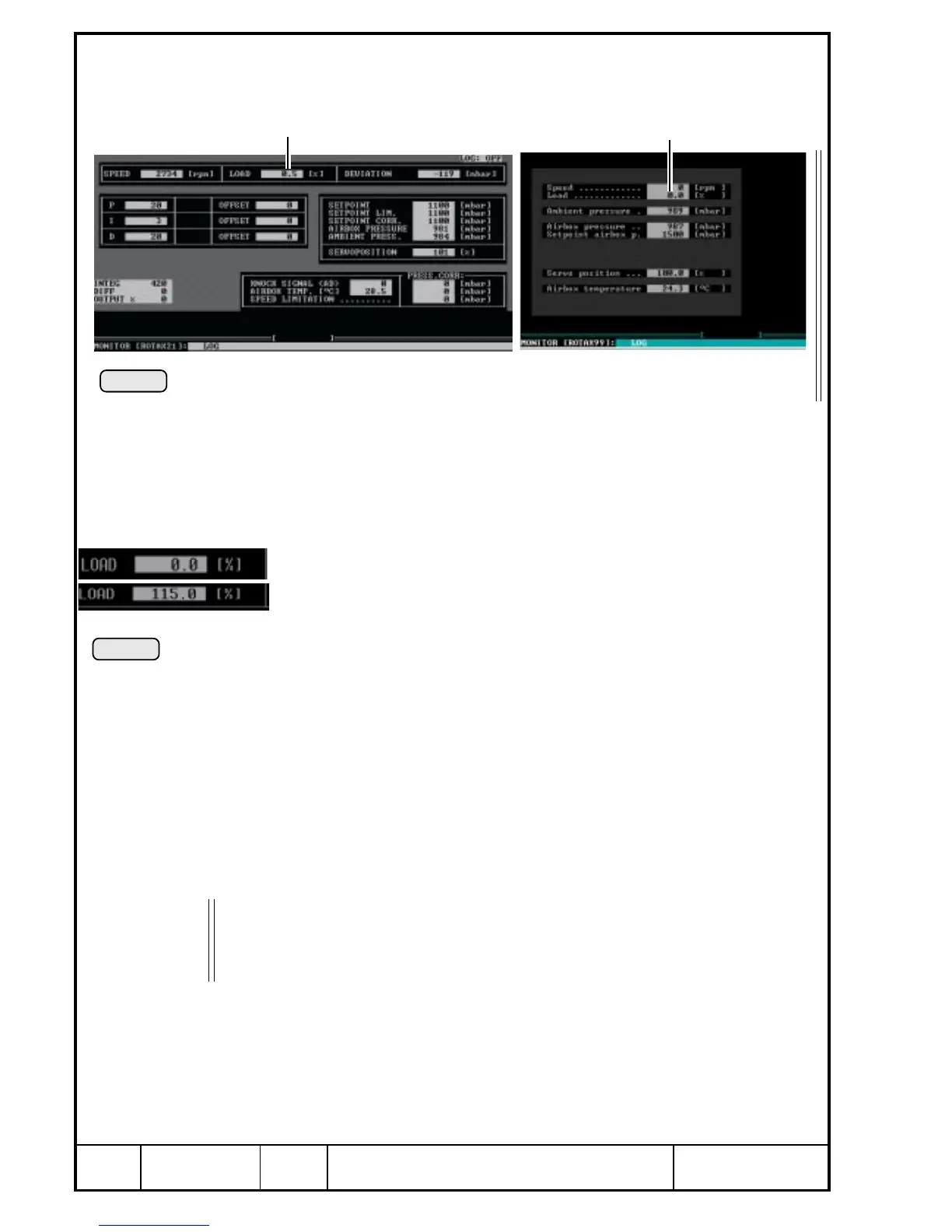

See Pic. 172 and 173.
➪ Start-up of the sub program MONITOR.
00214
00215
Pic. 173
Throttle position is displayed in the middle of the top line Q (carb 2/4)
0 % ➪ throttle completely closed
115 % ➪ throttle fully open
➪ visually check whether the throttle on both carburetors can be fully opened
and closed. If necessary correct the installation setting.
➪ check of the display with throttle completely closed:
nominal: 0° tolerance +3%
➪ check of the display with throttle fully open:
nominal: 115 % tolerance -2%
■ ATTENTION: Check whether indication is linear over the complete
range from 0% to 115% i.e. the 115% position is not indi-
cated before throttle is fully open.
➪ Check of the display at max. continuous power.
■ ATTENTION: Throttle lever must be in positive stop position.
nominal: 100 % tolerance +3%.
▲ WARNING: This check of position is only meaningful and allowed, if
idle- and full throttle-position are within the allowance vari-
ation.
If the throttle position for idle and full throttle are not within the allowance or
if not proceeding linear, then a new calibration of the throttle position is
absolutely necessary. Recalibration exclusively by an authorized ROTAX-
Dealer or his Service Center if the TCU is of part no. 966.470.
If TCU 966.741 is used than proceed with calibration as per the following
section.
00445
Pic. 172
03066
Program version TLR V4.3A Program version TLR V4.6A
Q
Q
