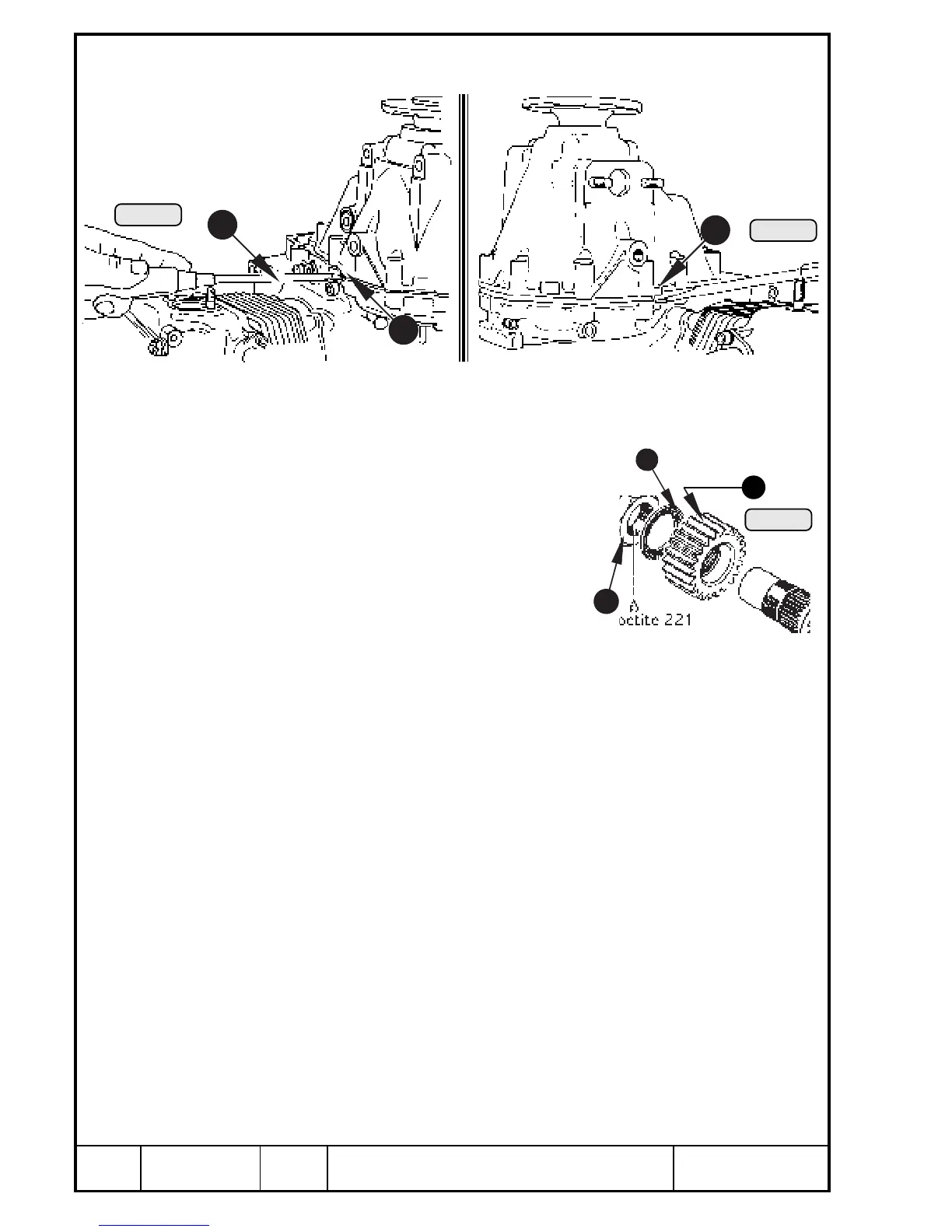

When the gearbox is loosened, it can be removed with 2 screwdrivers Q levering on
the lugs W provided on the gear cover.
â– ATTENTION: When removing the gearbox, take care not to damage the bearing
seat and the oil ring contact surface of propeller shaft.
Remove hex. nut M30x1,5 E with wrench 41 a/f, part no. 877 445, and the drive gear
with friction washer R from crankshaft. If required, lever
drive gear gently off with 2 screwdrivers.
â—† NOTE: The hex. nut with left hand thread!
Make sure that both dowels remain with crankcase and
not with gear cover.
â– ATTENTION: The gear set has a continuous 6-digit
serial number which is shown on drive
gear front side T and on dog gear.
The gears are paired as a set and must
not be exchanged individually.
