Reference
Modification no.
- 0 -
Page
49
Date
1997 02 01
Main
914 F
01476
The electric system comprises the internal generator with the charging coils for the
ignition and the ignition electrics with the electronic boxes and the 4 double ignition
coils.

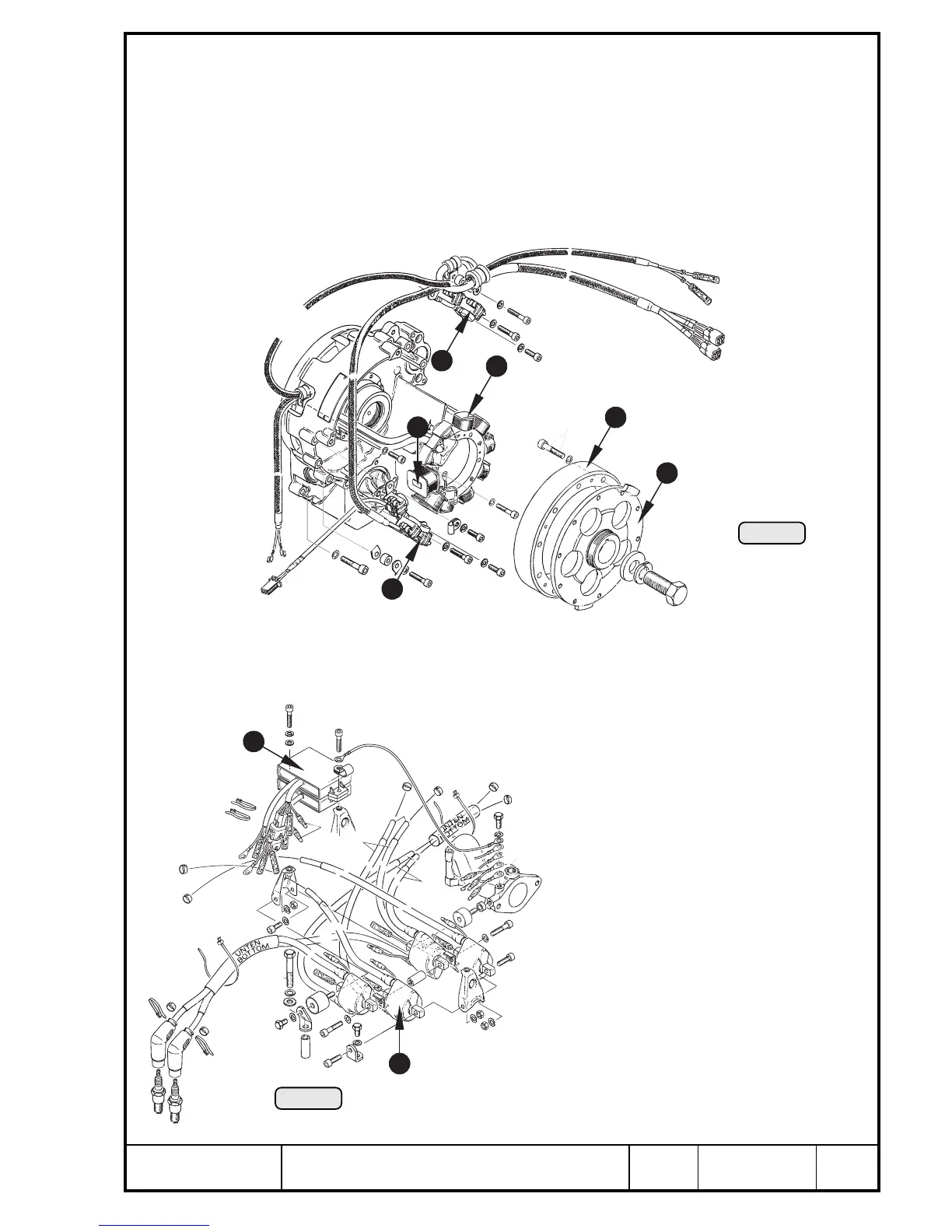

➪ Internal generator: See Pic. 22.
Consisting of stator with 8 lighting coils Q and the 2 independent working ignition
charging coils W and the ten pole magneto ring E.
The magneto ring is attached on flywheel hub R with trigger cams.
The 4 trigger coils T are fitted externally on generator.
➪ Ignition electrics : See Pic. 23.
The ignition-electrics comprise the 4 double ignition coils Q and the two electronic
modules placed above W, and is supported vibration-damped on 3 silent blocks.
The 3-point suspension is with one each
support on crankcase, ignition housing
and intake manifold. For safety reasons,
the ignition electrics must not be exposed
to ambient temperatures higher than 80°C
(176°F).
1
2
7
4
3
5
Pic. 22
Pic. 23
1
2
00133
00134
