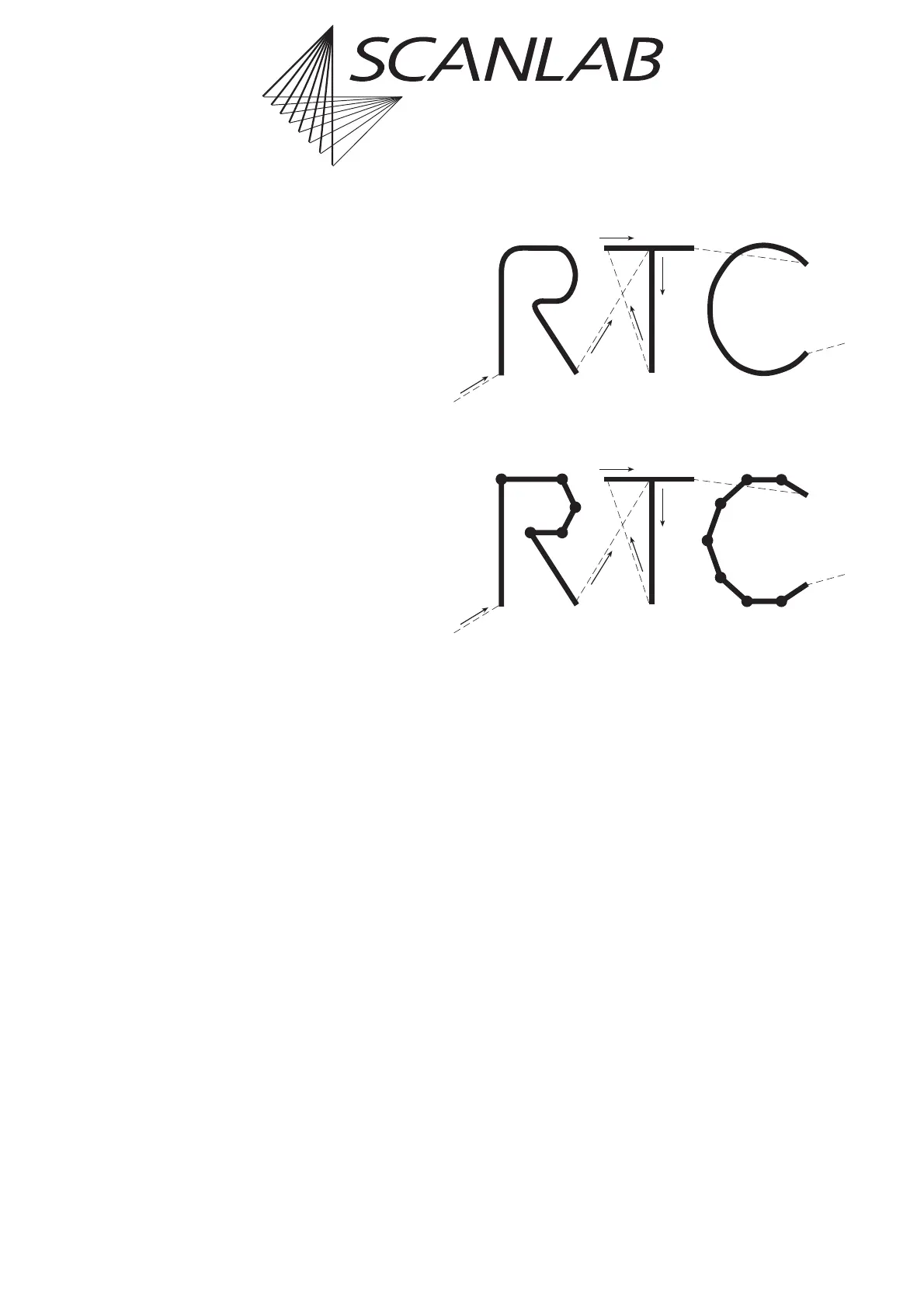

Polygon Delay too short
The subsequent mark command
in a polyline is already executing,
although the mirrors have not yet
reached the end position of the
preceding mark vector.
The corners of the polyline are
rounded off.
Polygon Delay too long
If the polygon delay is too
long, the mirrors are moving
too slowly or are even
stopping between subse-
quent mark commands.
Since the laser is not turned
off between these vectors,
burn-in effects occur.
In the variable polygon delay
mode, a maximum length
(“edgelevel“) can be defined.
See page 104 for details.
