15.2 Layout and Interfaces
15.2.1 Connectors and Jumper Posi-
tions

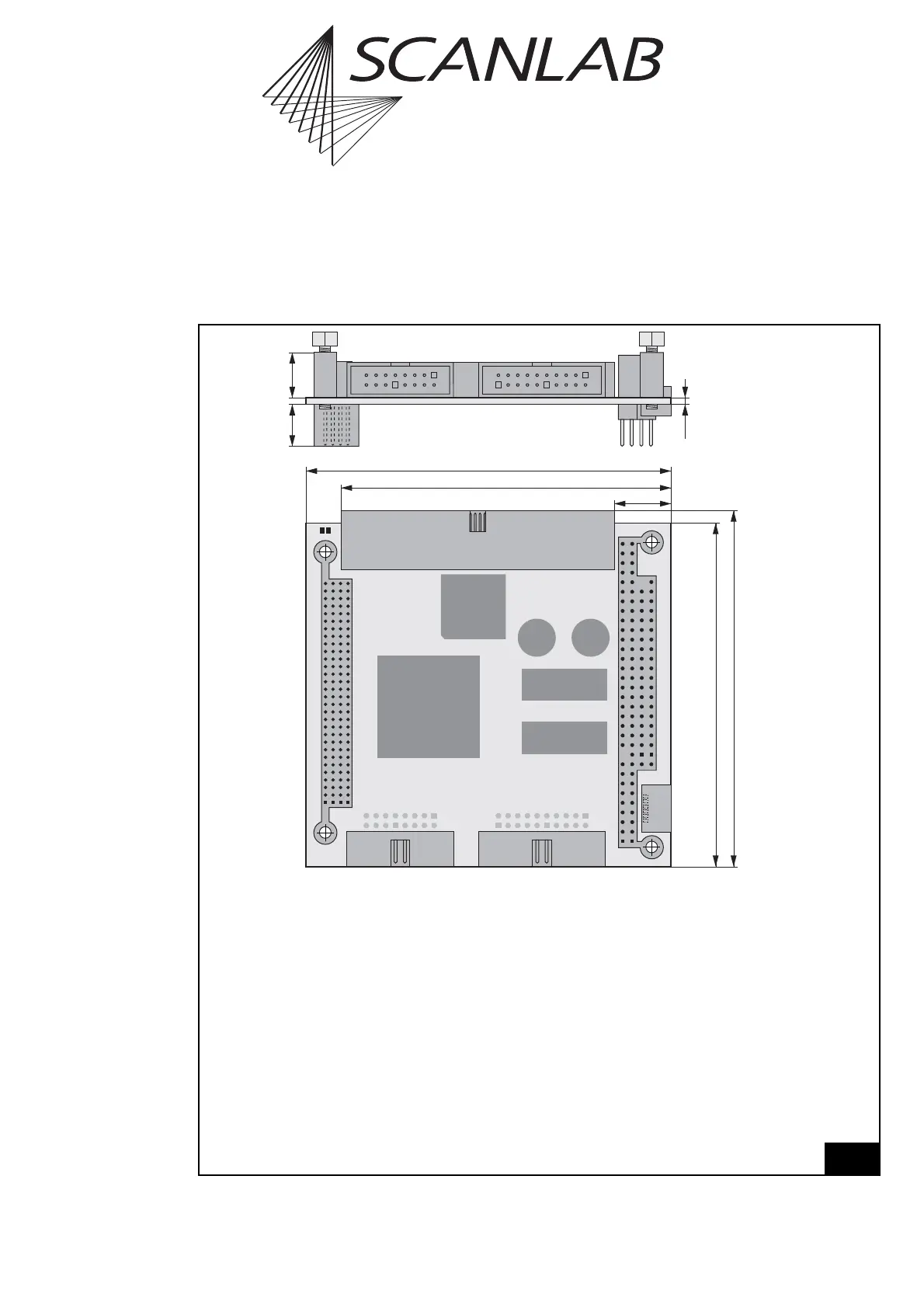

Figure 61 and figure 62 on page 578 show the posi-
tions of the connectors and jumpers on the front and
back side of the RTC
®
5 PC/104-Plus board. All
connectors and jumper settings are described in
detail in the following sections.
93.5
95.89
90.17
86.7
14.9
LASER
1
J9J8
J3
D30 C30
B30
A30
D1
C1
B1
A1
ISAPCI
SCANHEADS
JP19
J7
J6
SLAVE
MULTI
J1
A1 B1 B32
A32
D0 C0
D19 C19
1.7
11.2 13.6
1
2
1
2
61
Legend
SCANHEADS . . Primary and secondary scan head connection (20-pin box header, double-row, 2.54 mm
pitch, pin-out page 579); secondary scan head control is only optionally activated.
LASER . . . . . . . Laser connection and digital and analog output ports (16-pin box header, double-row,
2.54 mm pitch, pin-out page 580)
MULTI . . . . . . . Multifunction connector with a 16-bit digital input, a 16-bit digital output, an 8-bit digital
output, encoder inputs for Processing-on-the-fly applications, etc. (100-pin box header,
double-row, 1.27 mm pitch, pin-out page 580)
PCI . . . . . . . . . PC/104-Plus PCI bus (120-pin female connector, quad-row, 2 mm pitch, see page 579)
ISA . . . . . . . . . PC/104 standard 8-bit ISA bus and 16-bit ISA bus
(104-pin female connector, 32 x 2 + 20 x 2 Pins, 2.54 mm pitch, see page 579)
SLAVE . . . . . . . 6-pin SLAVE connector (see "Master/Slave Synchronization", page 579)
JP19 . . . . . . . . Jumper for setting whether the board’s +5 V supply voltage is supplied at the PCI or
ISA bus (see page 585)
Layout and dimensions of the RTC
®
5 PC/104-Plus board (top: side view, bottom: front side)
