VISOR
®
Communications manual

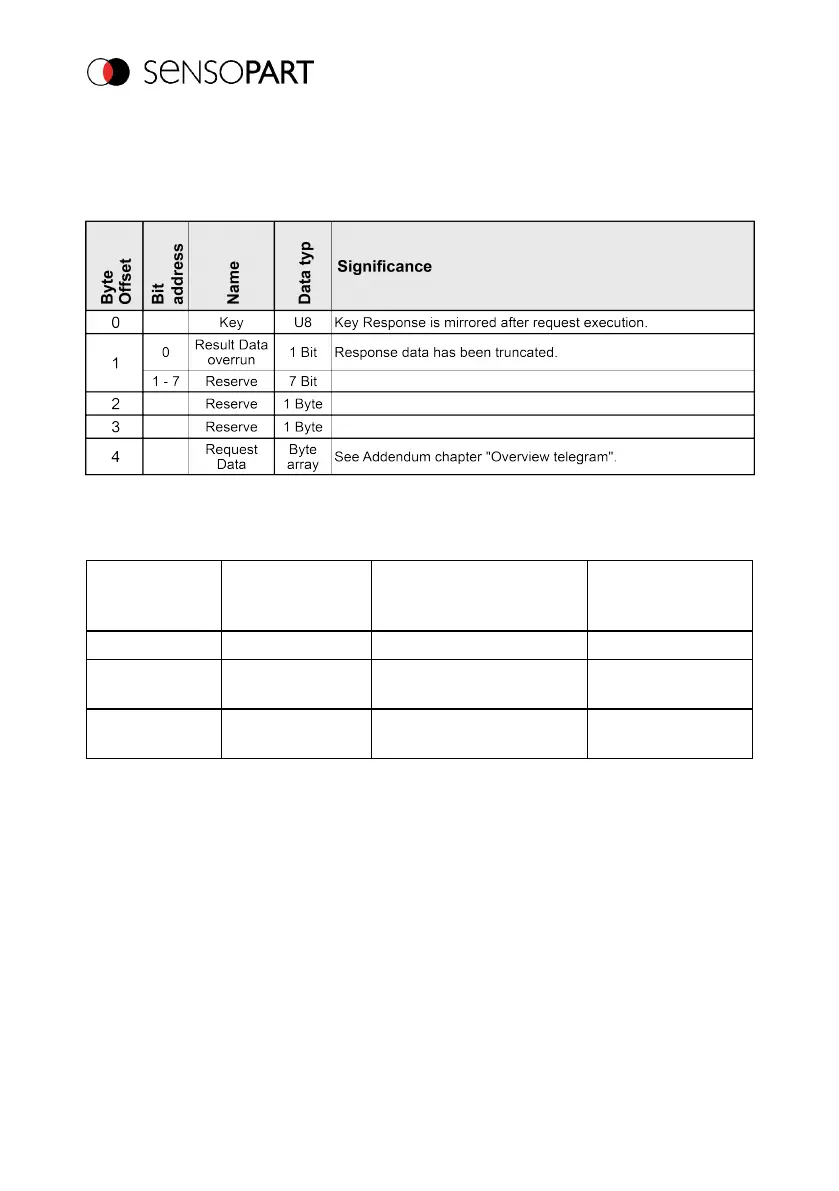

6.5 Module 5: "Response" (from controller to VISOR
®
)
Name in PLC "RESP (4 + 8 / 16 / … bytes)"
6.6 Start / end criteria for each telegram
Telegram
("Control"
module)
Start condition
("Status"
module)
Acceptance confirmation
("Status" module)
Execution
confirmation
("Status" module)
Trigger Ready = True Trigger acknowledge = True Image ID changed
Change Job /
Change Job acknowledge =
True
Job number changes
Switch-to-Run
Operation Mode =
False
Switch-to-Run acknowledge
= True
Operation Mode =
True
Page 35 EN 06814859 - 1/24/2019-00
