Sensopart Visor - 10 EtherNet;IP; 10.1 Rockwell CompactLogixTM configuration example; 10.2 Rockwell Studio 5000 configuration example

VISOR
®
Communications manual
10 EtherNet/IP
This section explains how to operate the VISOR
®
vision sensor with EtherNet/IP.
10.1 Rockwell CompactLogix
TM
configuration example
Following is a description of the PLC settings required for data transfers between the VISOR
®
vision sensor and the PLC via EtherNet/IP (using Rockwell CompactLogix
TM
as an example).
10.2 Rockwell Studio 5000 configuration example
This description shows all PLC screenshots in English; switch the Rockwell software to English if
necessary.
10.2.1 Create new project
Create the project in: Create/New Project.

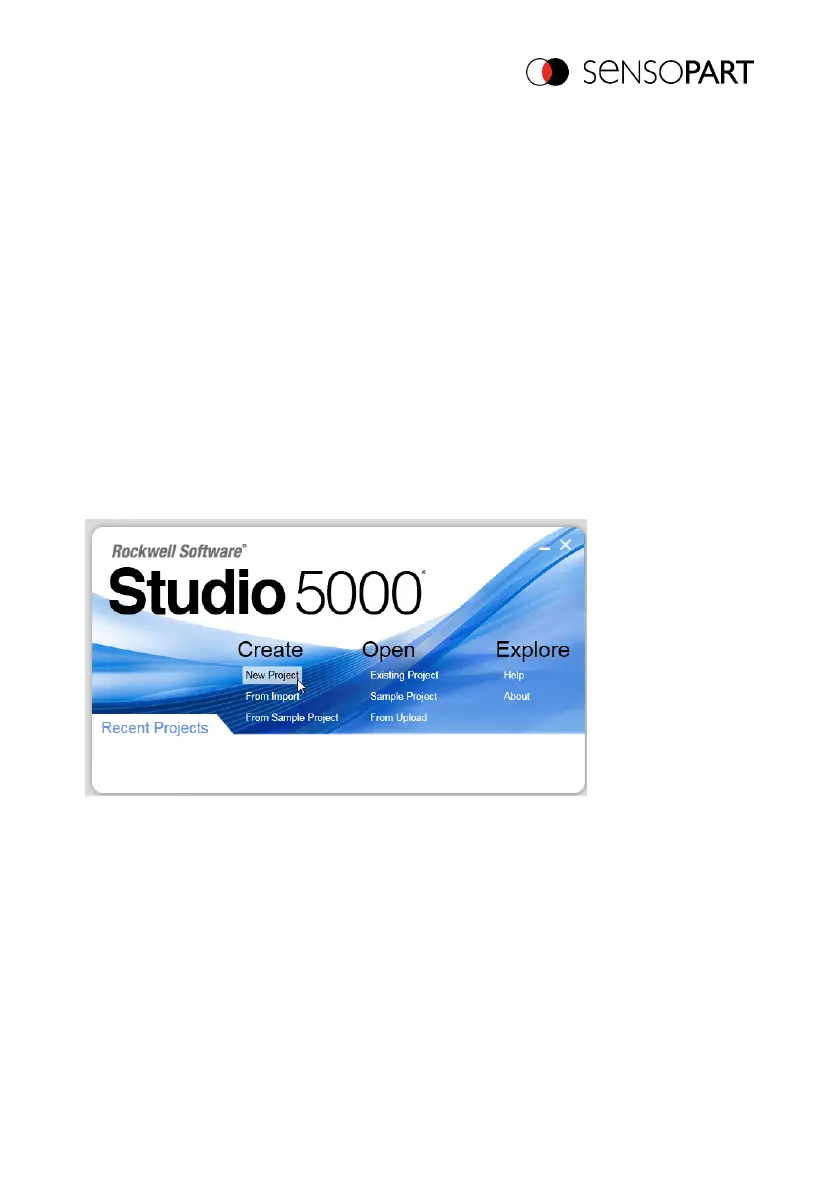

Fig. 51: EtherNet/IP Create new project
